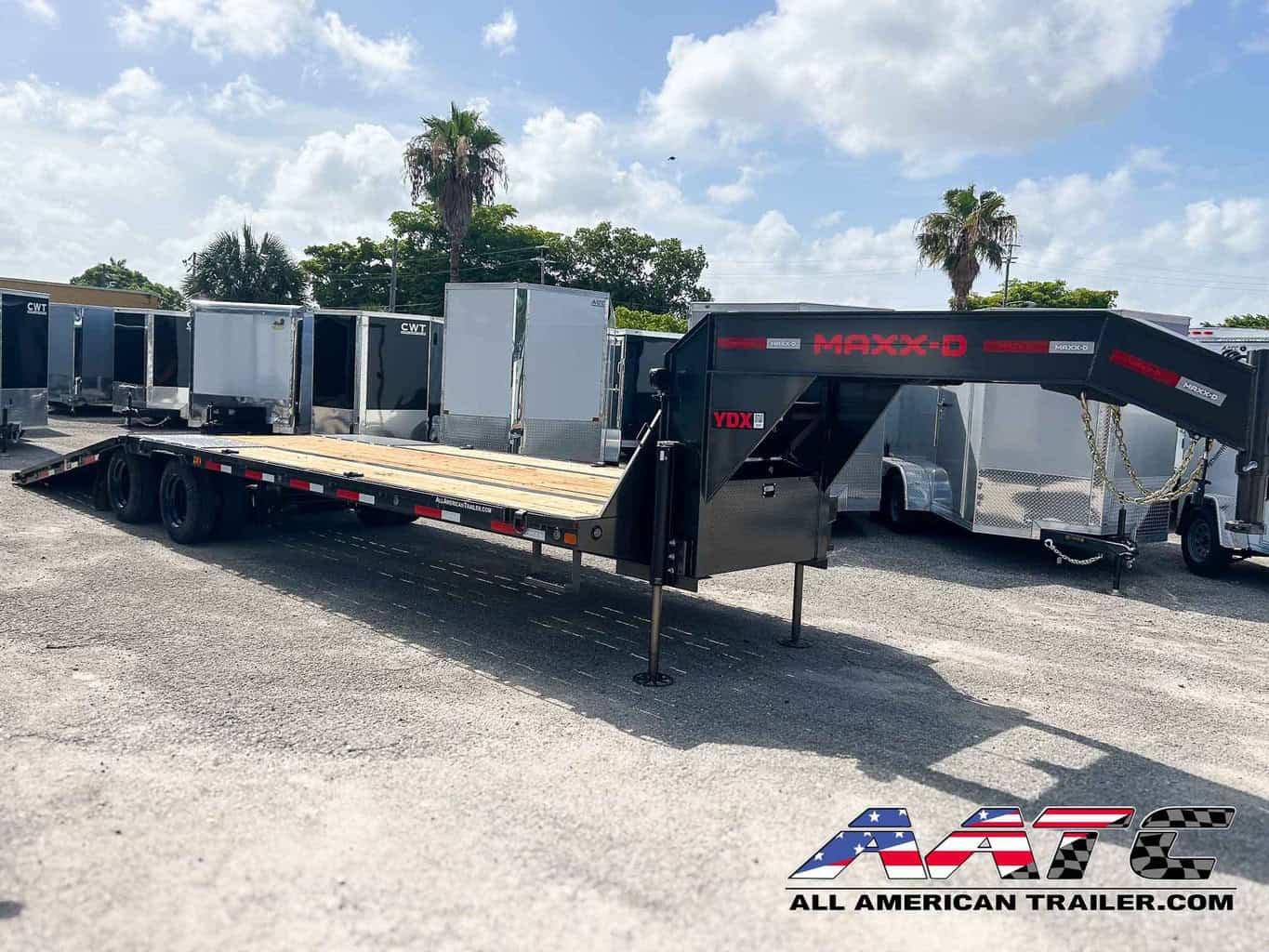

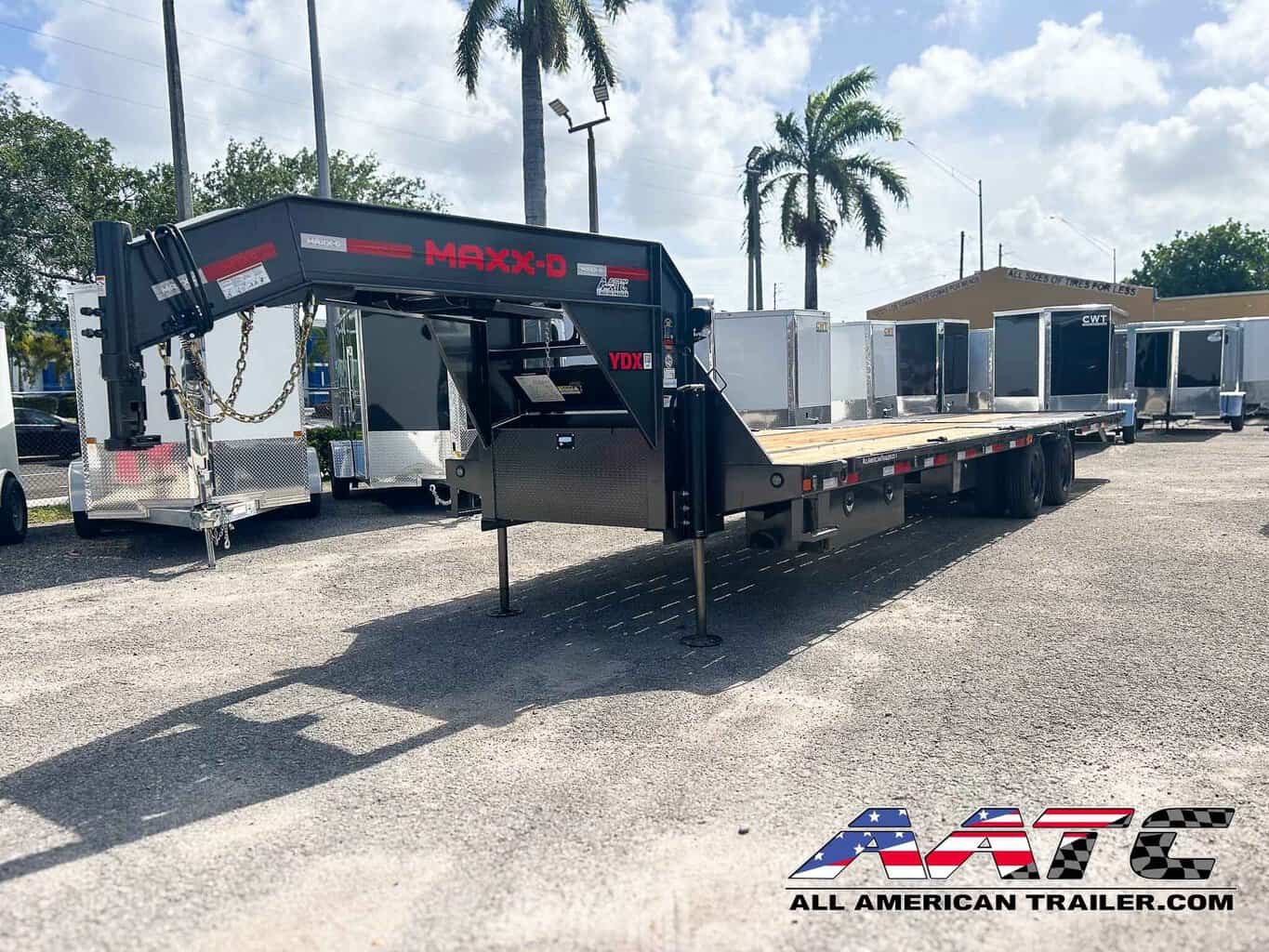

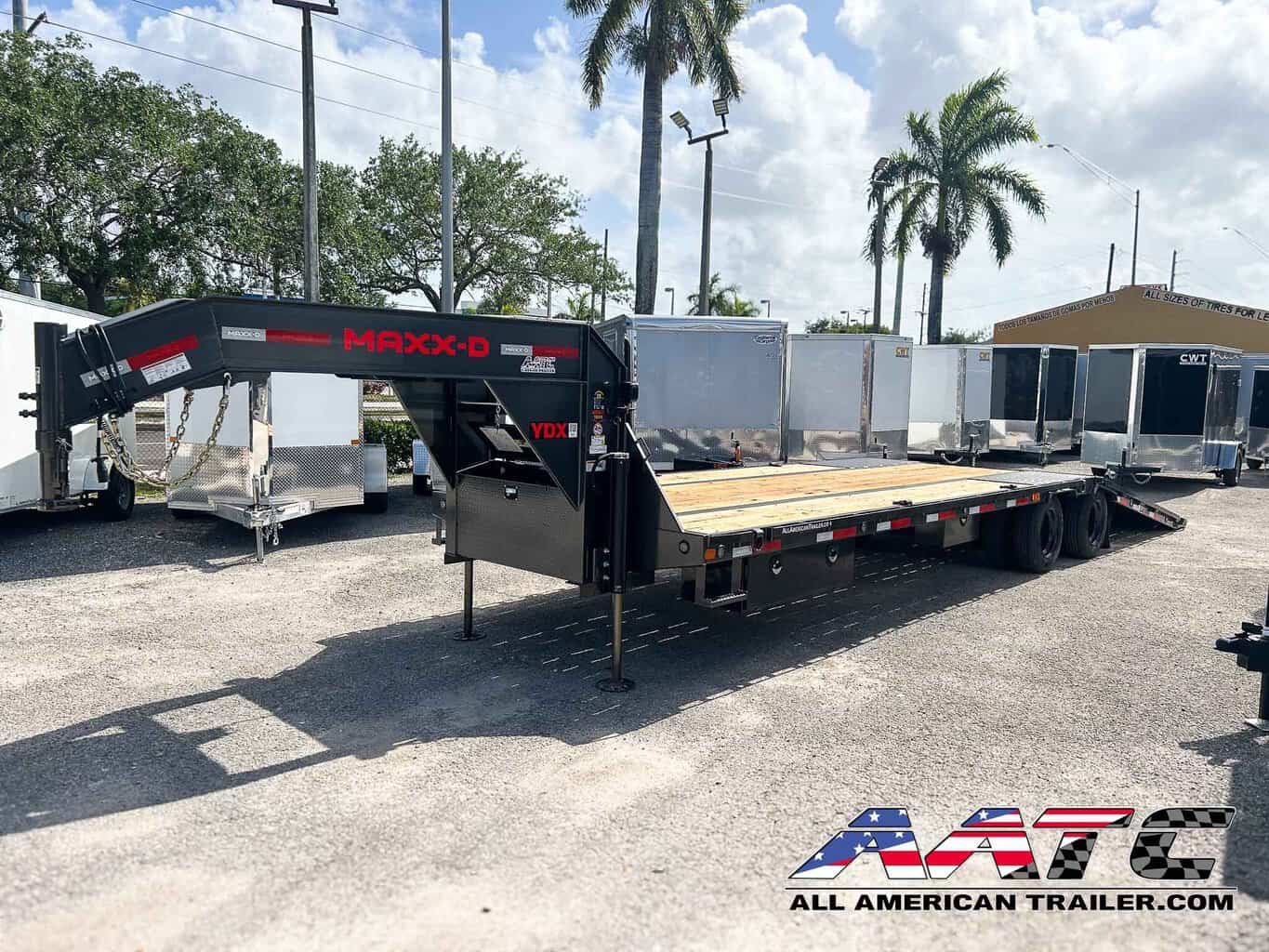

YDX-34-HYD MAXX-D 34′ HYDRAULIC DOVETAIL TRAILER 25,990 -30,000 GVWR 8.5X34 W/ 12′ DOVETAIL – HYDRAULIC JACKS -15,000 lb Axles

Standard Features:
– 2-5/16″ Ball Adjustable Pipe Coupler
– Dual Hydraulic Jacks
– 102″ Overall Width
– Low Profile Bed with I-Beam Main Frame

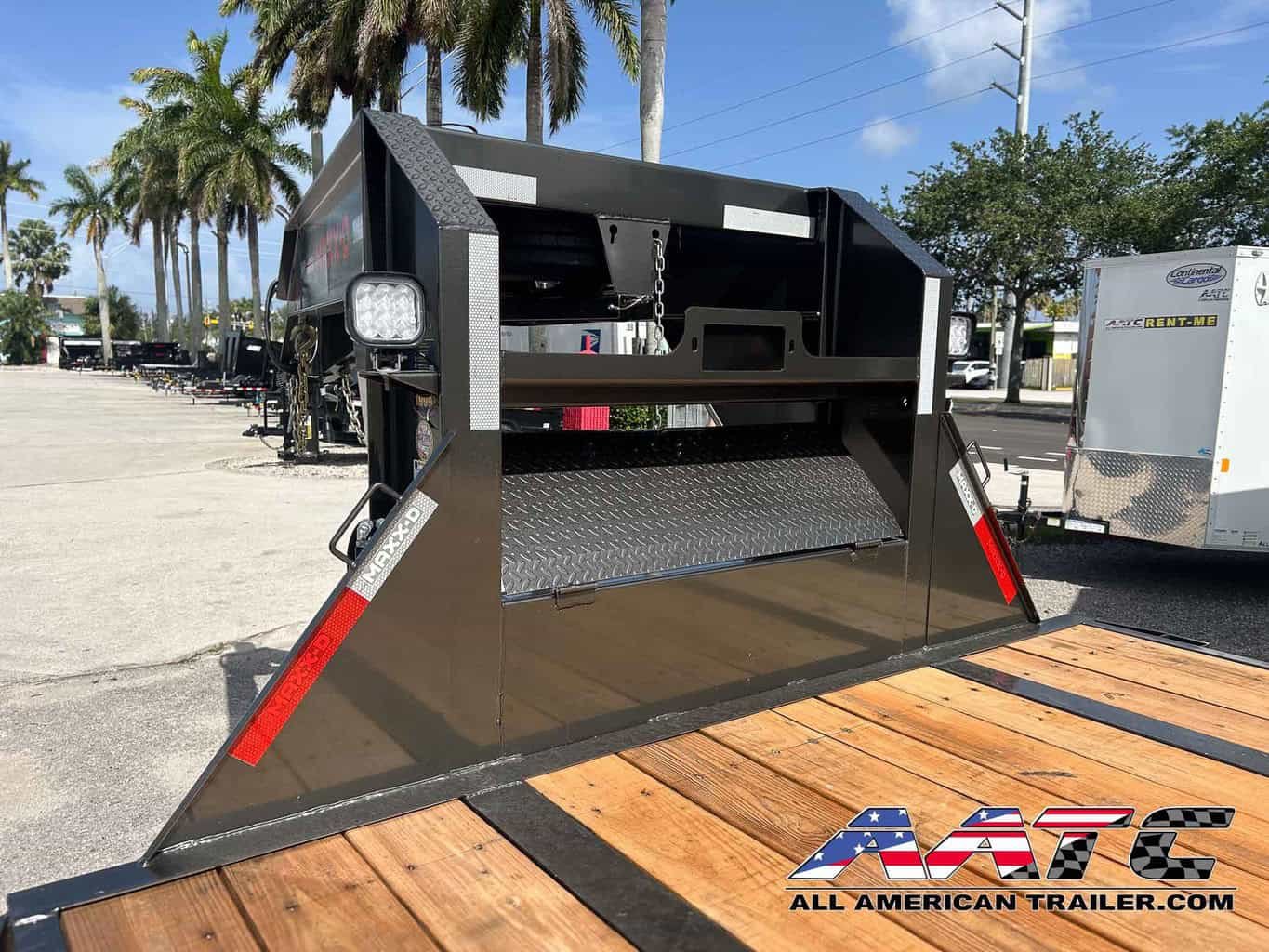

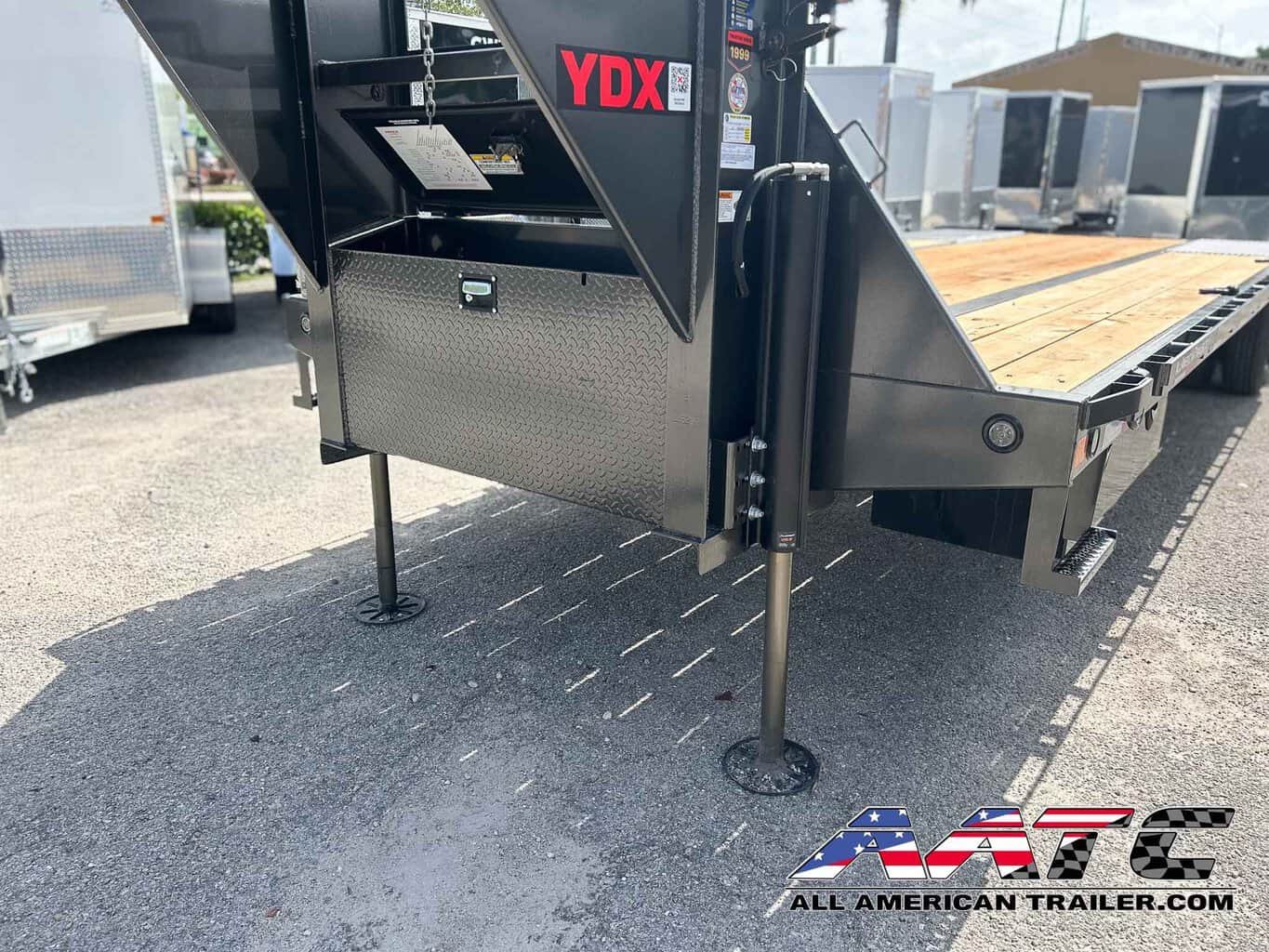

– Lockable Toolbox Between GN Uprights

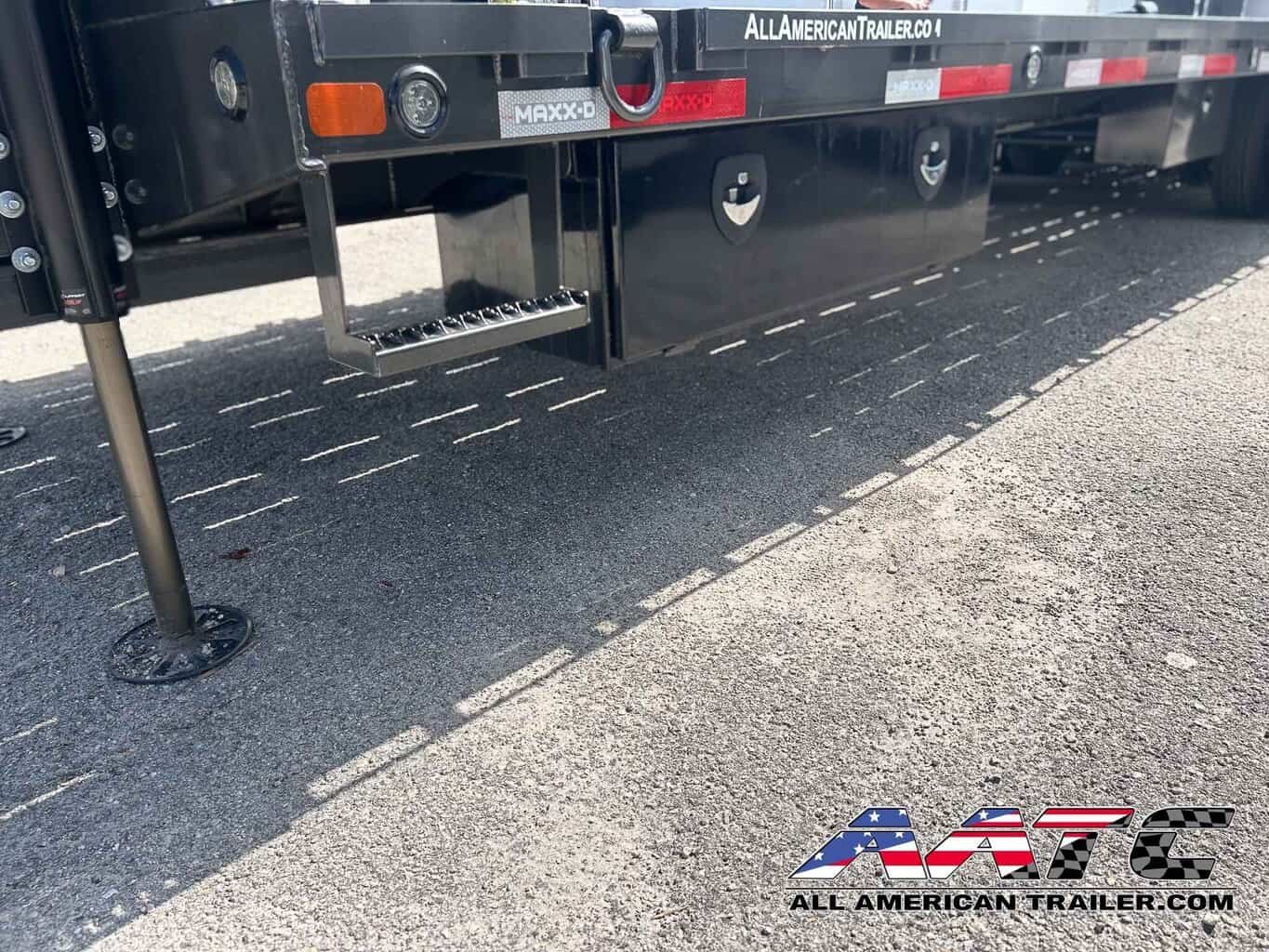

– (2) Side Bed Steps & Handles
– 3/8″ Heavy Duty Rub Rail
– Tie Down Pockets Along Sides, 24″ On Center
– 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
– Hydraulic Jacks

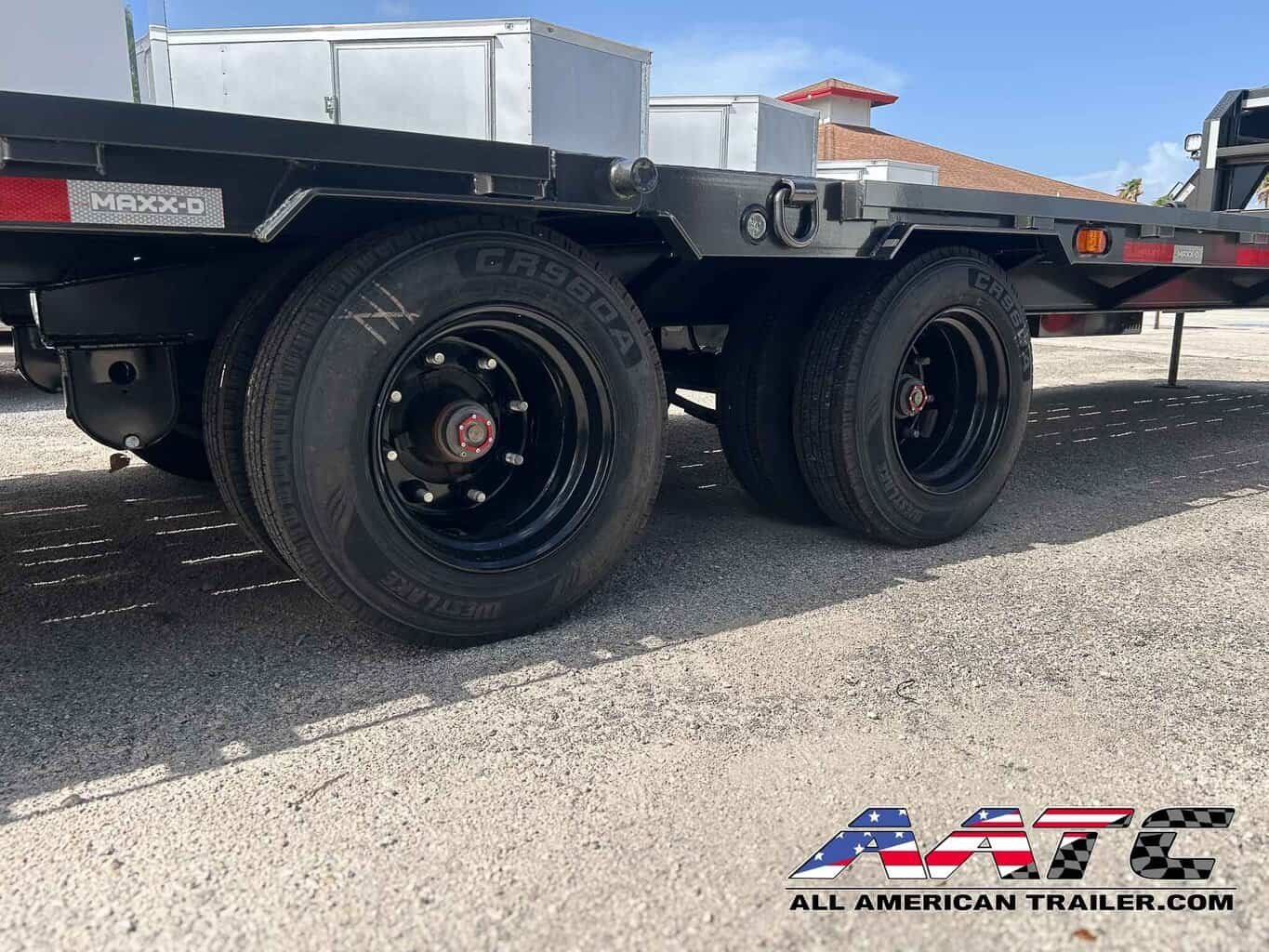

– 15,000 lb Dexter Brand Axles
– Nev-R-Adjust Electric Brakes on All Hubs
– Cambered Axles
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Modular Sealed Wiring Harness

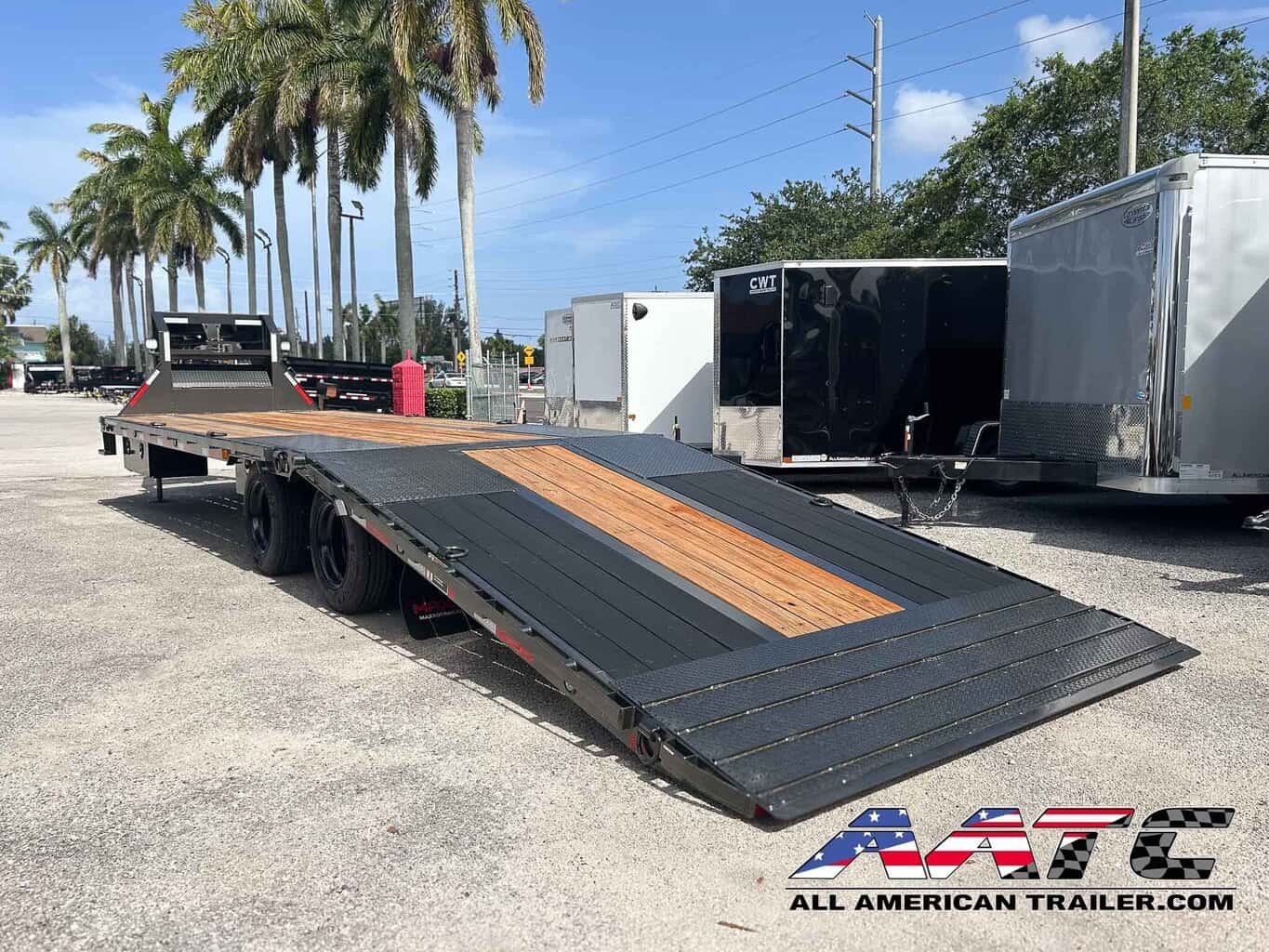

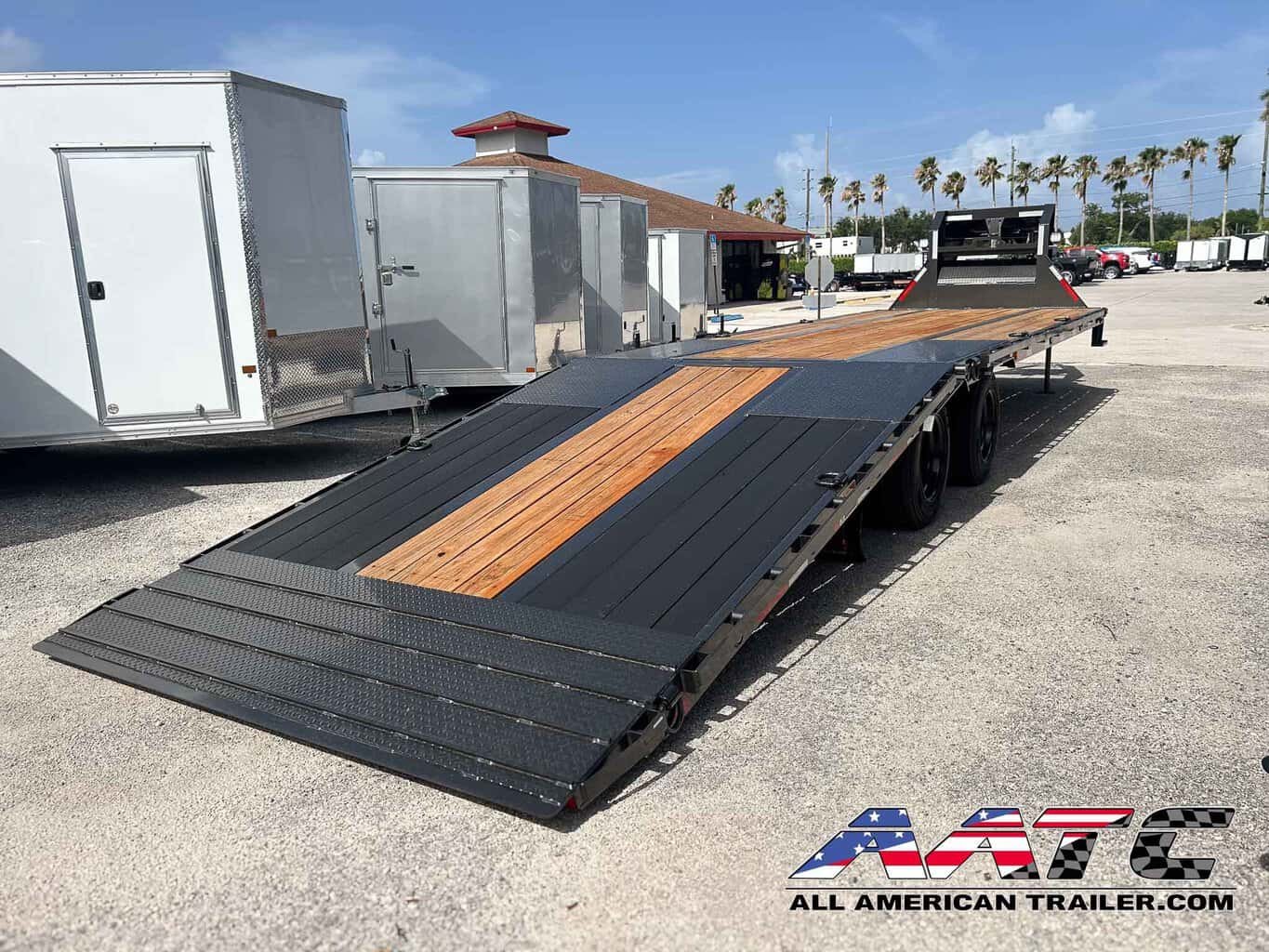

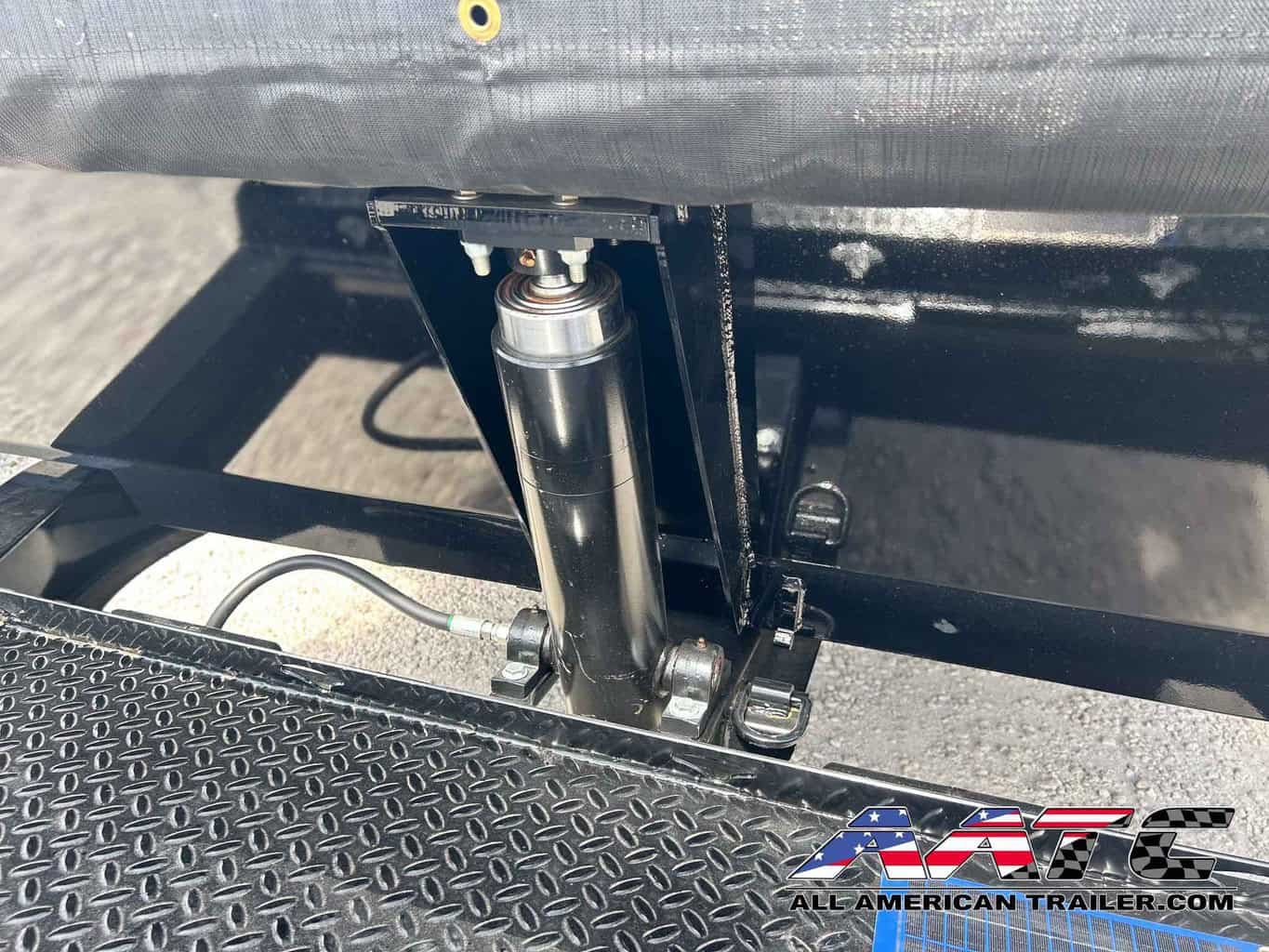

– 12′ Hydraulic Dovetail
– Complete Break-A-Way System w/Charger
– 16 Ply Radial Tires
– 16 Ply Spare Tire

Specifications:
AXLE: (2) 15,000# W/ Brakes
JACK: Dual Hydraulic Jacks (Bolted On)
TIRE: ST215/75 R-17.5 Load Range H
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 12″ I-Beam
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER: 2-5/16″ Ball Adjustable Pipe
NECK: 12″ I Beam
G.V.W.R.: 25,900# – 30,000 #
TOP RAIL: None
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SIDE RAILS: 5″ Channel w/Rub Rail, Tie Down Pockets on 24″ Centers, and Chain Spools
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3″ I-Beam
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle): 15,000#
