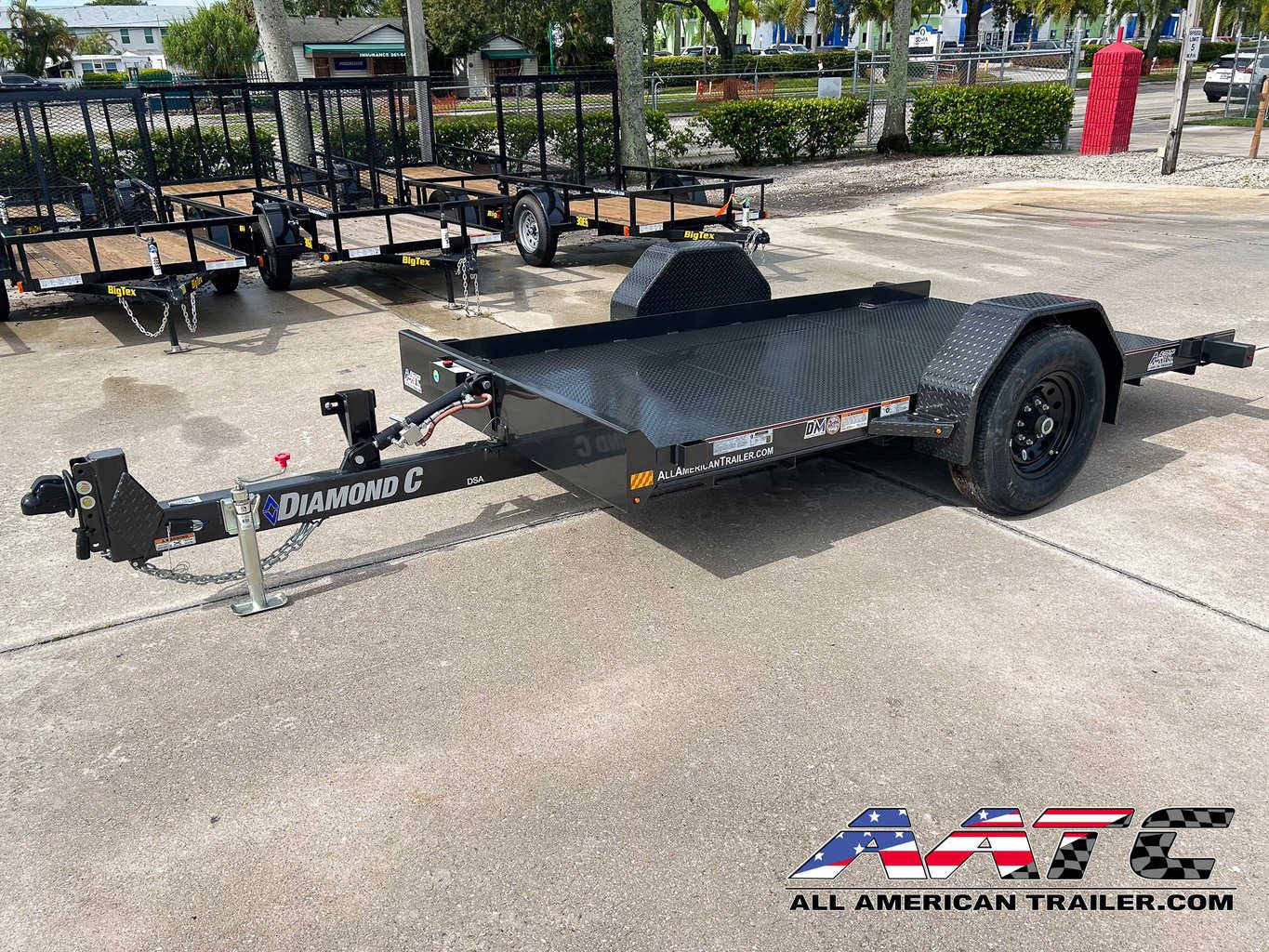

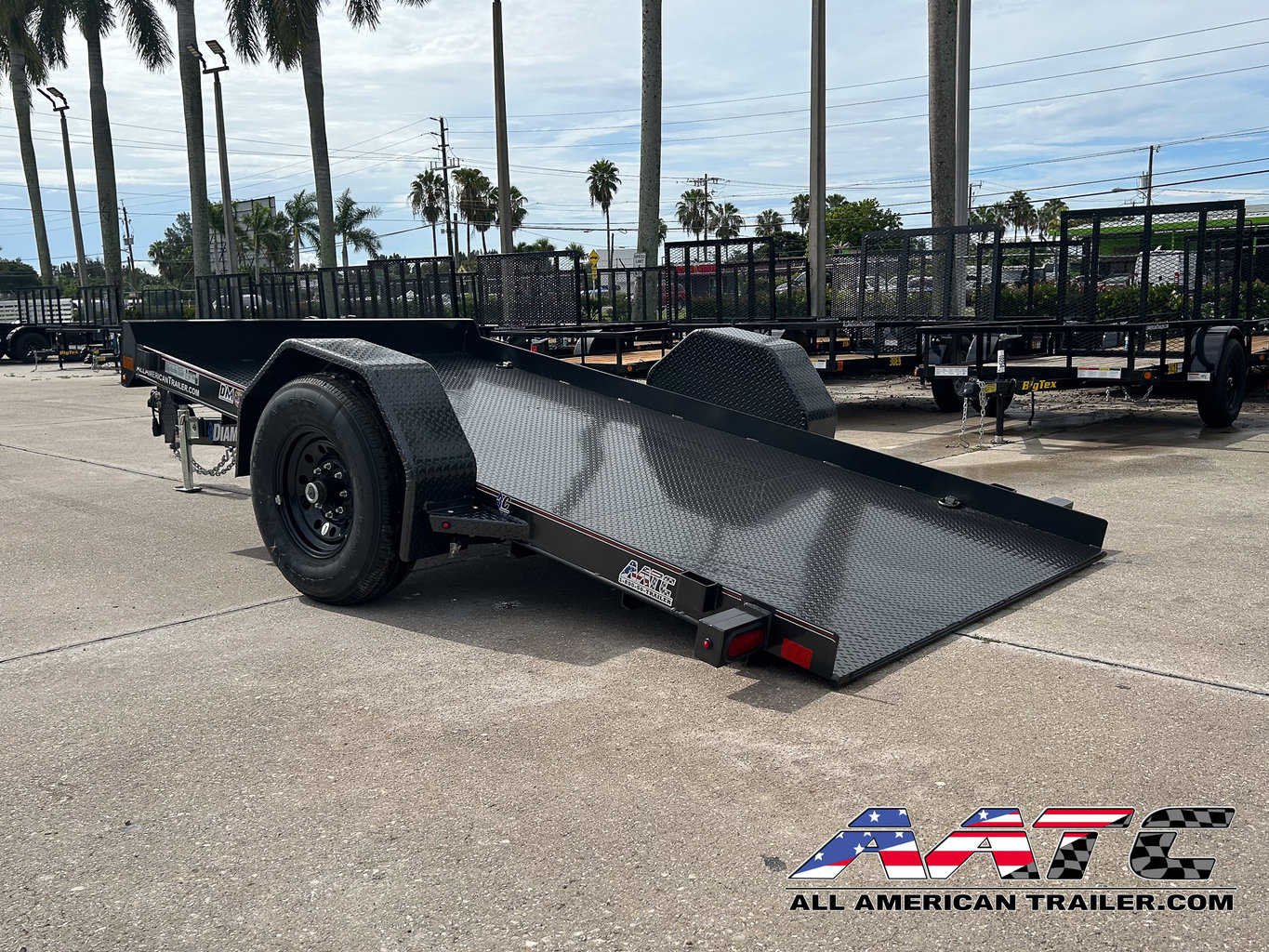

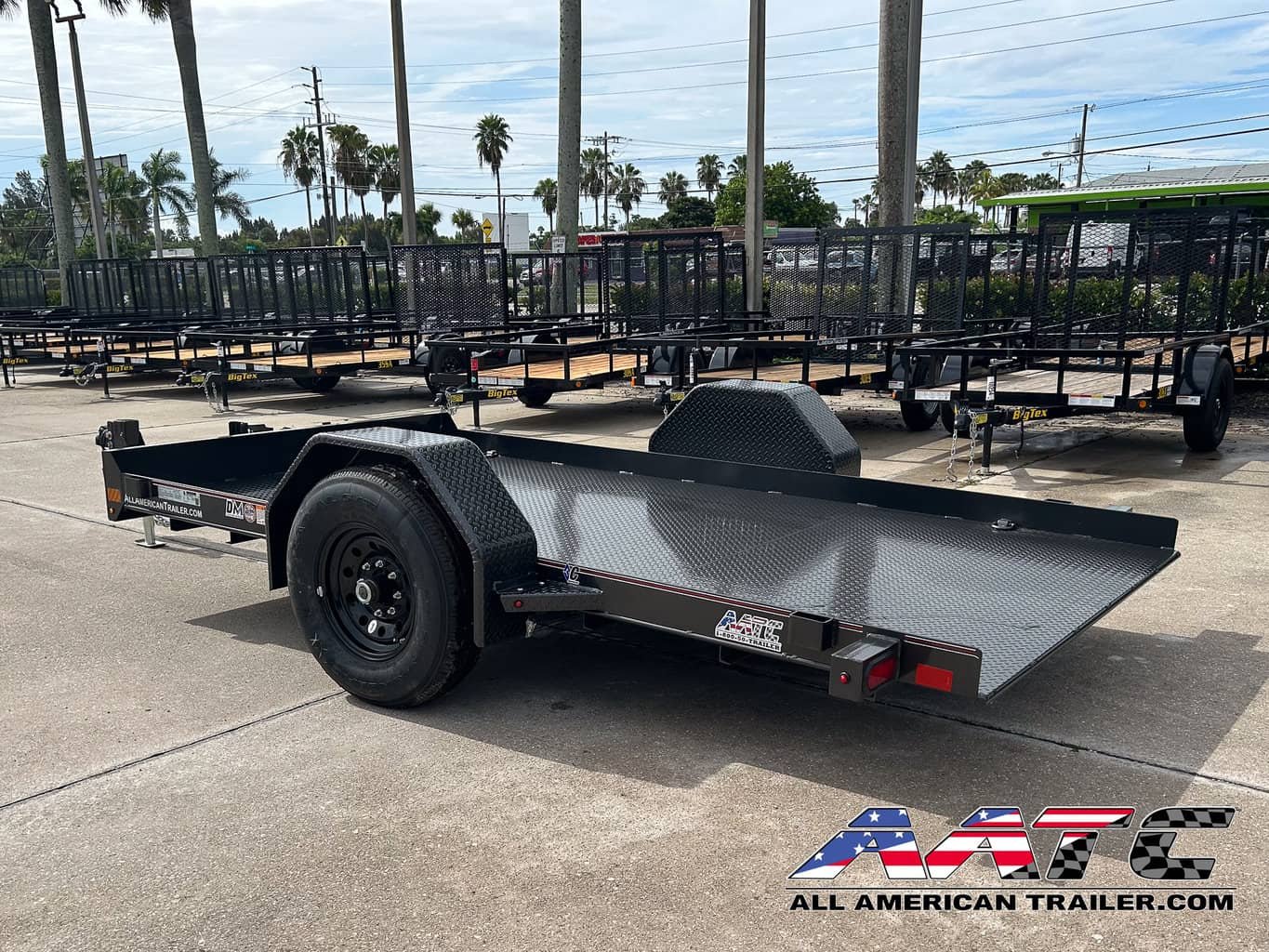

DSA-12 DIAMOND C 12′ SINGLE AXLE TILT TRAILER 7,000 GVWR 6.5X12

Standard Features:
– Adjustable 2-5/16″ 14,000# Cast Coupler
– Fold Back/Wrap Tongue w/ Raised Coupler
– 5,000# Drop Leg Jack- Side Wind Against Bed
– EZ Lube Hubs
– Lippert Brand Axles
– Nev-R-Adjust Electric Brakes on All Hubs
– Cambered 4″ Drop Axles
– Complete Break-A-Way System w/Charger
– Double Broke Diamond Plate Fenders (Removable)
– 77″ Width Between Fenders

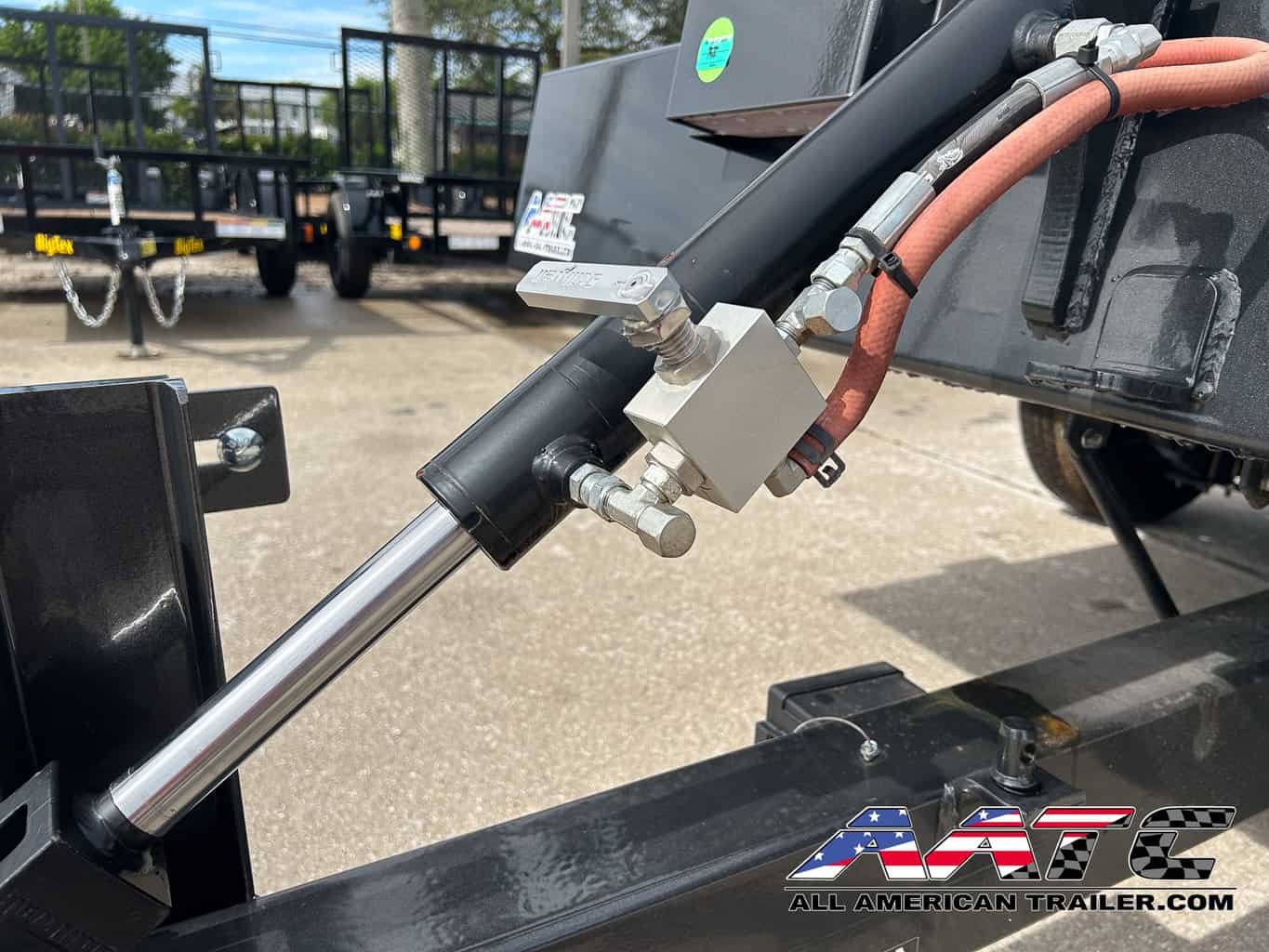

– Hydraulic Dampening System
– 1/4 Diamond Plate Knife Edge on Rear
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Sealed Modular Wiring Harness
– Spare Tire Mount (Front)

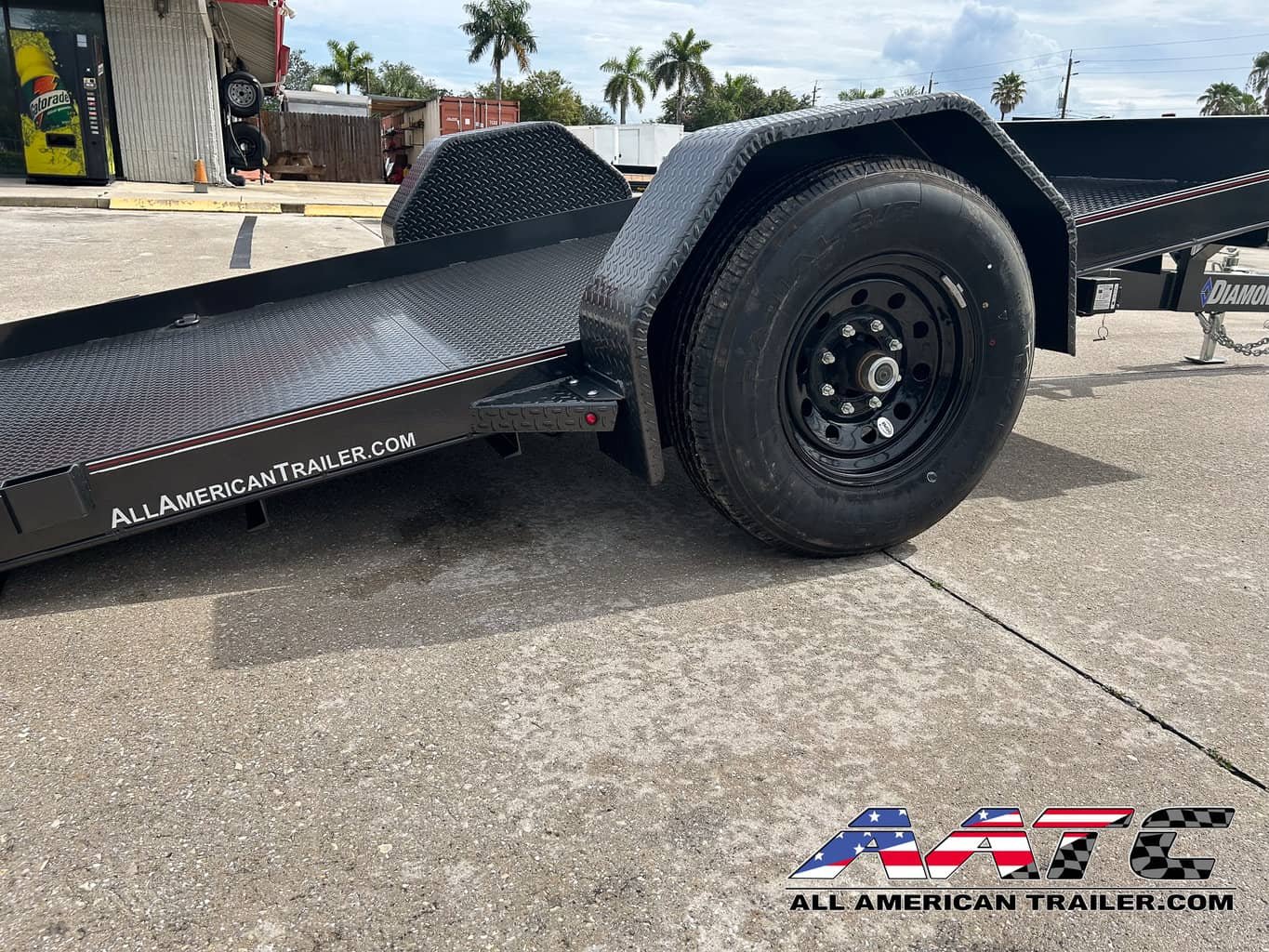

– Radial Tires

Specifications:
AXLE: 7,000#, 4″ Drop EZ Lube w/Electric Brakes
JACK: 5,000# Drop Leg Jack-Side Wind
TIRE: ST235/80 R-16 Load Range G
FLOOR: Diamond Plate steel deck
FRAME: Tube
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Straight Tube
COUPLER: Adjustable 14K Cast 2-5/16″
FENDERS: Double Square Brake Diamond Plate
UPRIGHTS: NONE
G.V.W.R.: 7,000#
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3″ I-Beam
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL: Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle): 7,000#
