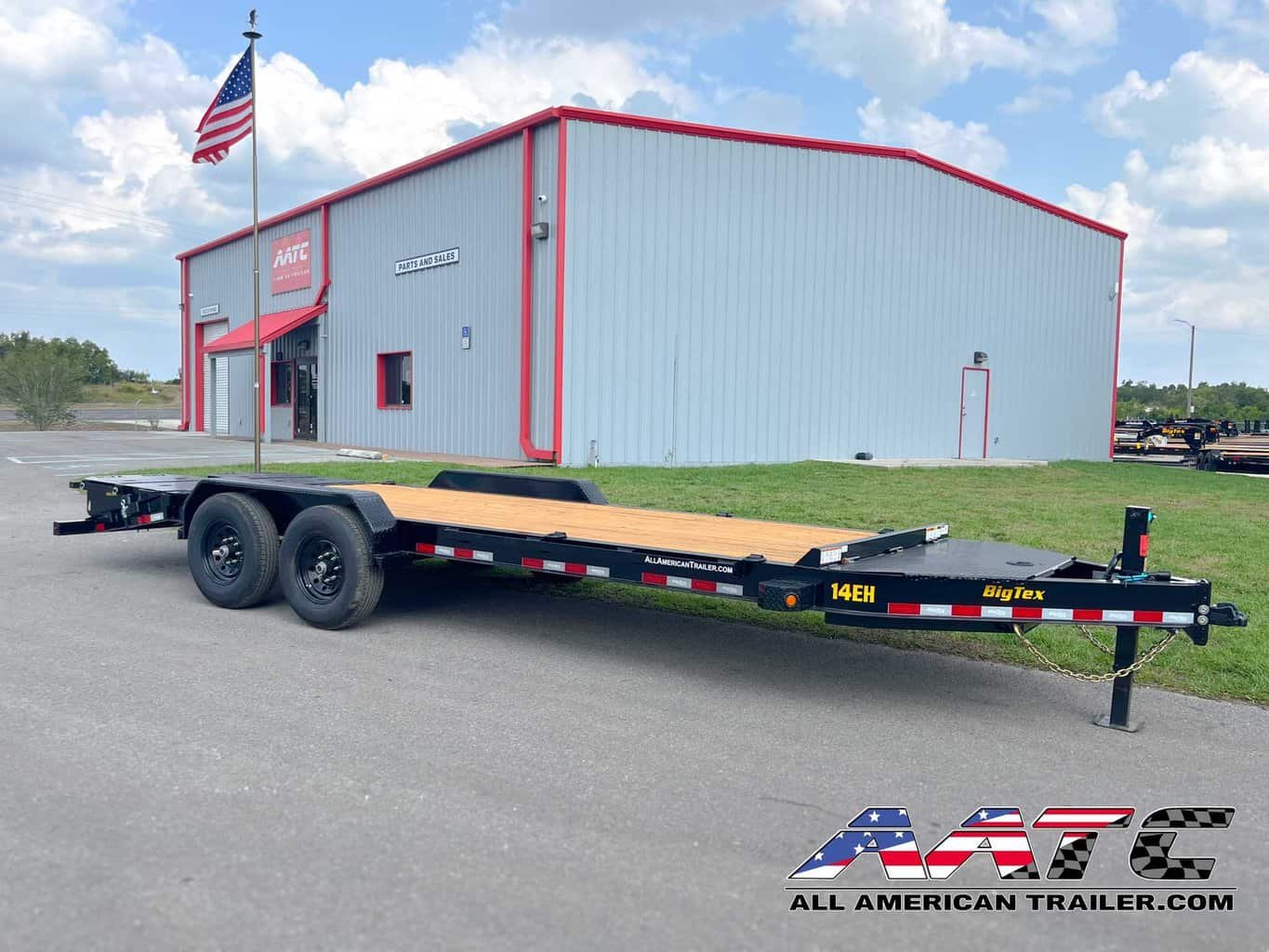

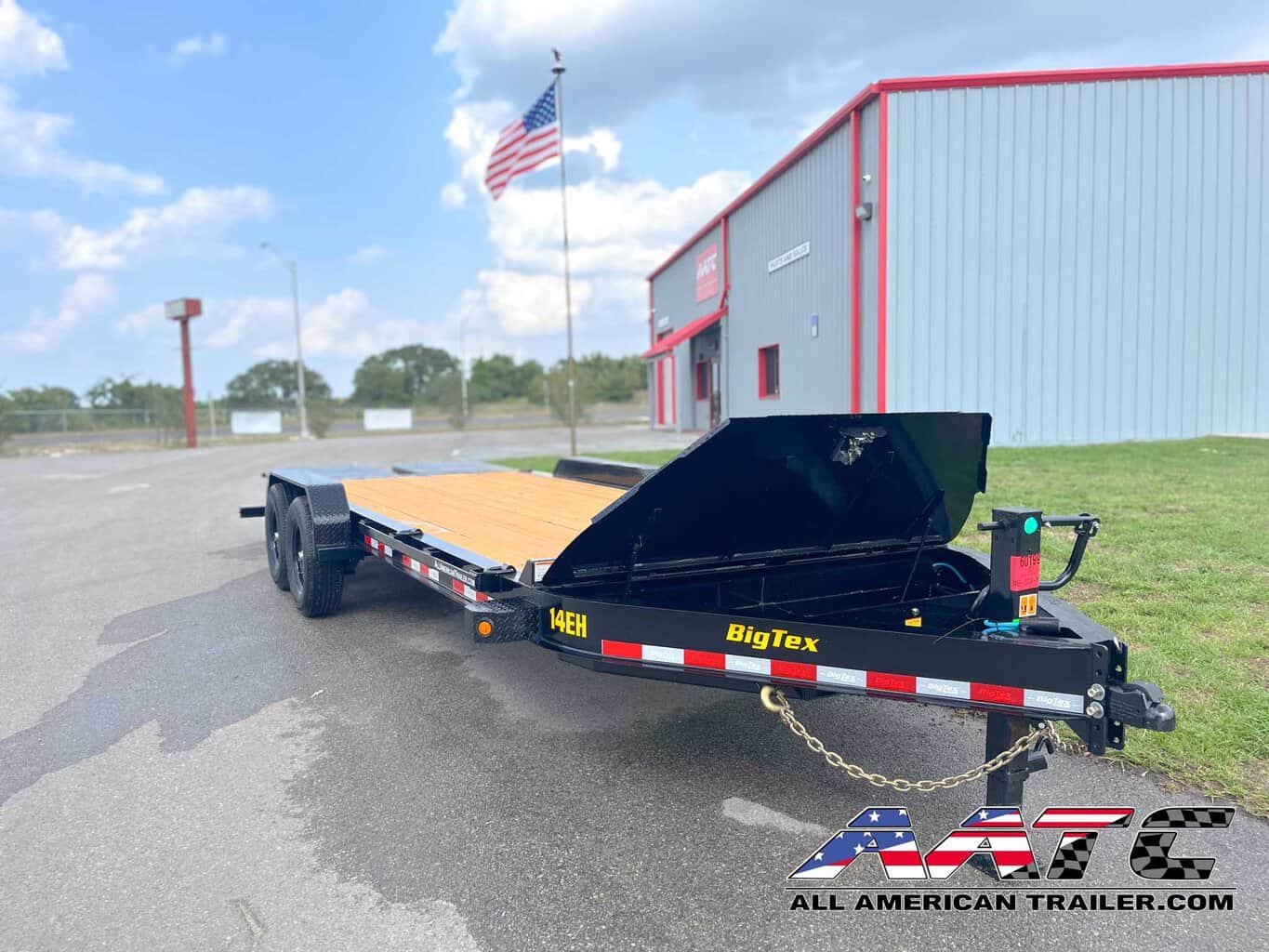

14EH-17+3MR BIG TEX 20′ EQUIPMENT TRAILER 15,400 GVWR MEGA RAMPS – I-Beam Frame

Standard Features:
– Rubrail and Tie Down Pockets Along Sides
– 36″ Cleated Dovetail

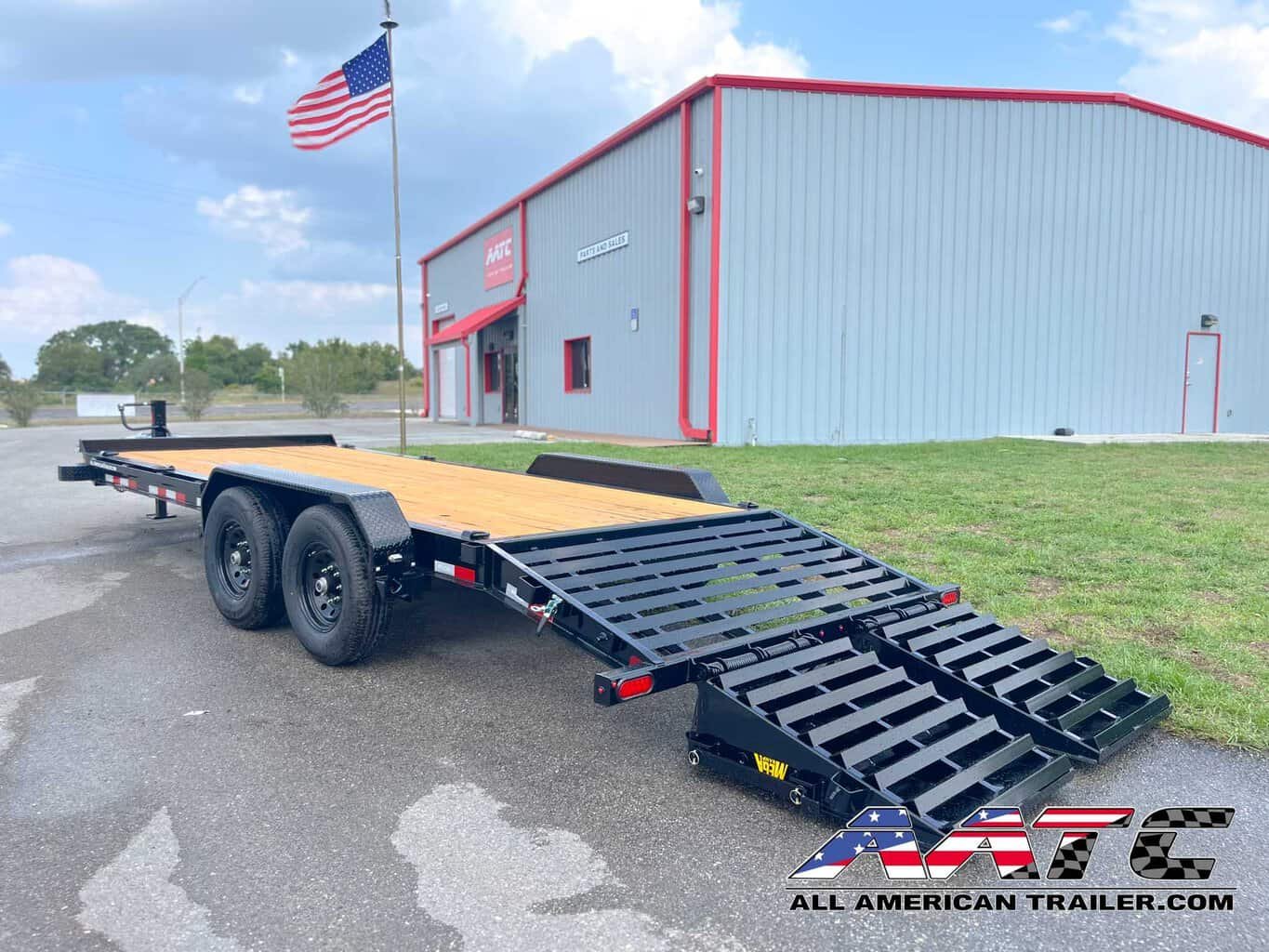

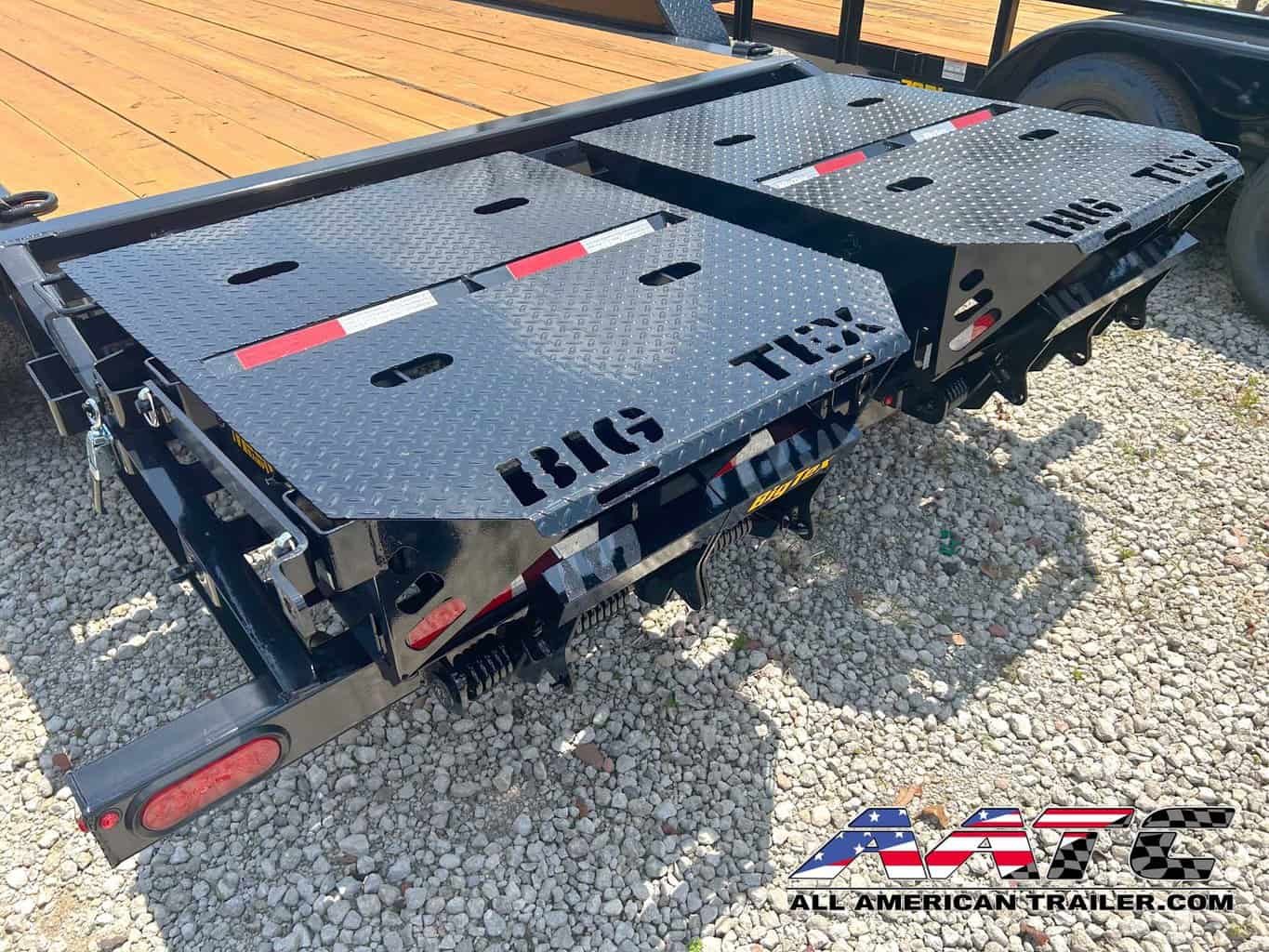

– Full Width Mega Ramps
– Adjustable 2-5/16″ 14,000# Cast Coupler
– Full Length I-beam Frame (14 & Longer)
– 12,000# Drop Leg Jack- Side Wind Against Bed
– 2″ Tubular Stop Rail
– EZ Lube Hubs
– Lippert Brand Axles
– Nev-R-Adjust Electric Brakes on All Hubs
– Cambered Axles
– Double Broke Diamond Plate Fenders (Removable)
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Sealed Modular Wiring Harness
– Spare Tire Mount (Front)
– Complete Break-A-Way System w/Charger
– Radial Tires

Specifications:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: 12,000# Drop Leg Jack-Side Wind
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 6″ Channel
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LiGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 8″ I-Beam
COUPLER: Adjustable 2-5/16″ 14,000# Cast
FENDERS: 9″ x 72″ Double Broke Diamond Plate w/Back (Removable)
G.V.W.R.: 15,400#
UPRIGHTS: NONE
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3″ Channel on 16″ Centers
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL: Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle): 7,000#
