ROX-14 – 14′ ROLL OFF (BASE FRAME ONLY) DUMP TRAILER 15,000 GVWR – MAXX-D

ROX-14 – 14′ ROLL OFF (BASE FRAME ONLY) DUMP TRAILER 15,000 GVWR – MAXX-D

Standard Features:
– Adjustable 2-5/16″ Cast Coupler in Channel
– 12,000# Spring-Loaded Drop-Leg Jack, Top Wind

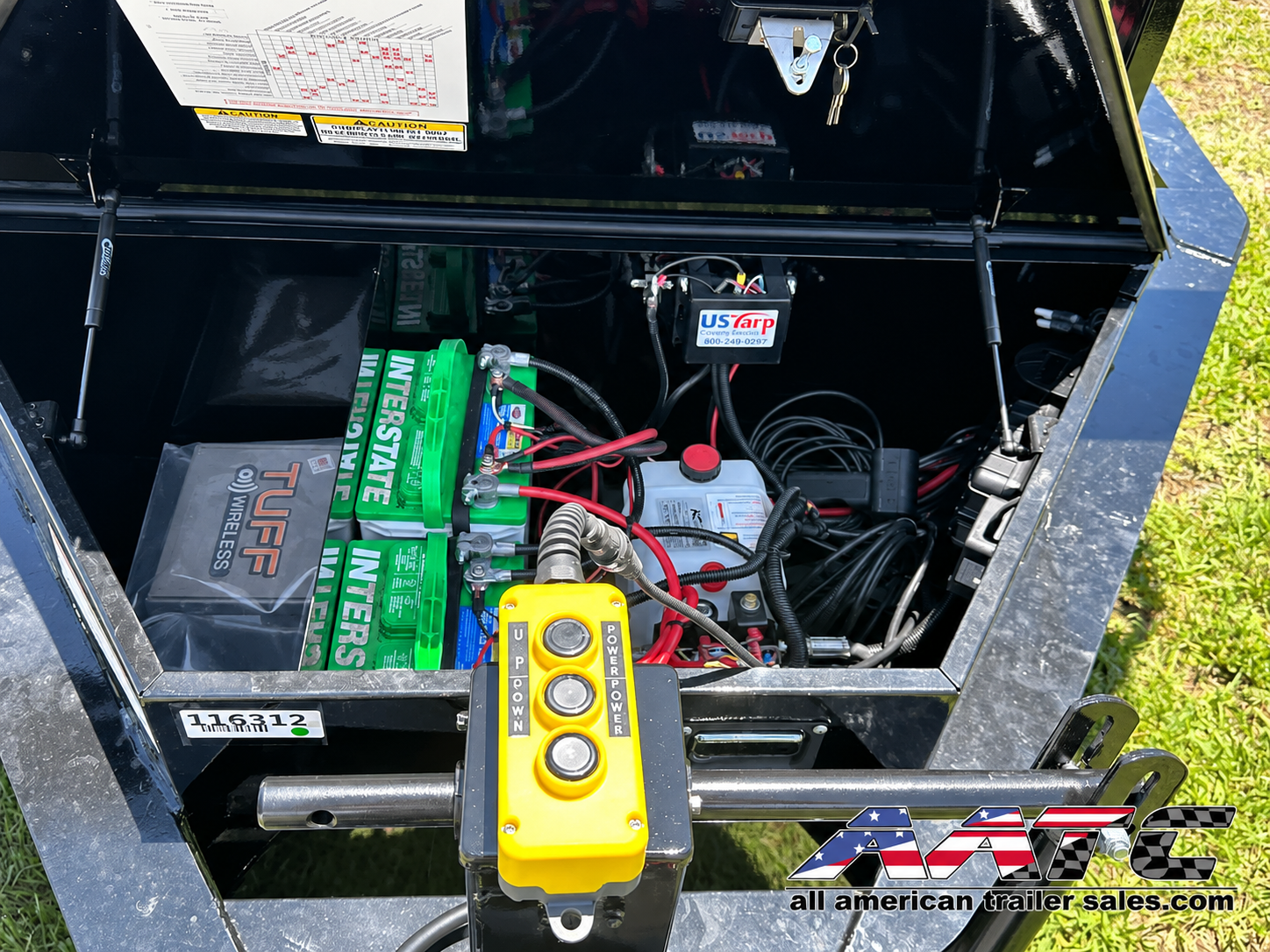

– Lockable Pump & Battery Box Mounted in Front

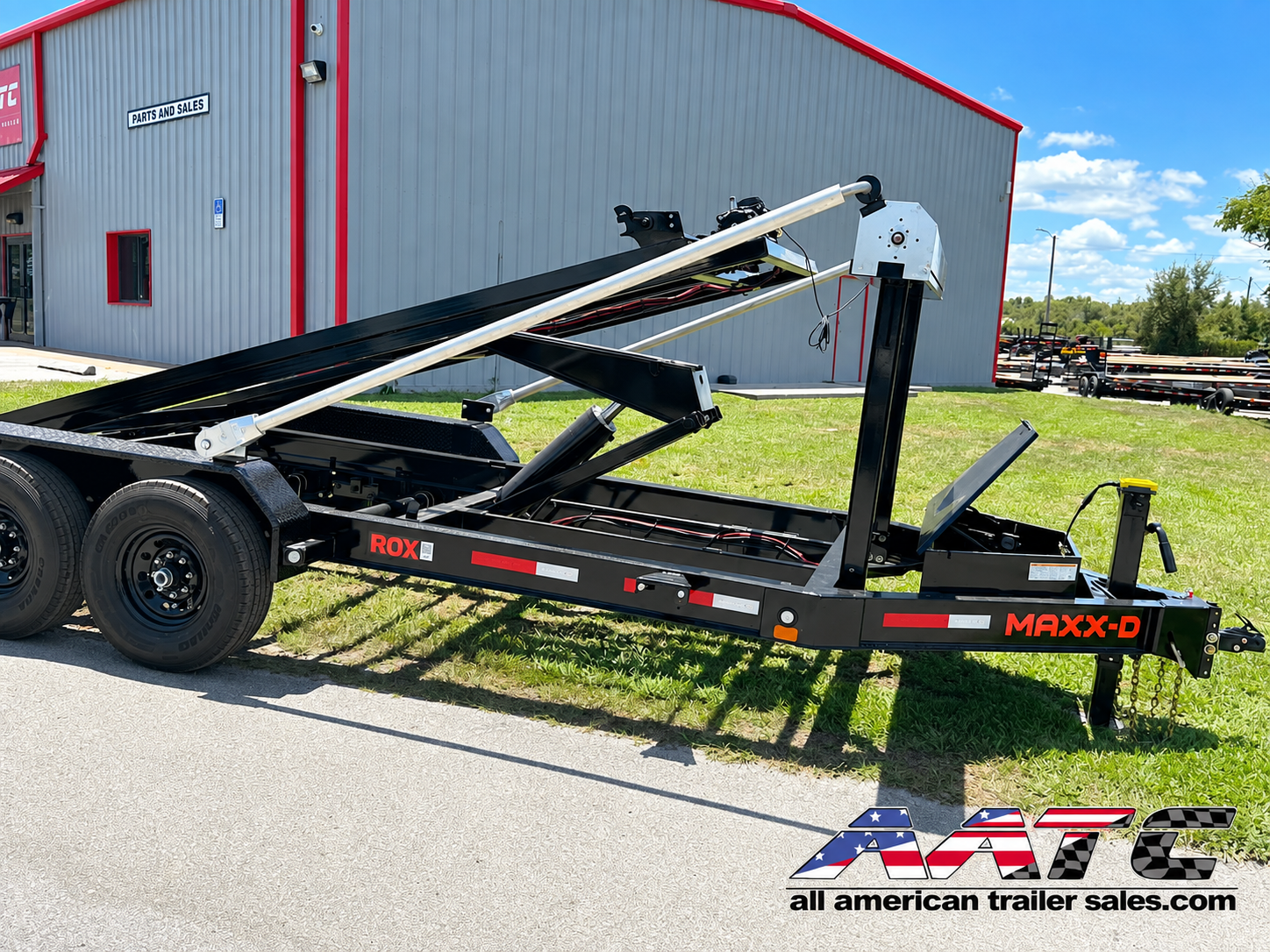

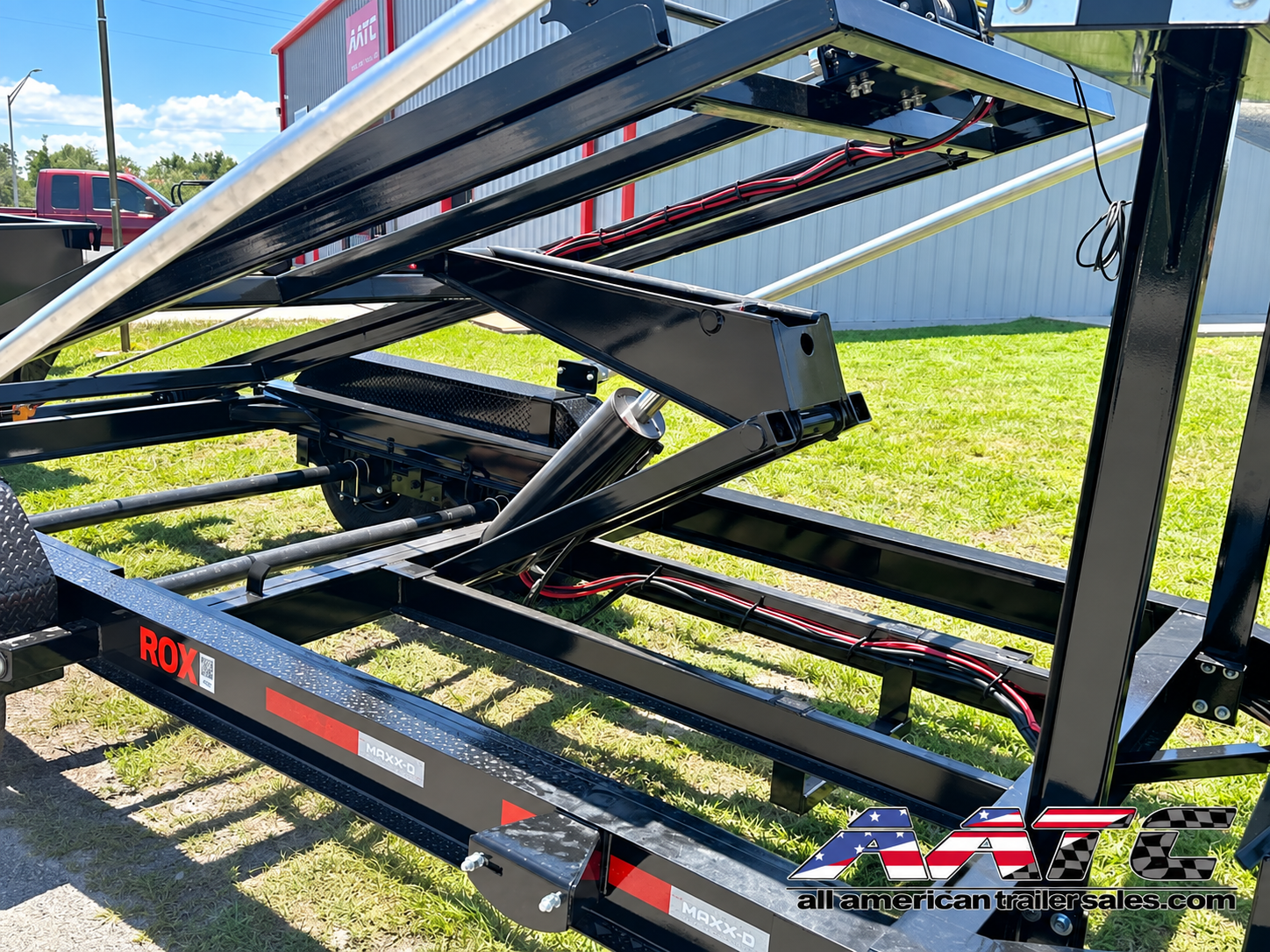

– Self Contained Electric/Hydraulic Scissor Hoist
– Cambered, Lippert Brand Axles
– 14 Ply tires
– EZ Lube Hubs
– Nev-R-Adjust Electric Brakes on All Hubs
– Diamond Plate Fenders
– 8″ I-Beam Frame w/ Integrated Tongue
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Protected Wiring
– Complete Brake Away System
– 110V On-Board Battery Charger (5 Amp)
– (2) 12V Batteries Included
– Radial Tires

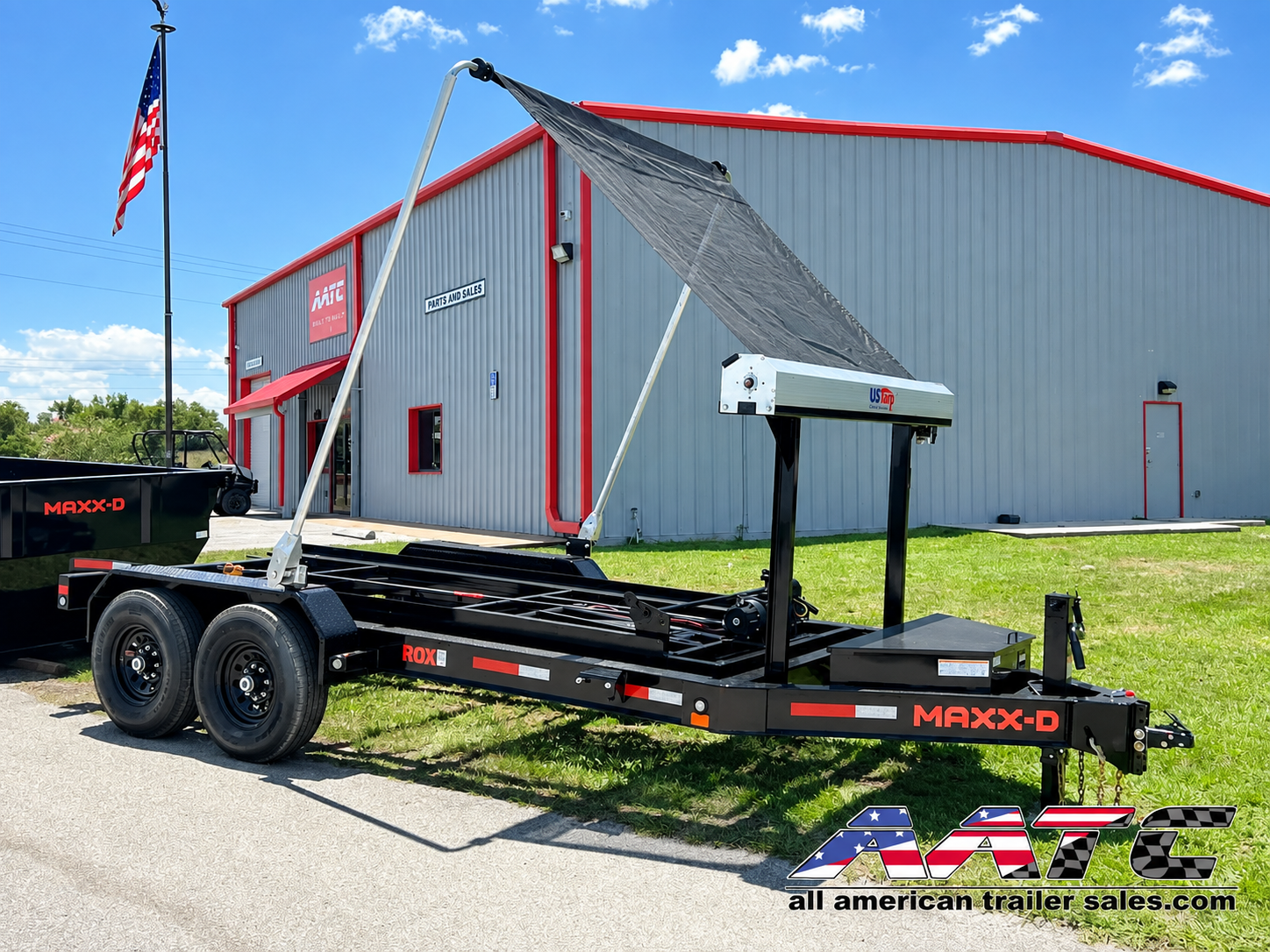

– Electric Armed Tarp

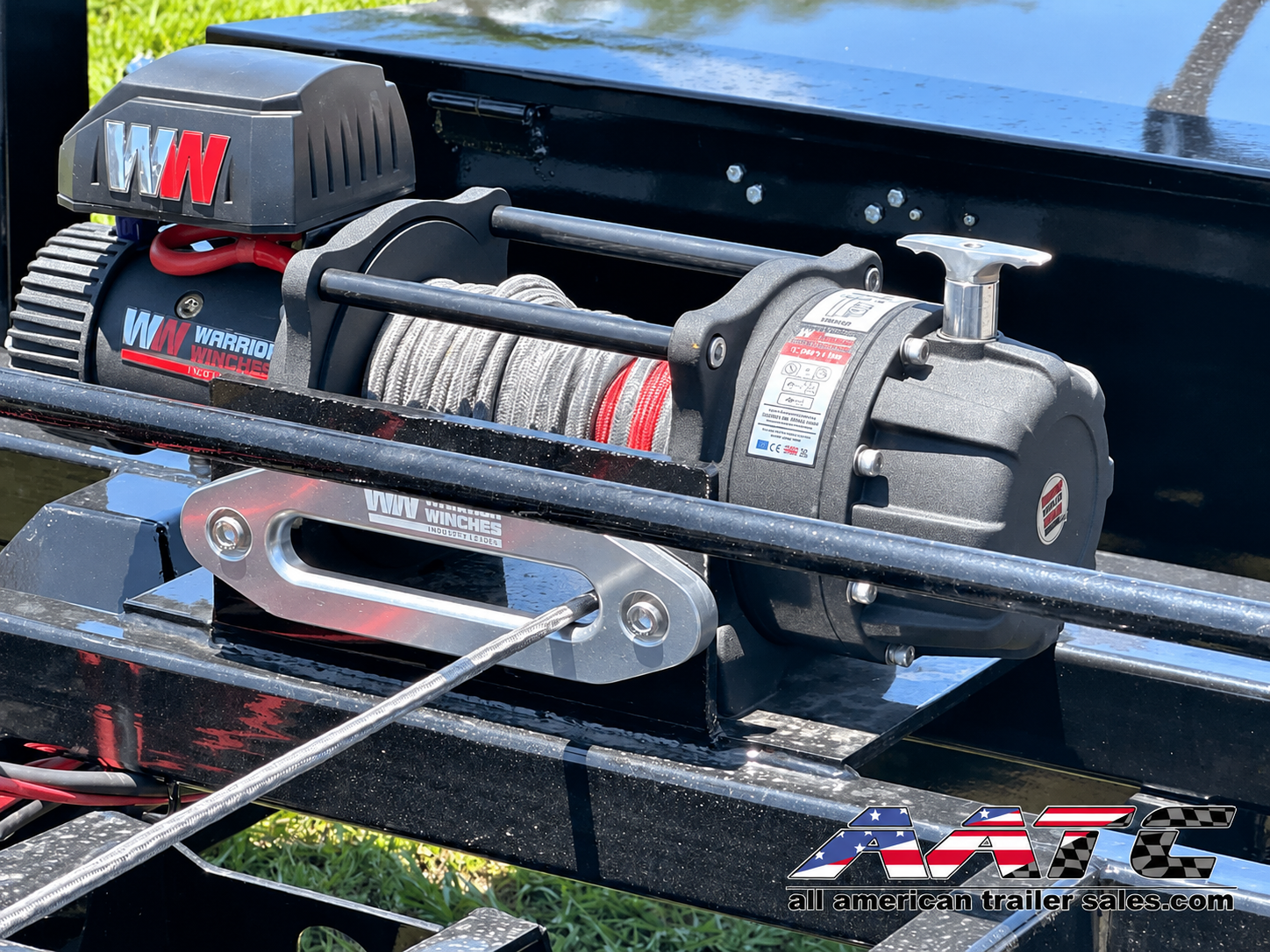

– Commerical Grade Winch

Specifications:
AXLE: (2) 7,000 Drop Axles w/ EZ Lube Hubs & Elec. Brakes
JACK: 12,000 Drop Leg- Top Wind
TIRE: ST235/80 R-16 Load Range G
FLOOR: N/A
FRAME: 8″ I Beam, 10
WHEEL: 16″ x 6″; HD Black Mod 8 Bolt
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 8″ I Beam, 10
COUPLER: 2-5/16″ Adjustable Cast
G.A.W.R. (Ea. Axle): 7,000
G.V.W.R.: 15,000
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Mulit-Leaf Spring w/ Equalizer
FENDERS: 9″ x 72″ Double Square Broke Diamond Plate
CROSSMEMBERS: 3″ Channel & 4″ x 2″ Rect. Tubing
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
