GN16-40-SIR AATC 40′ GOOSENECK 17,500 GVWR 9 TON STRAIGHT DECK

Standard Features:
– Dual 12,000# Drop Leg Jacks- (Bolted On) w/ Greasable Handle
– 2-5/16″ Ball Adjustable Coupler- Square Crank Type
– Low Profile Bed, Pierced- Beam Frame
– Torque Tube to prevent Frame Twisting
– 102″ Overall Width
– (2) Side Bed Steps & Handles

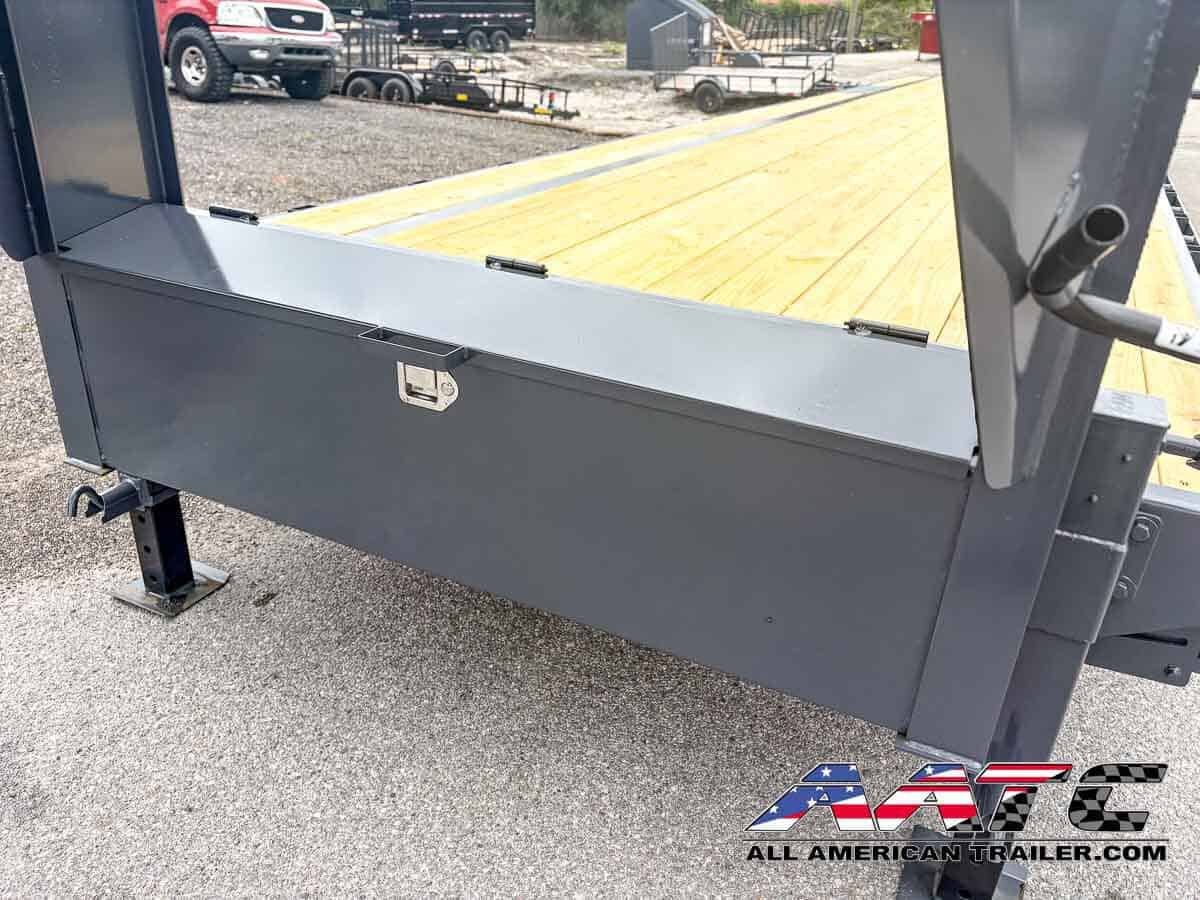

– Lockable Toolbox Between GN Uprights
– 3/8″ Heavy Duty Rub Rail
– Tie Down Pockets Along Sides, 24″ On Center
– 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
– Oil Bath Hubs
– Dexter Brand Axles
– Cambered Axles
– Forward Self Adjusting Brakes
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Modular Sealed Wiring Harness

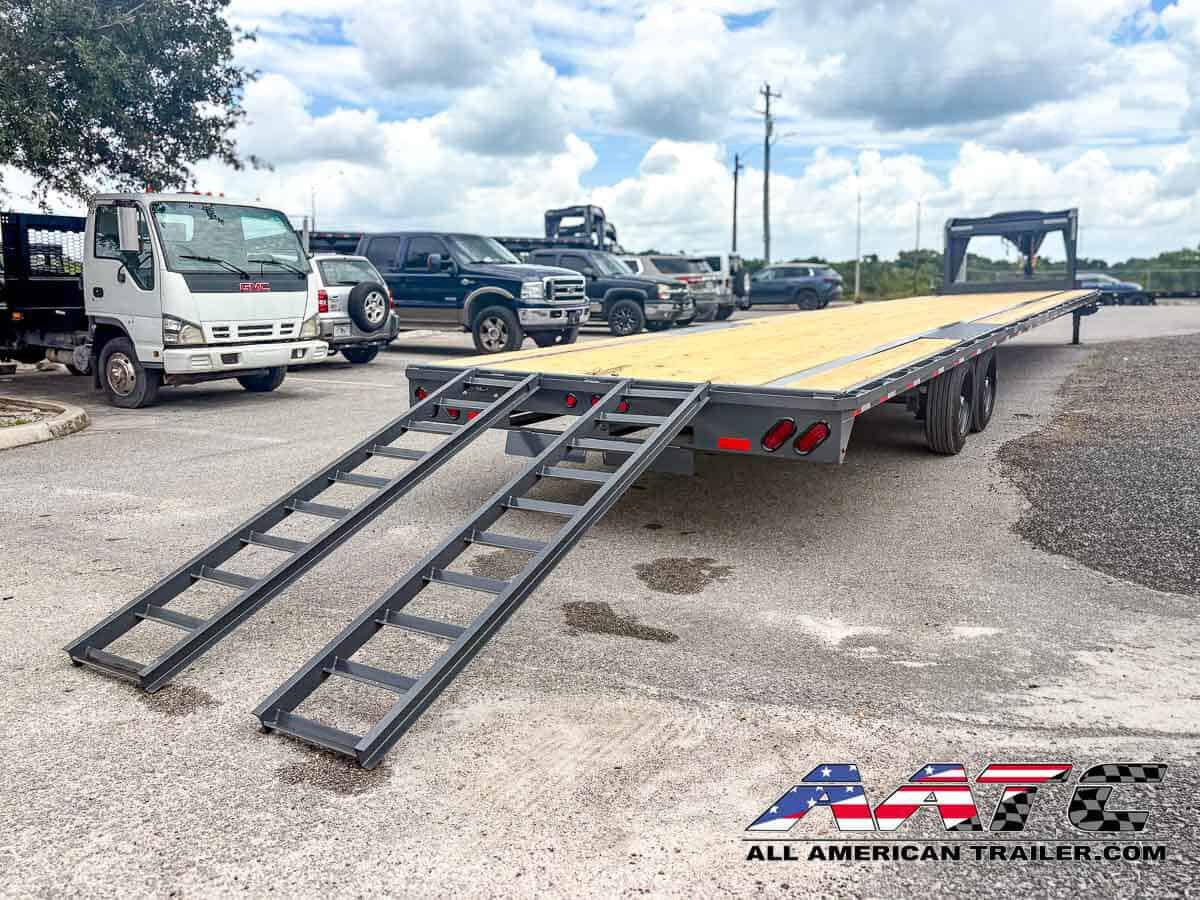

– Slide-In Ramps
– Complete Break-A-Way System w/Charger
– Zip Breakaway Cable

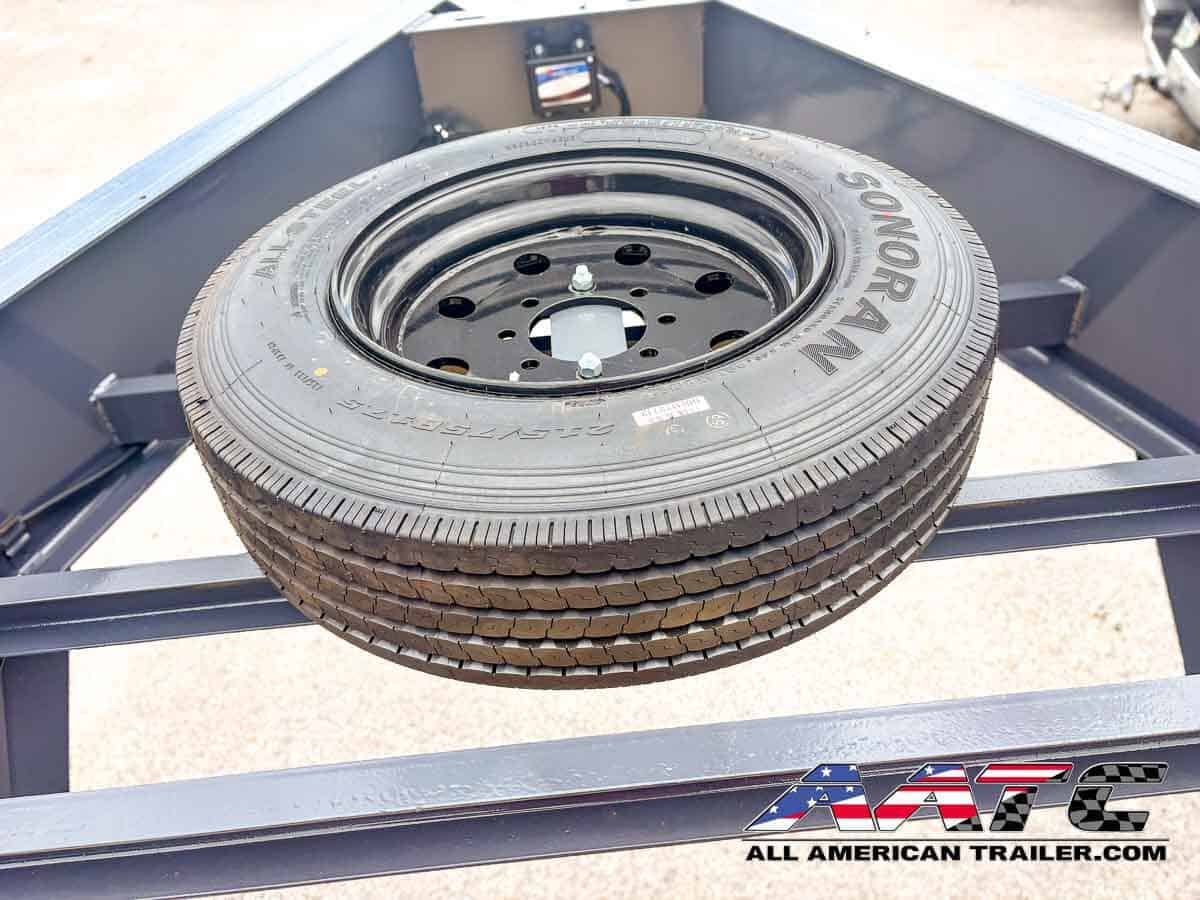

– Spare Tire Mount (Top of Neck)
– Radial Tires
– Spare Tire & Wheel – Standard Equipped
– 16 Ply Tires

Specifications:
AXLE: (2) 8,000# Dual Wheel w/Electric Brakes
JACK: Dual 12,000# Drop Leg Jacks (Bolted On)
TIRE: ST215/75R17.5 LRH Tires
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 12″ I Beam, 16#
WHEEL: 17.5″ x 6″; Dual Wheel 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

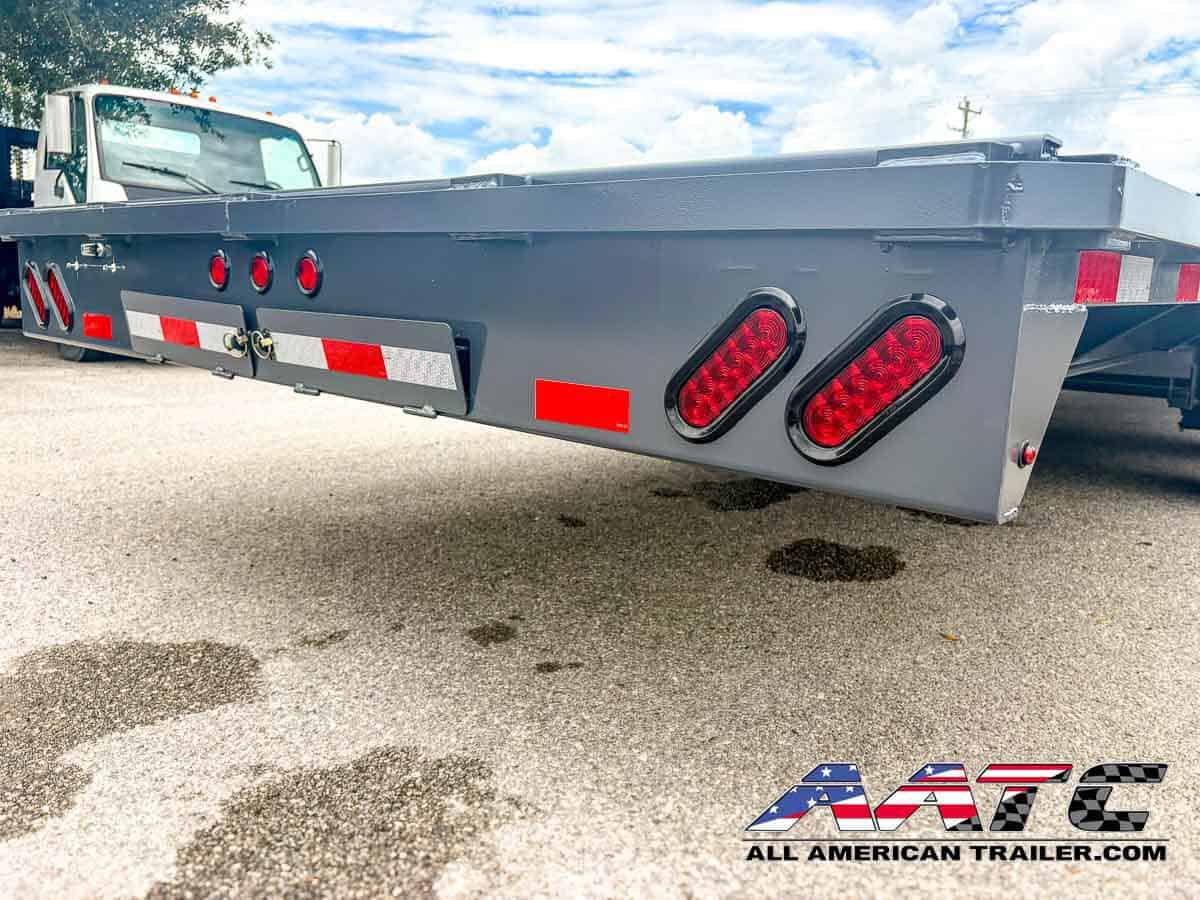

LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER: 2-5/16″ Ball Adj. Square Crank Type
NECK: 12″ I Beam, 16#
G.V.W.R.: 17,500#
TOP RAIL: None
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SIDE RAILS: 5″ Channel w/Rub Rail, Tie Down Pockets, and Chain Spools
SUSPENSION: Heavy Duty 30,000# Adjustable
CROSSMEMBERS: 3″ Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle): 8,000#
