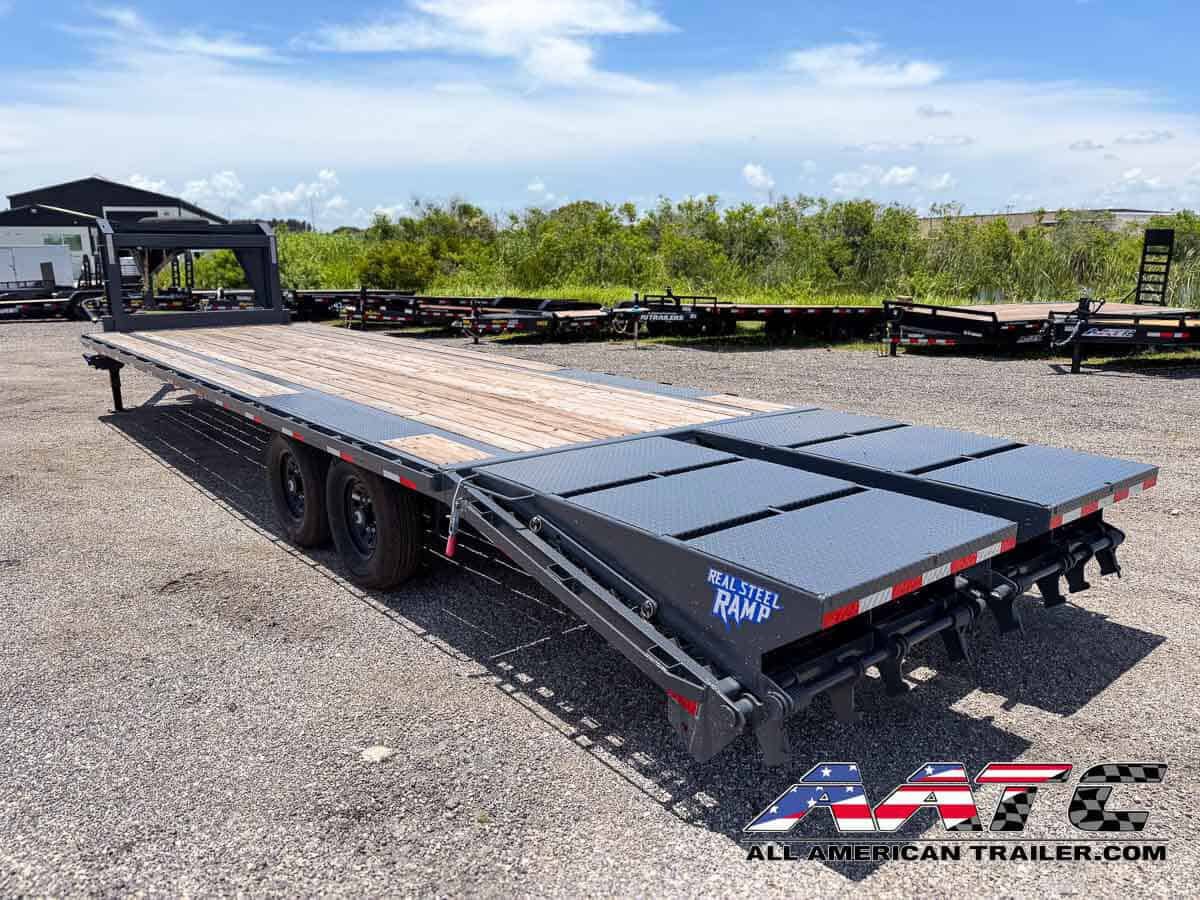

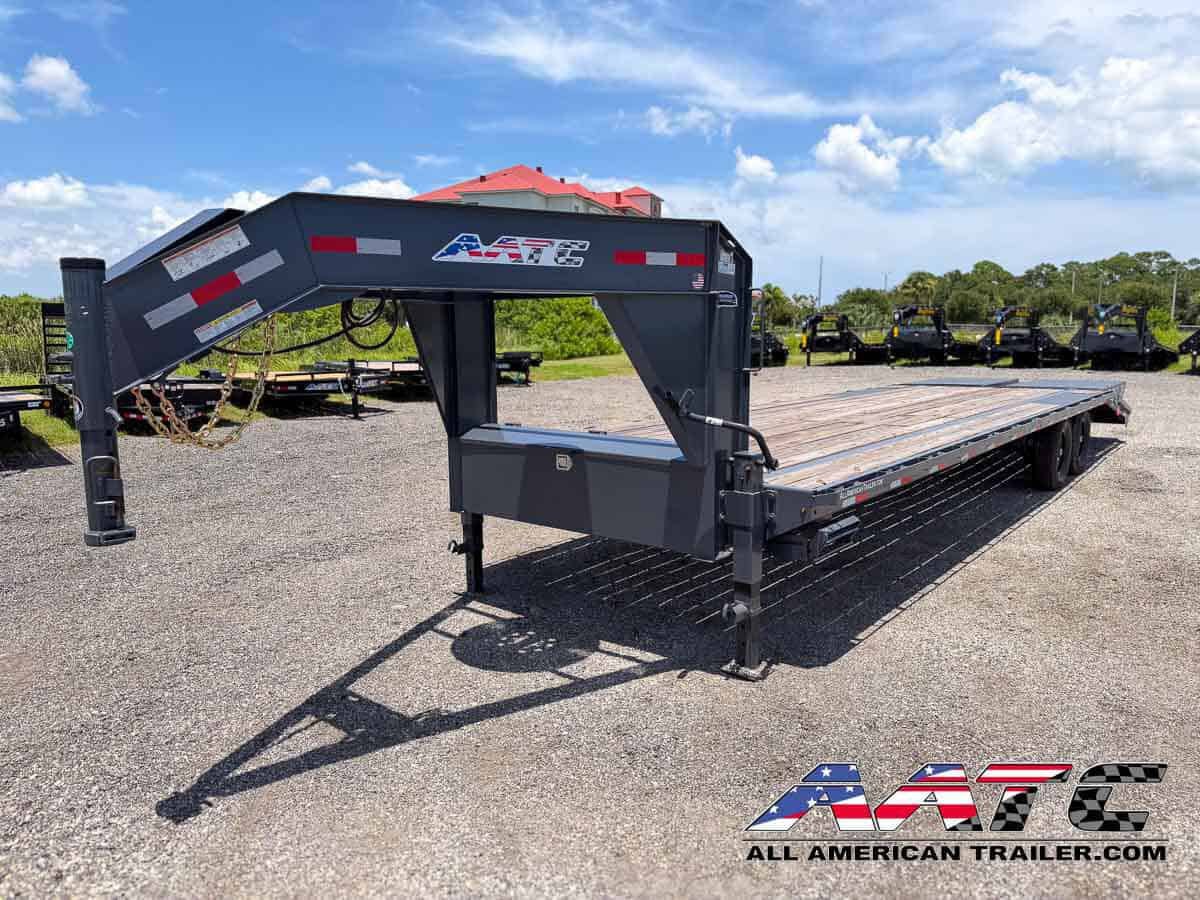

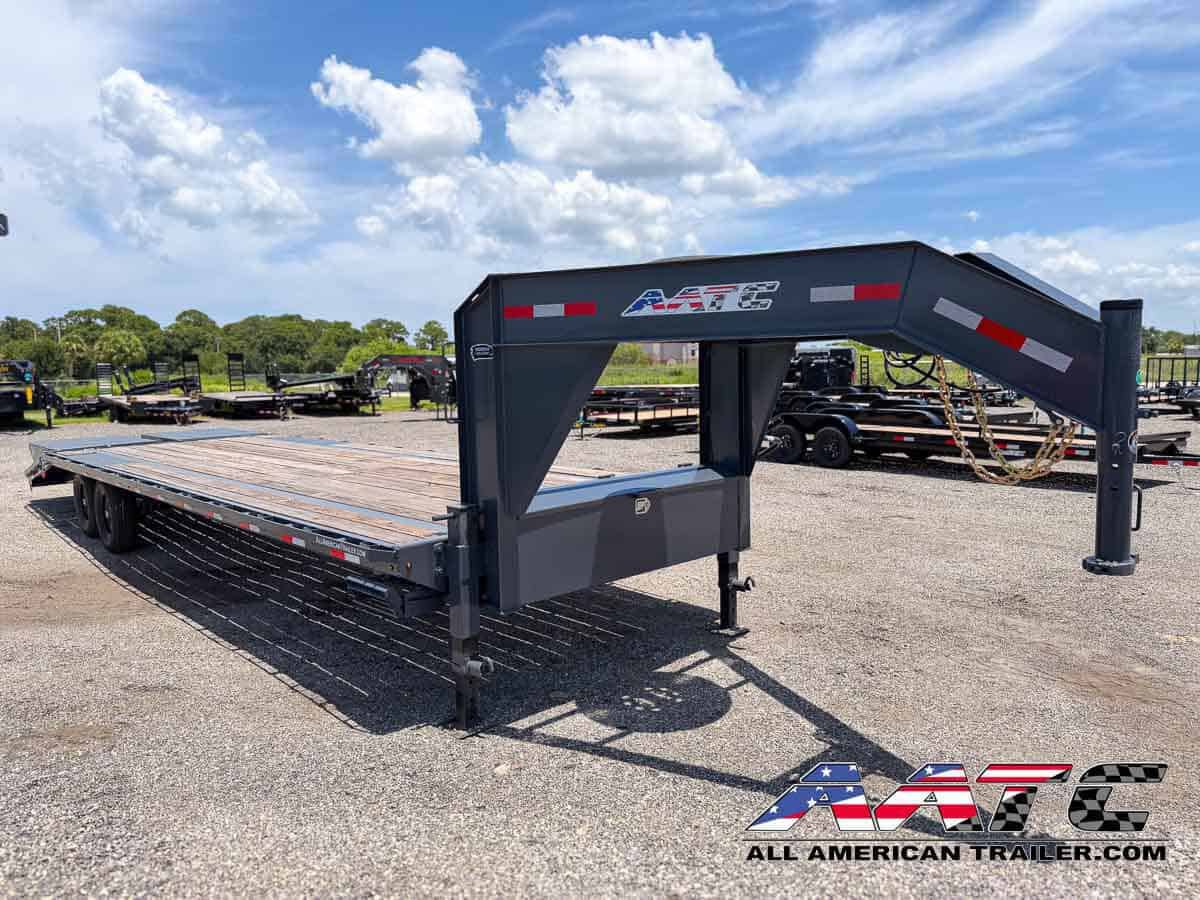

GN14-20+5MR AATC 25′ GOOSENECK 15,500 GVWR REAL STEEL RAMPS

Standard Features:
– Coupler: 2-5/16″ Ball Adjustable Gooseneck Coupler
– Jacks: Dual 12,000# Drop Leg Side Wind Jacks (Bolted On)
– Deck Design: Low Profile Bed, Pierced-Beam Frame

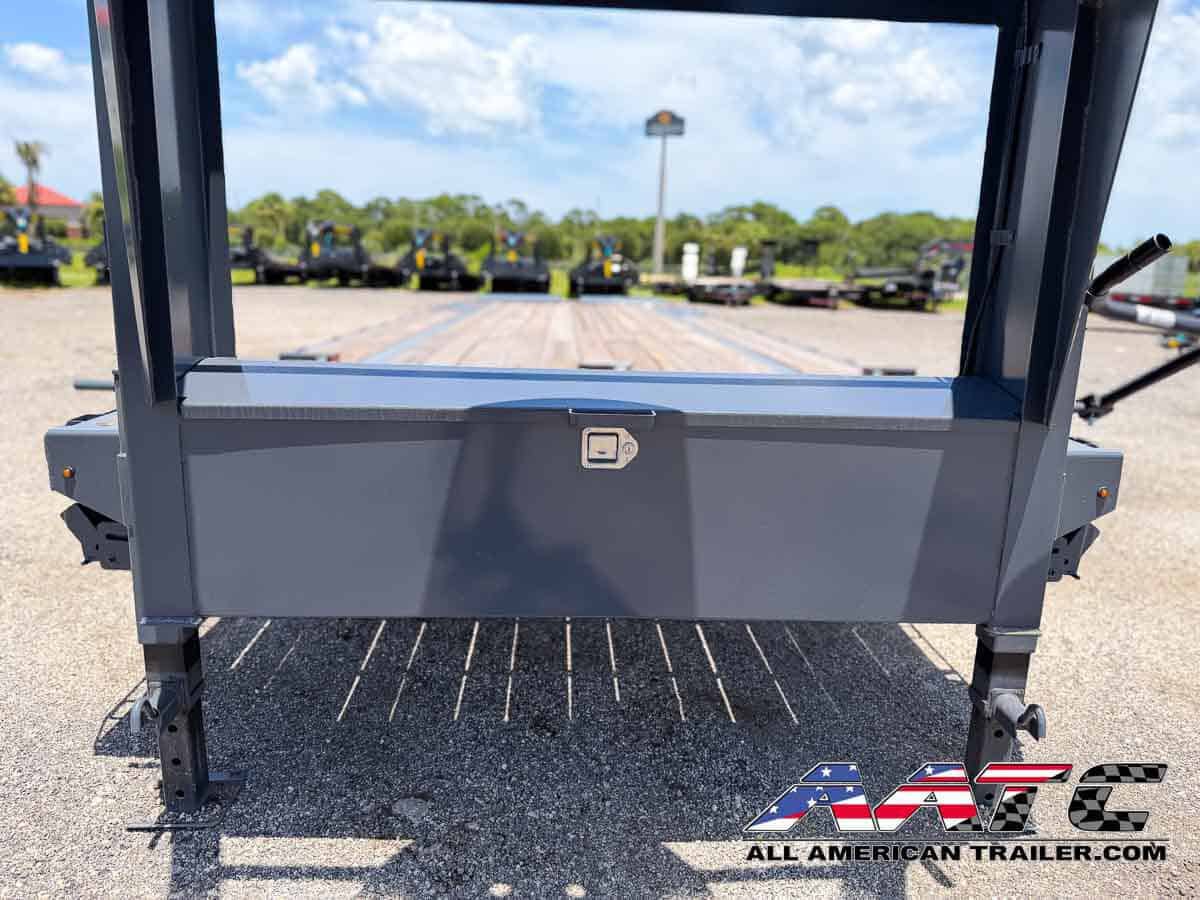

– Storage: Lockable Toolbox Between GN Uprights
– Access: (2) Retractable Side Bed Steps & Handles
– Tie-Downs: 3/8″ Heavy Duty Rub Rail with Pockets (24″ On Center) & 1-1/4″ Pipe Chain Spools
– Brakes: Nev-R-Adjust Electric Brakes on All Hubs
– Safety Systems: Complete Break-A-Way System with Charger & Dual 3/8″ Grade 70 Safety Chains with Latch Hooks
– Lighting: Grommet Mount Sealed L.E.D. D.O.T. Stop, Tail, Turn & Clearance Package
– Wiring: Modular Sealed Wiring Harness with 7-Way RV Plug

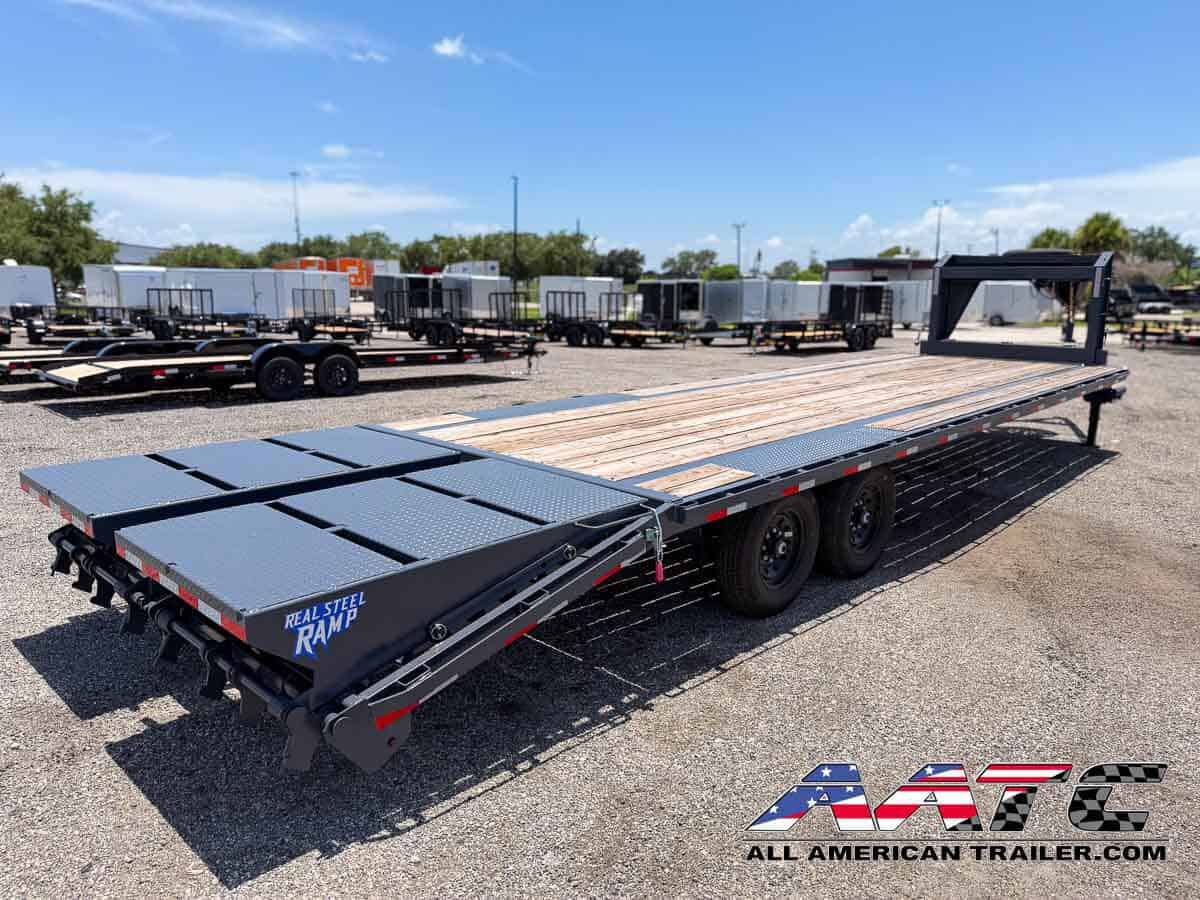

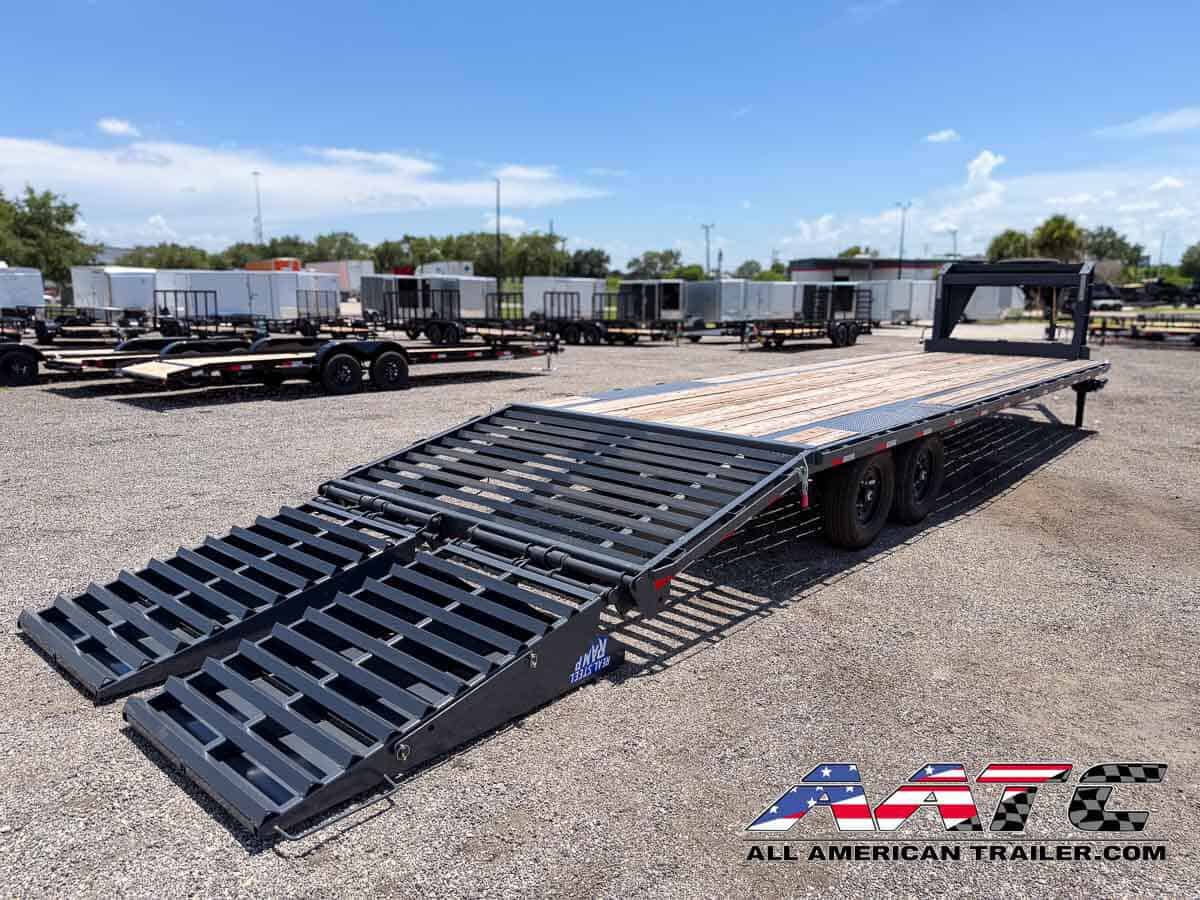

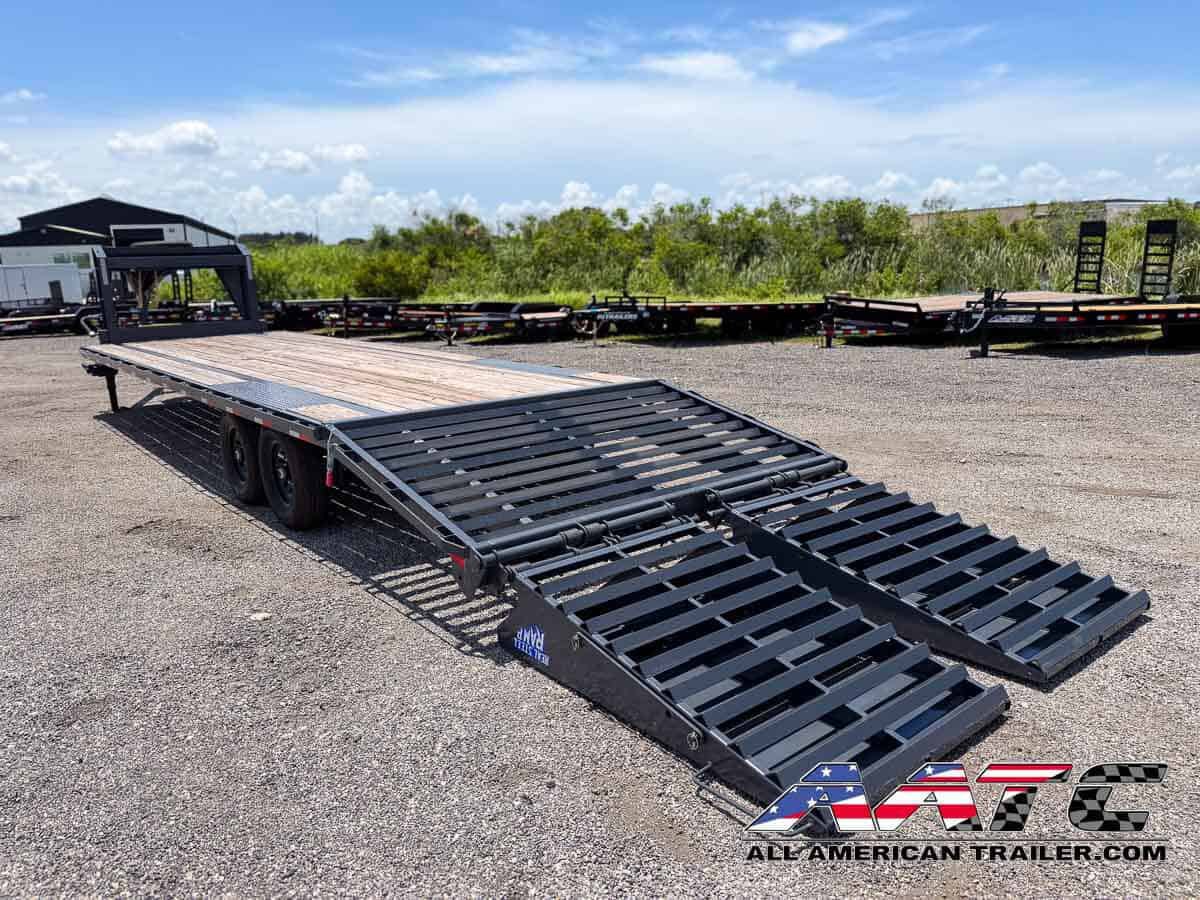

– Loading System: 5′ Dovetail with 5′ Real Steel Ramps (Double Hinged, Spring Assist Flip-Over)
– Wheels & Tires: Radial Tires with Spare Tire & Wheel Included (Top of Neck Mount)

Specifications:
G.V.W.R.: 15,500#
AXLE: (2) 7,000# Dexter Cambered E-Z Lube w/Electric Brakes
G.A.W.R. (Ea. Axle): 7,000#
FRAME: 12″ I-Beam
NECK: 12″ I-Beam
CROSSMEMBERS: 3″ Channel
WIDTH: 102″ Overall Width
SIDE RAILS: 5″ Channel w/ Rub Rail, Pockets & Spools
TOP RAIL: None
FLOOR: 2″ Treated Pine

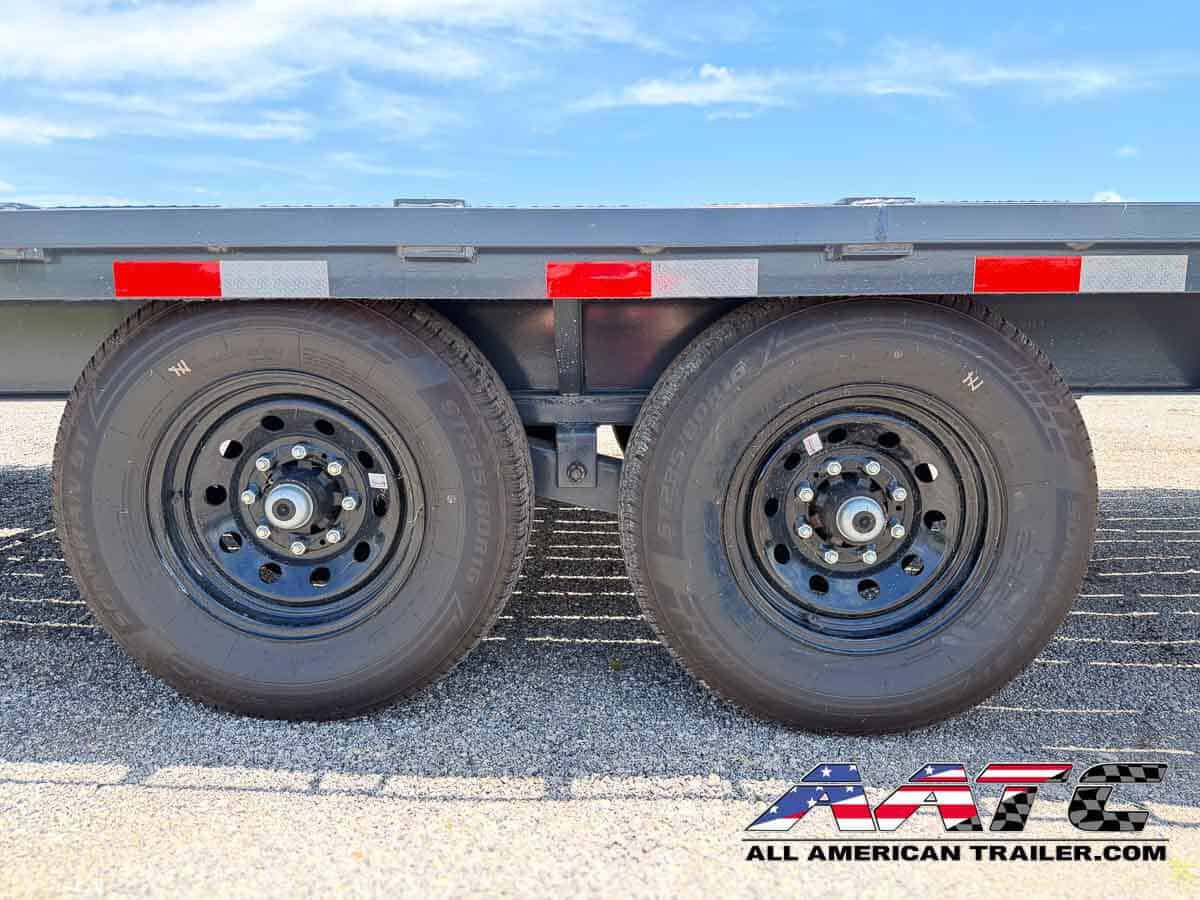

TIRE: ST235/80 R-16 Load Range E Radial
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
FINISH: Steel Shot-Cleaned with Superior Quality Protective Coating
