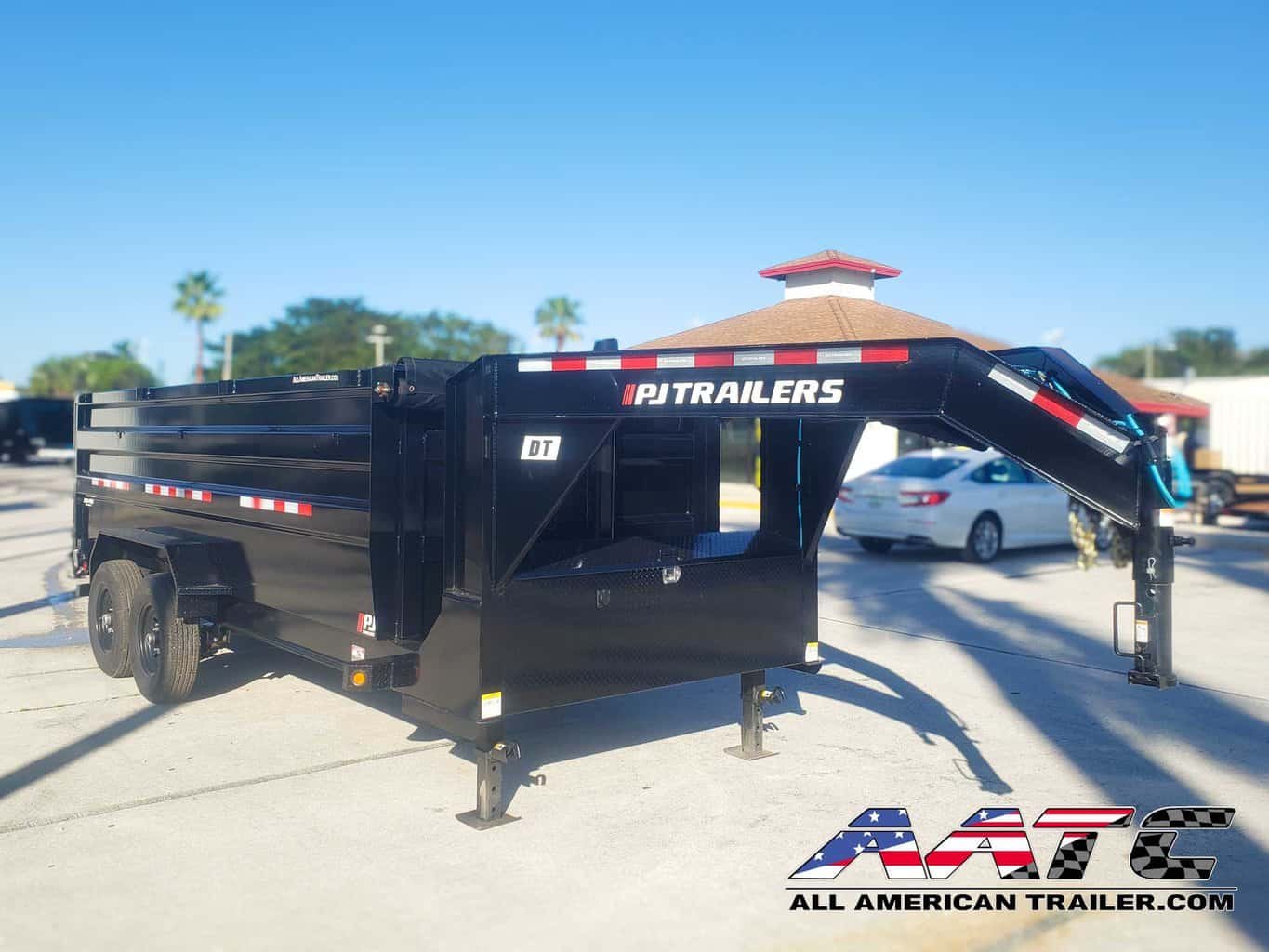

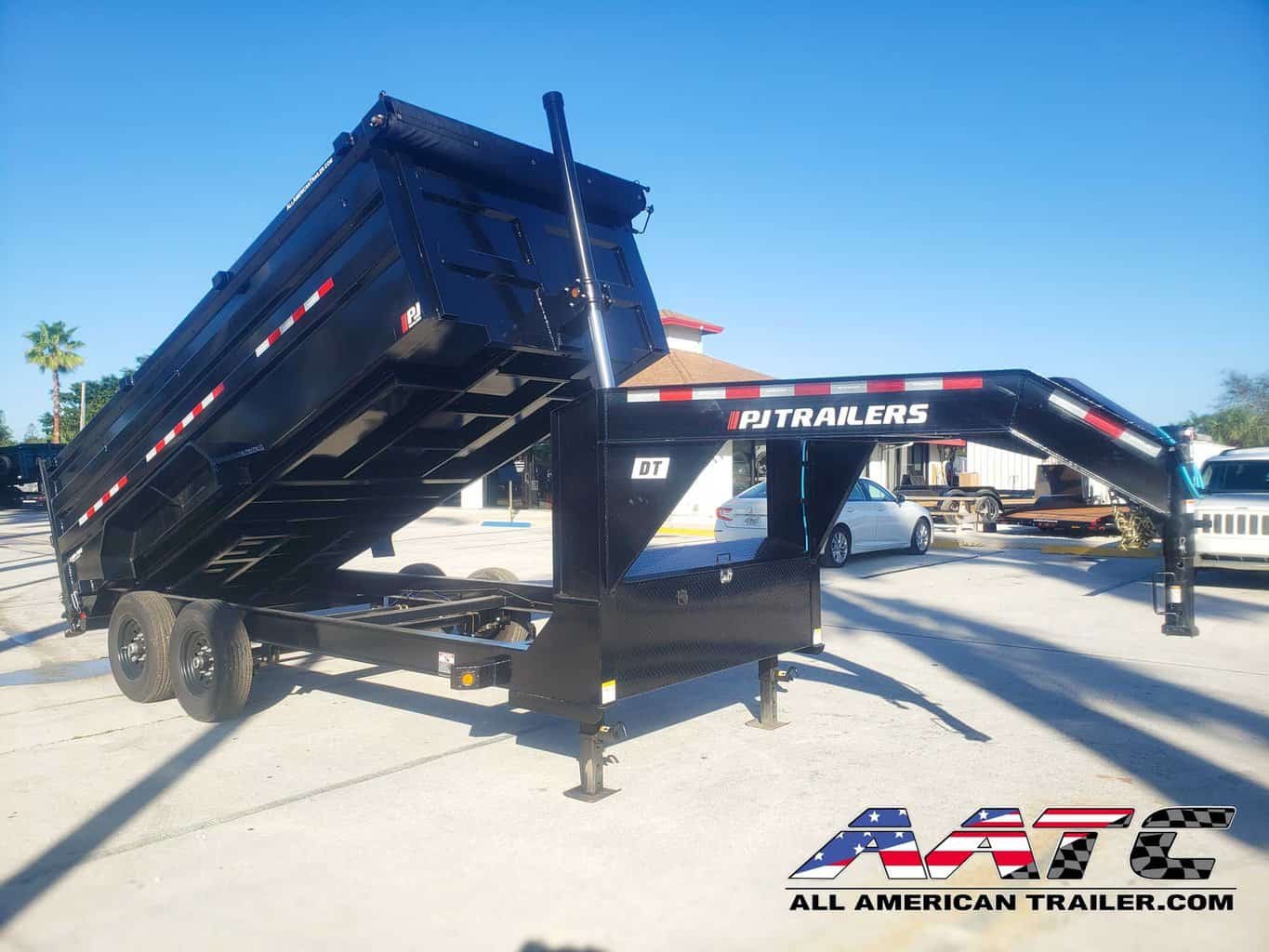

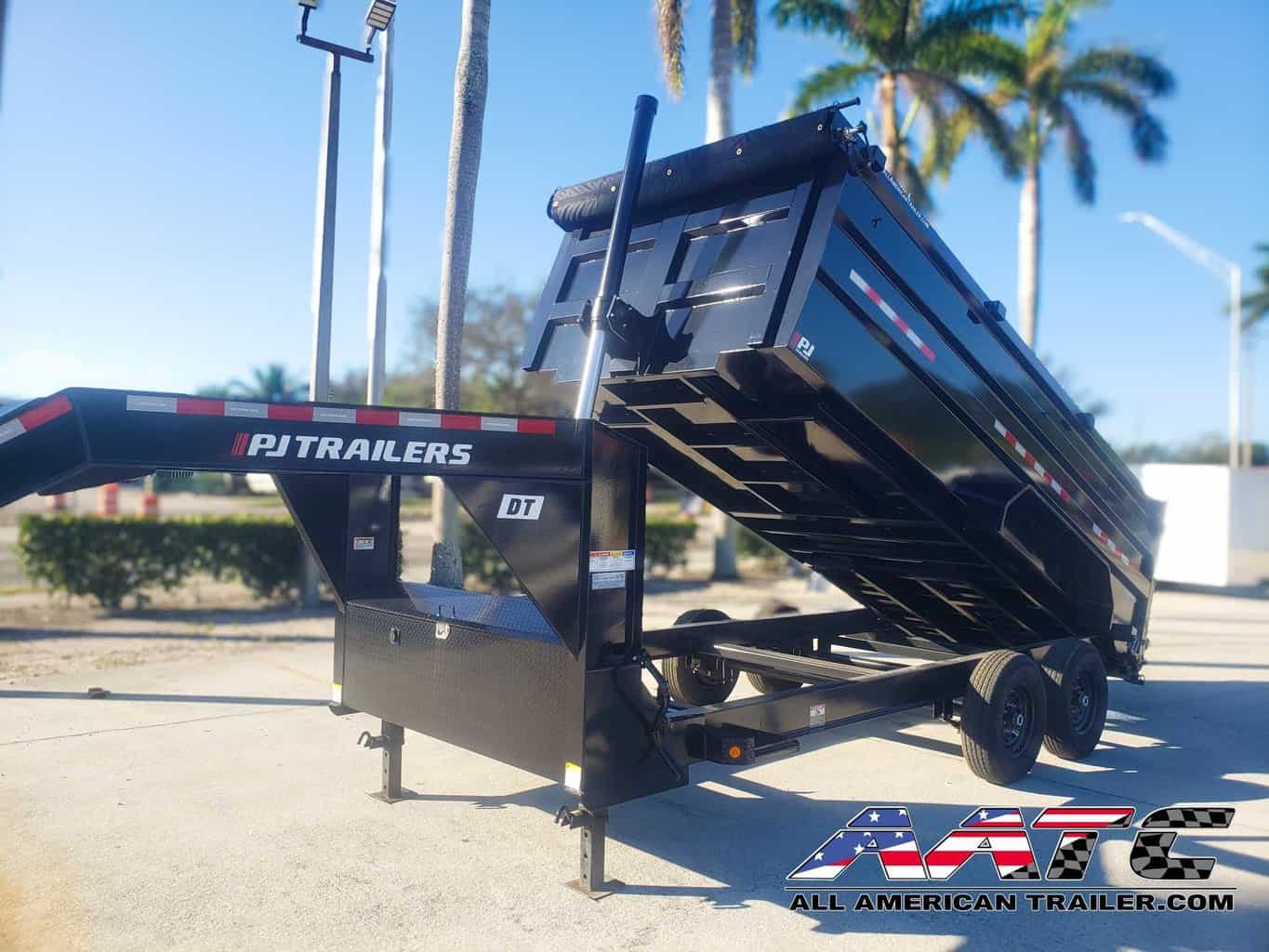

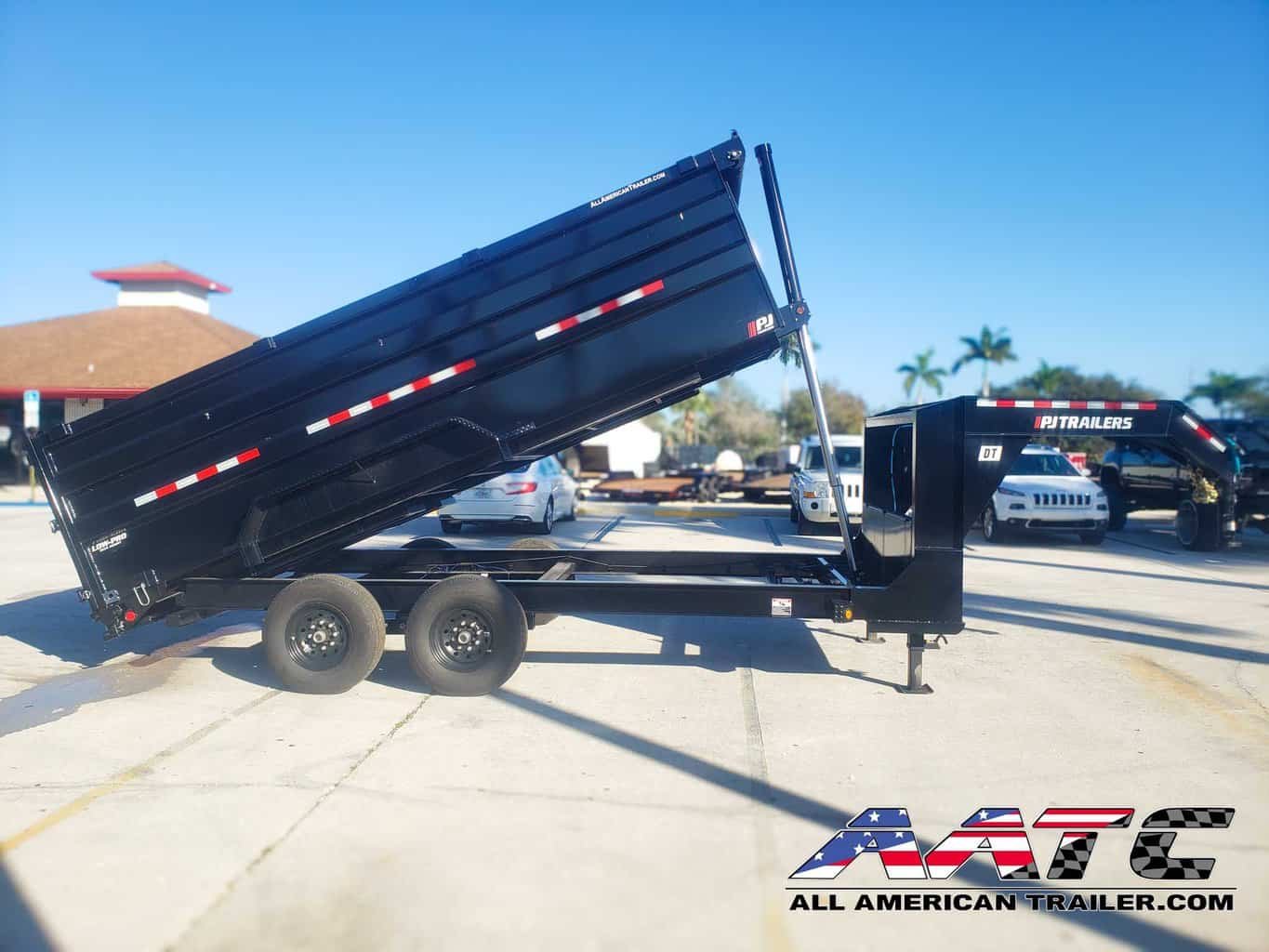

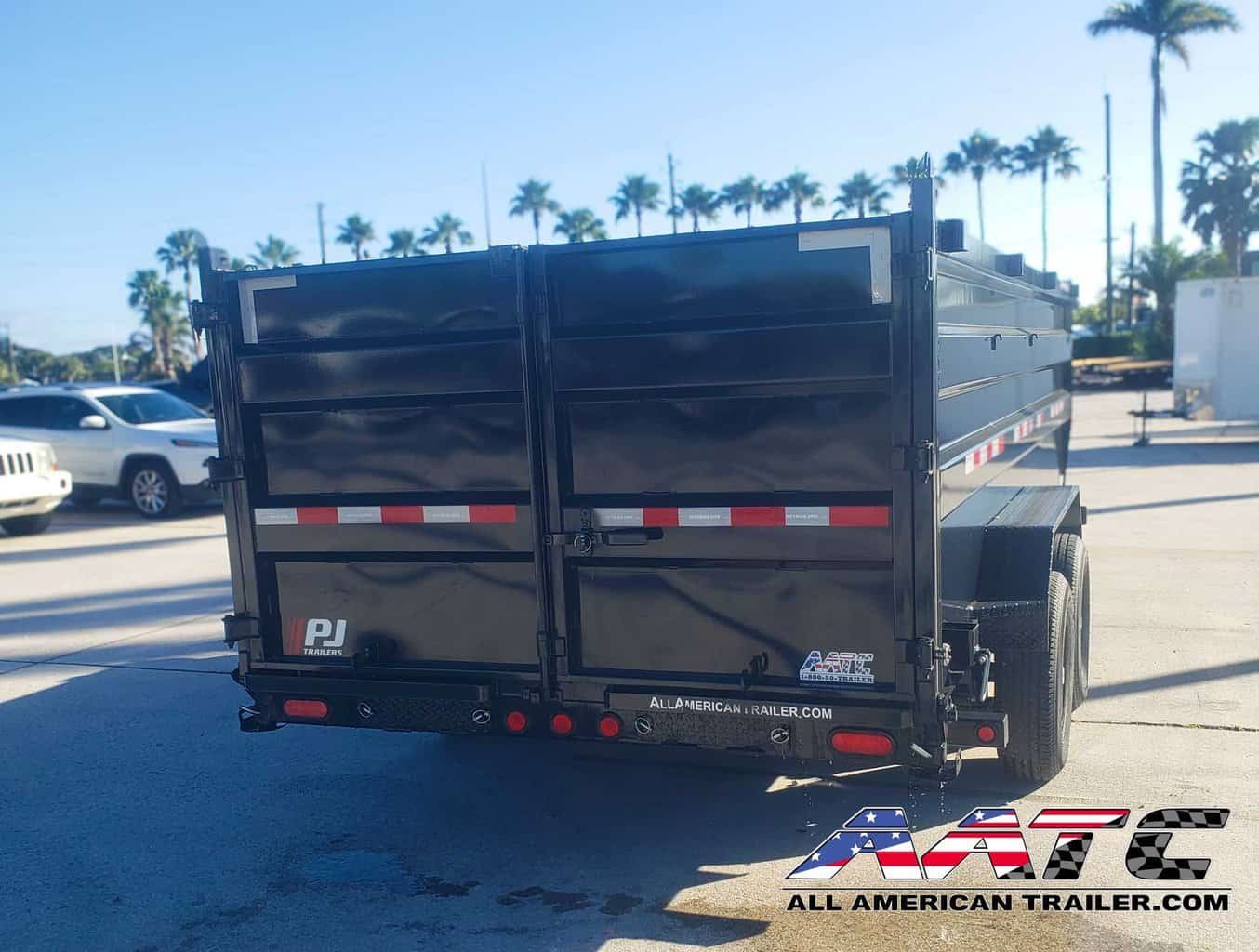

DT-162-P4-GN PJ 16′ GOOSENECK DUMP TRAILER 4′ SIDE 8 TON 16,000 GVWR 7X16 TELESCOPIC CYLINDER

Standard Features:
– 16,000lb GVWR
– Telescopic Cylinder Upgrade
– 14 Ply Load Range G Tires
– 10,000lb Jack
– Rear Jacks
– Combo Gate
– 110V Integrated Trickle Charger
– Electric Breakaway Kit w/ Charger
– DOT Reflective Tape
– 1/8” Treadplate Steel Fenders
– Lockable Toolbox (Houses Battery and Pump)
– 4 – D-Rings (Welded inside the Box)
– 40° Dump Pitch
– 12VDC Hydraulic Pump
– 12’ Control Cable
– Mounting Brackets for Roll-up Tarp
– 7ga. Steel Bed
– 10ga. Steel Sides
– DOT Approved Flush mount Lifetime LED Lights
– Sealed Bargman Wire Harness w/ 7-Way RV Plug
– Stake Pockets
– Sand Blasted, Acid Washed, Powder Coated
– Interstate (TM) Deep Cycle Battery
– Ultra Low 24”- 28” Deck Height
– 5 year Lippert Axle Warranty

Specifications:
AXLE: (2) 7,000# EZ Lube w/Elec. Brakes
JACK: 10,000# Jack (Bolted On)
TIRE: ST235/85 R-16 Load Range G (14 Ply)
FLOOR: 7 Gauge Smooth Steel
FRAME: 8″ x 10lb I Beam Frame & Tongue
WHEEL: 16″ Black Mod Wheels
LIGHTS: DOT Approved Flushmount Lifetime LED Lights
TONGUE: 8″ I Beam Tongue
COUPLER: 2-5/16″ Adjustable Bulldog Coupler
G.A.W.R. (Ea. Axle): 7,000#
G.V.W.R.: 16,000#
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: 6 Leaf Slipper Spring Suspension
FENDERS: 1/8″ Treadplate Steel Fenders
CROSSMEMBERS: 3″ Channel Crossmembers 16″ On Center
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Sand Blasted, Acid Washed, Powder Coated
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
