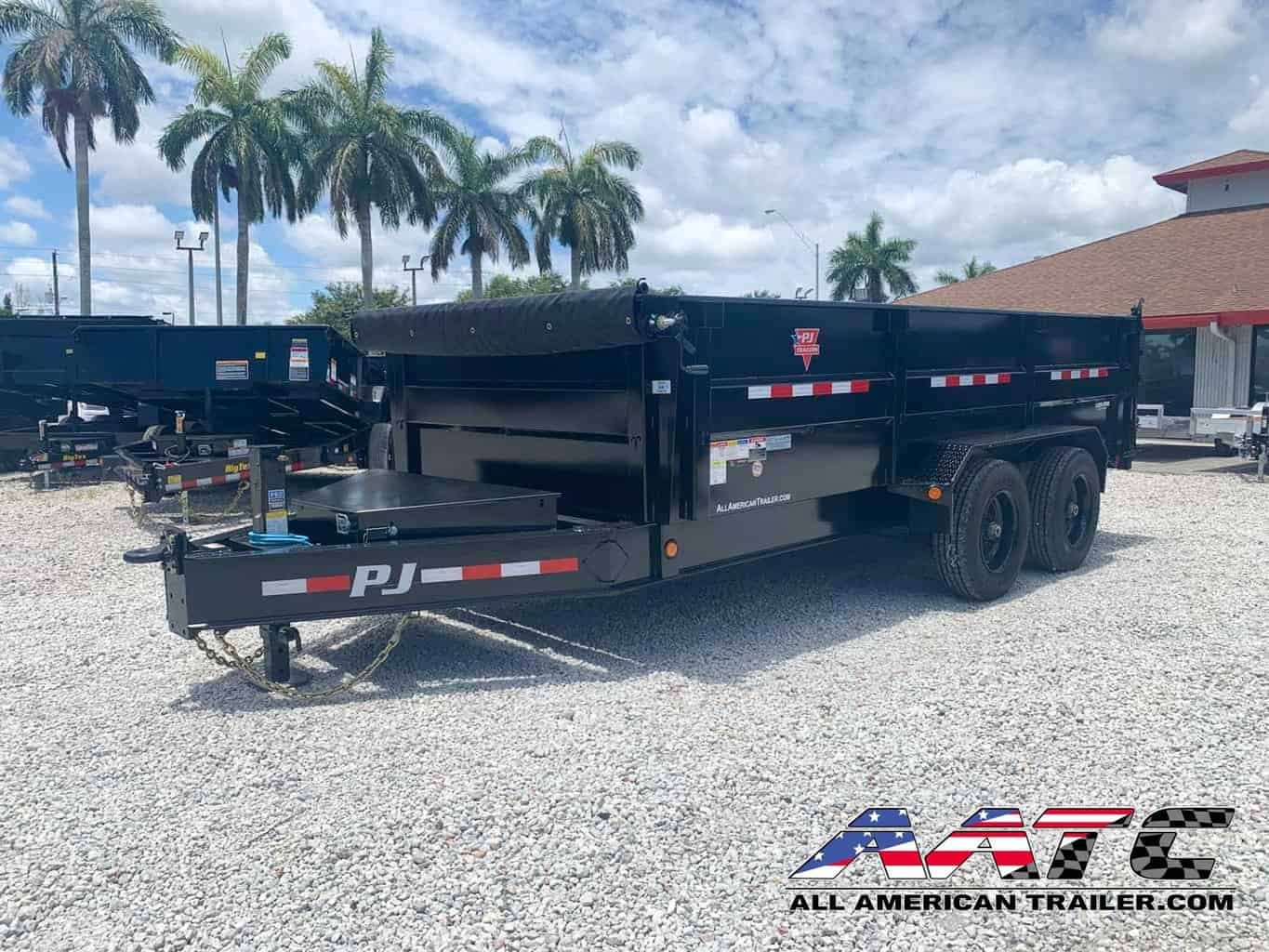

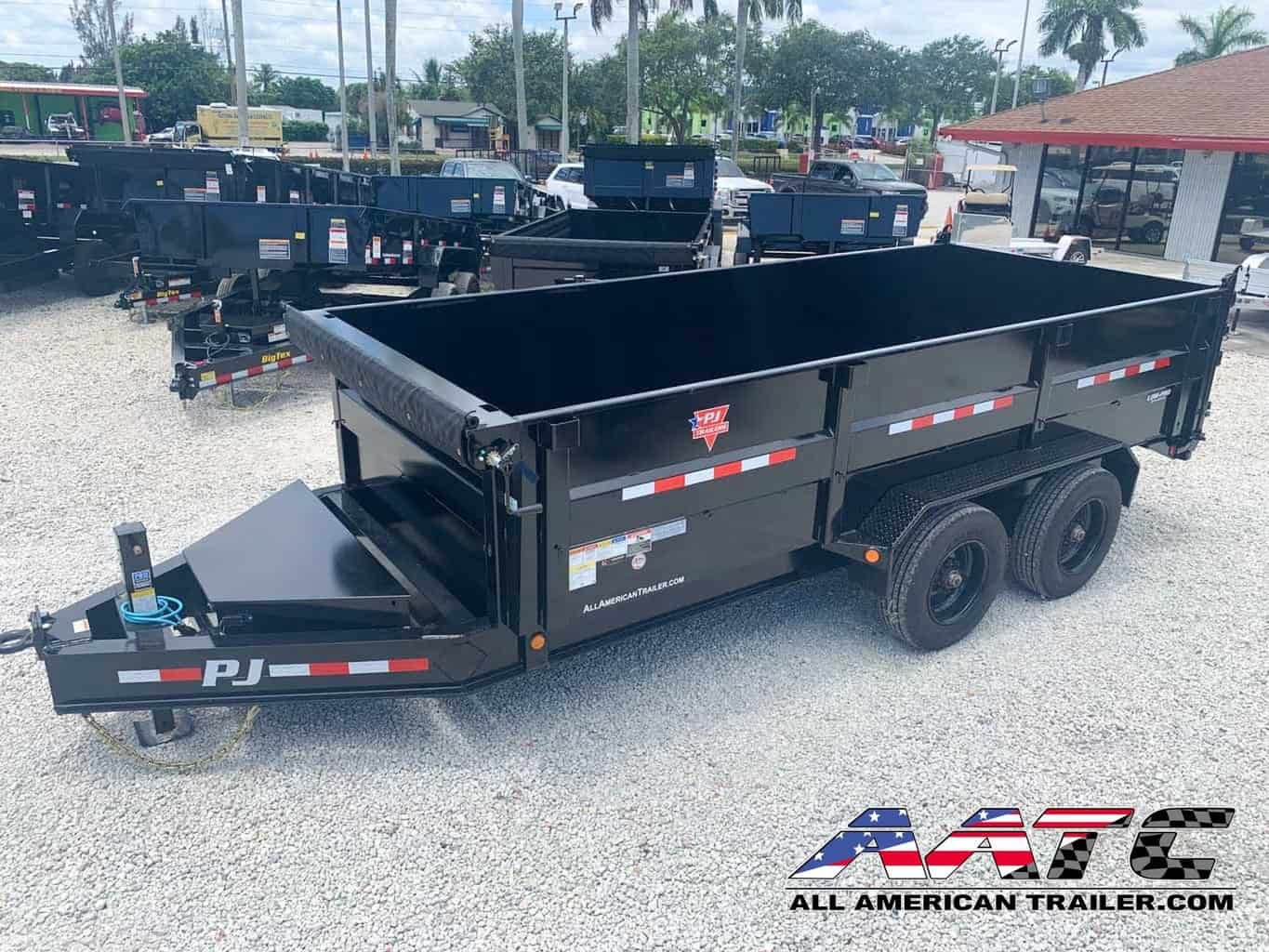

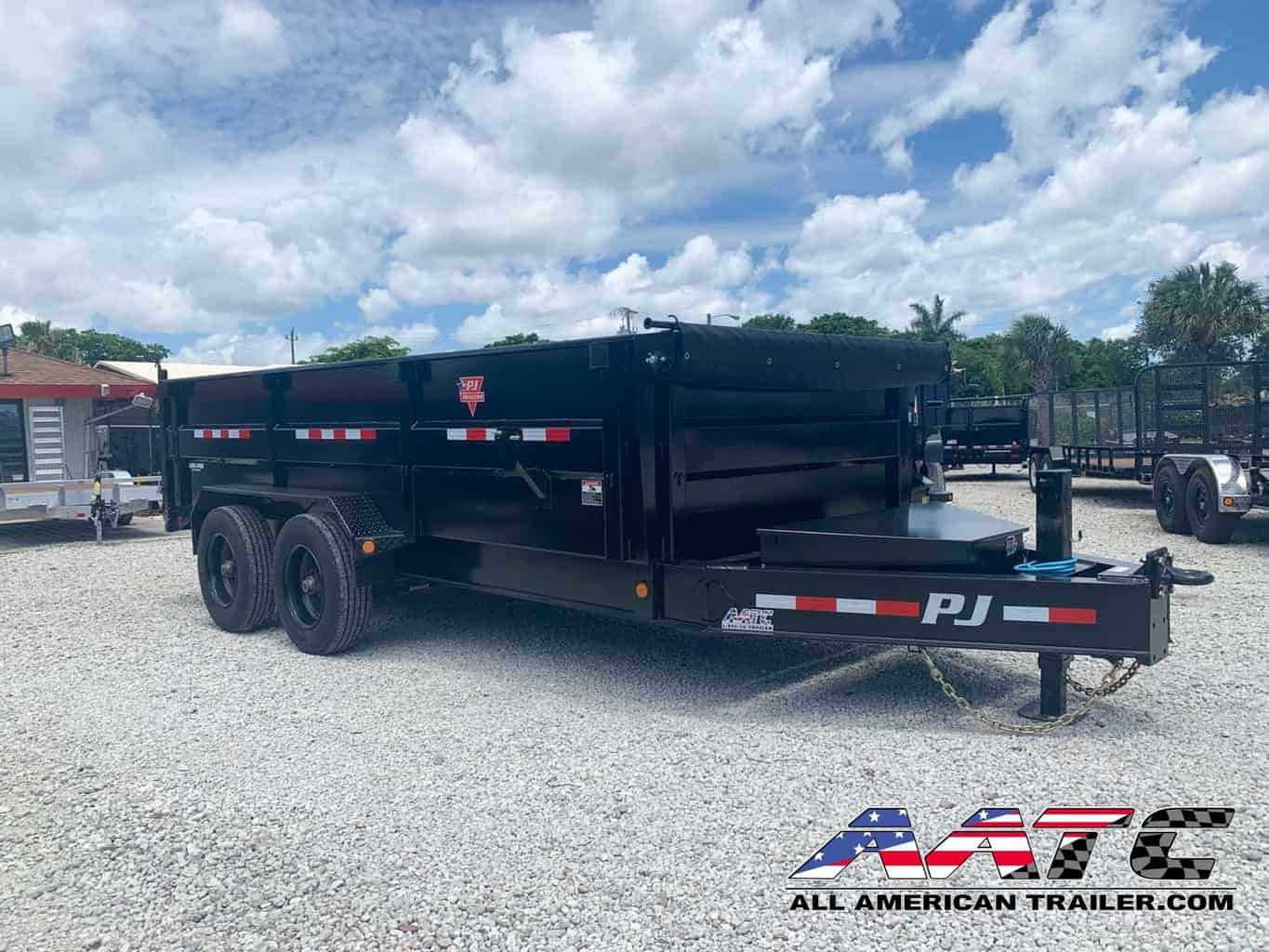

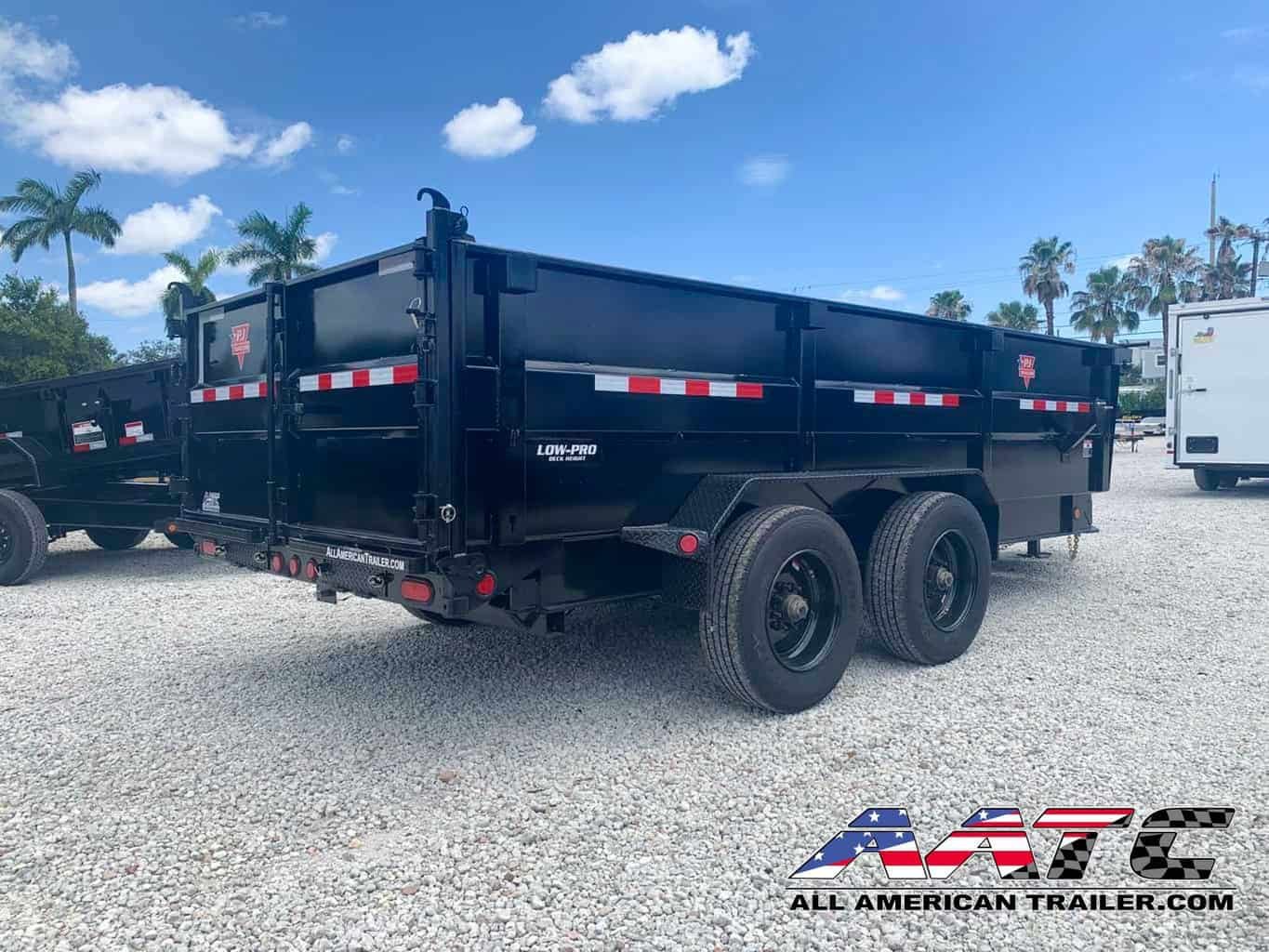

DE-162-P4 PJ 7X16 BUMPER PULL DUMP TRAILER 10 TON 4′ HIGH SIDES

Standard Features:
– 20,000 lbs. GVWR
– 10,000 lb. x (2) G.A.W.R
– Spring Loaded Drop Leg Jacks (10,000 lb.)
– 17.5″ Grey Wheels
– ST235/75/R17.5 Radial Tires (6,005 lbs.)
– 3-5/8″ x 1-1/2″ (ID) Stake Pockets
– Pull Bar Mesh Tarp Kit
– 1/8″ Treadplate Steel Fenders
– 10″ x 19 lb. I-beam Tongue
– 3″ Channel Crossmembers on 16″ Centers
– 7ga. Steel Bed
– Double Insulated Wiring Harness
– All-Weather Wiring Harness (7-way RV)
– Powdercoat

Specifications:
AXLE: (2) 10,000# Dual Wheel Oil Bath w/Elec. Brakes
JACK: Spring Loaded Drop Leg Jacks (10,000 lb.)
TIRE: ST235/75/R17.5 Radial Tires (6,005 lbs.)
FLOOR: 7ga. Steel Bed
FRAME: 12″ x 16# I Beam
WHEEL: 17.5″ Grey Wheels
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 10″ x 19 lb. I-beam Tongue
COUPLER: 30k 2-5/16″ Adjustable Crank Type
G.A.W.R. (Ea. Axle): 10,000#
G.V.W.R.: 20,000 lbs. GVWR
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SUSPENSION: Dexter Torflex® Torsion Suspension
FENDERS: 1/8″ Treadplate Steel Fenders
CROSSMEMBERS: 3″ Channel Crossmembers on 16″ Centers
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
STAKE POCKETS: 3-5/8″ x 1-1/2″ (ID) Stake Pockets
