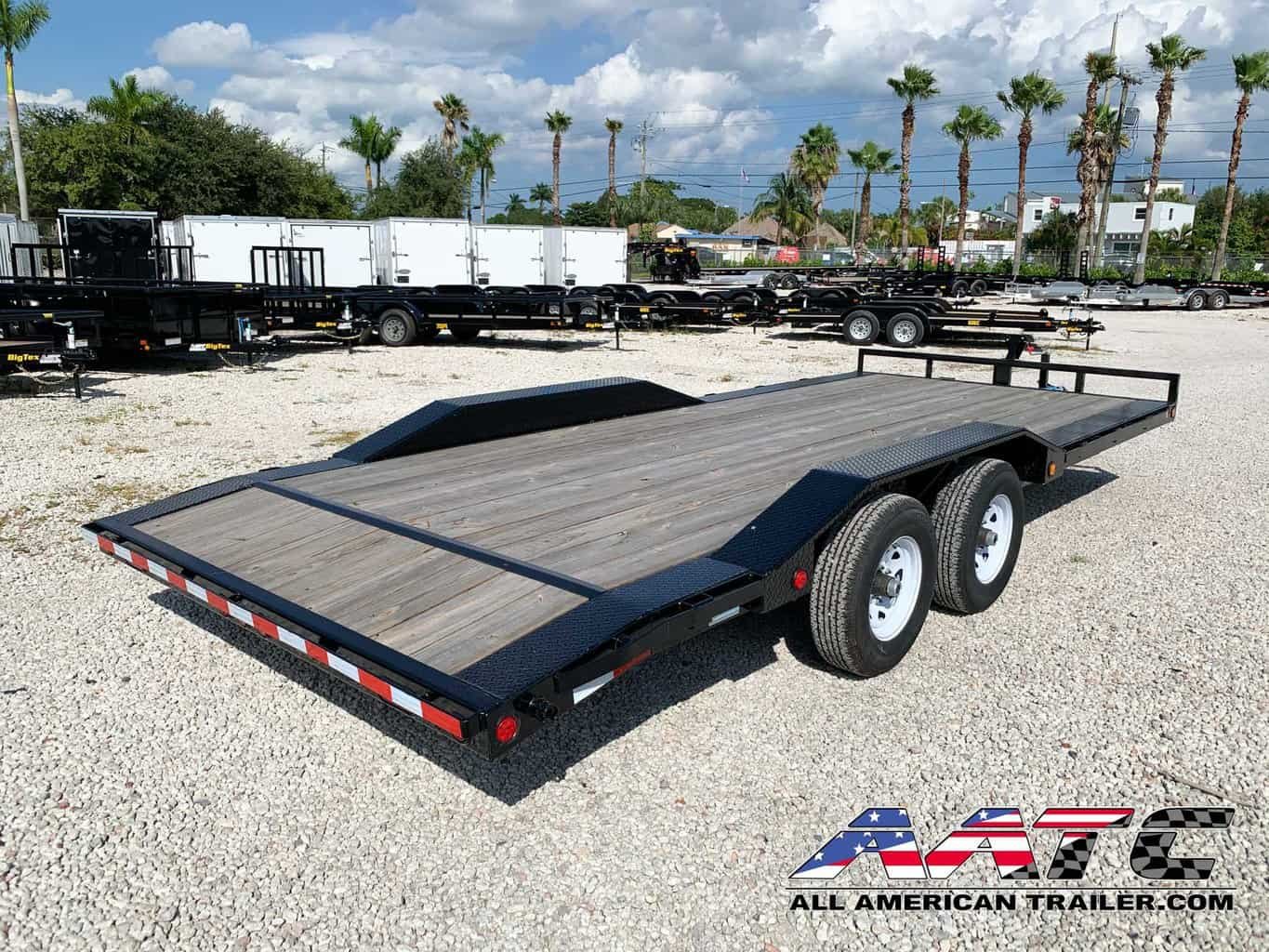

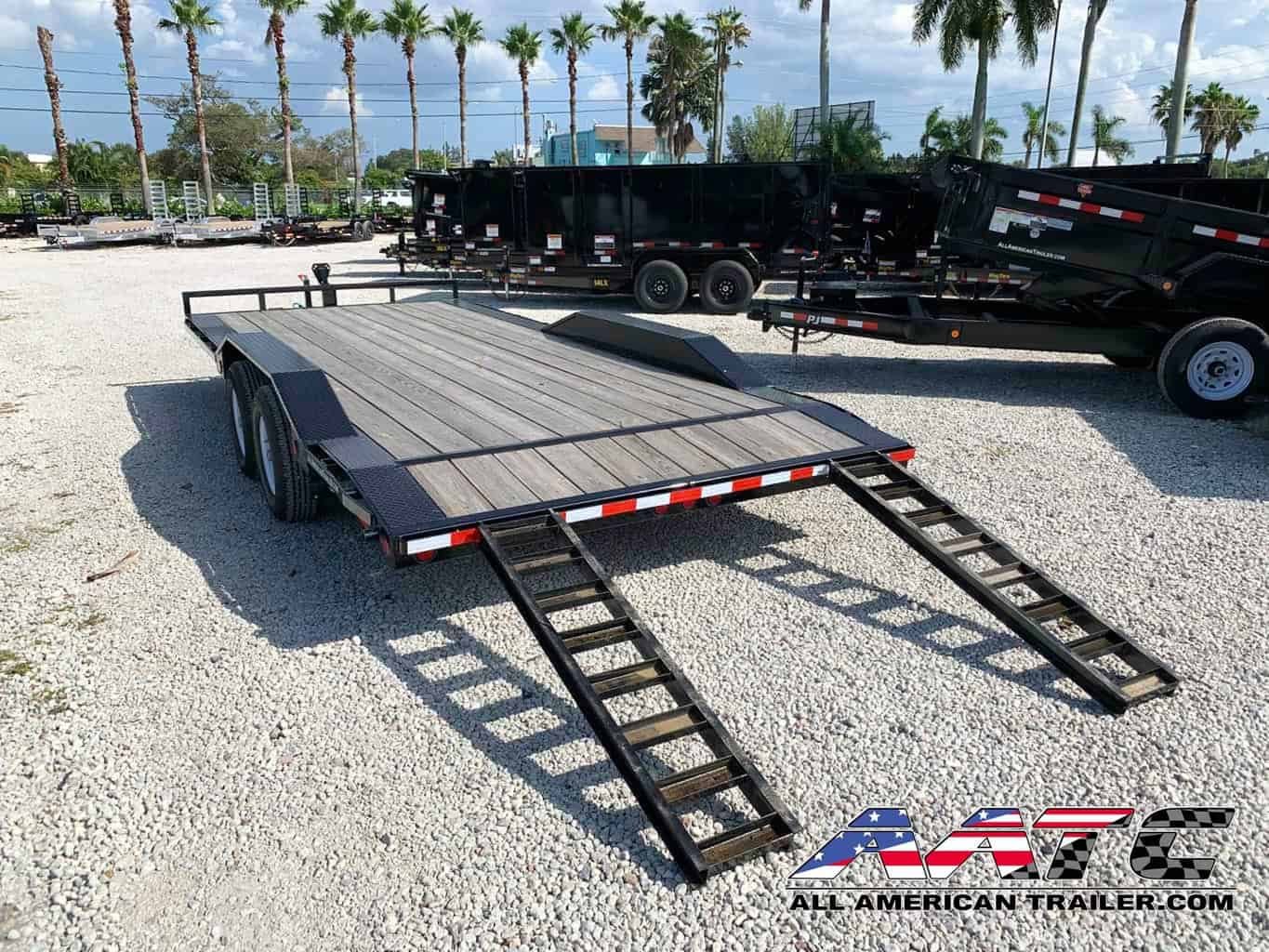

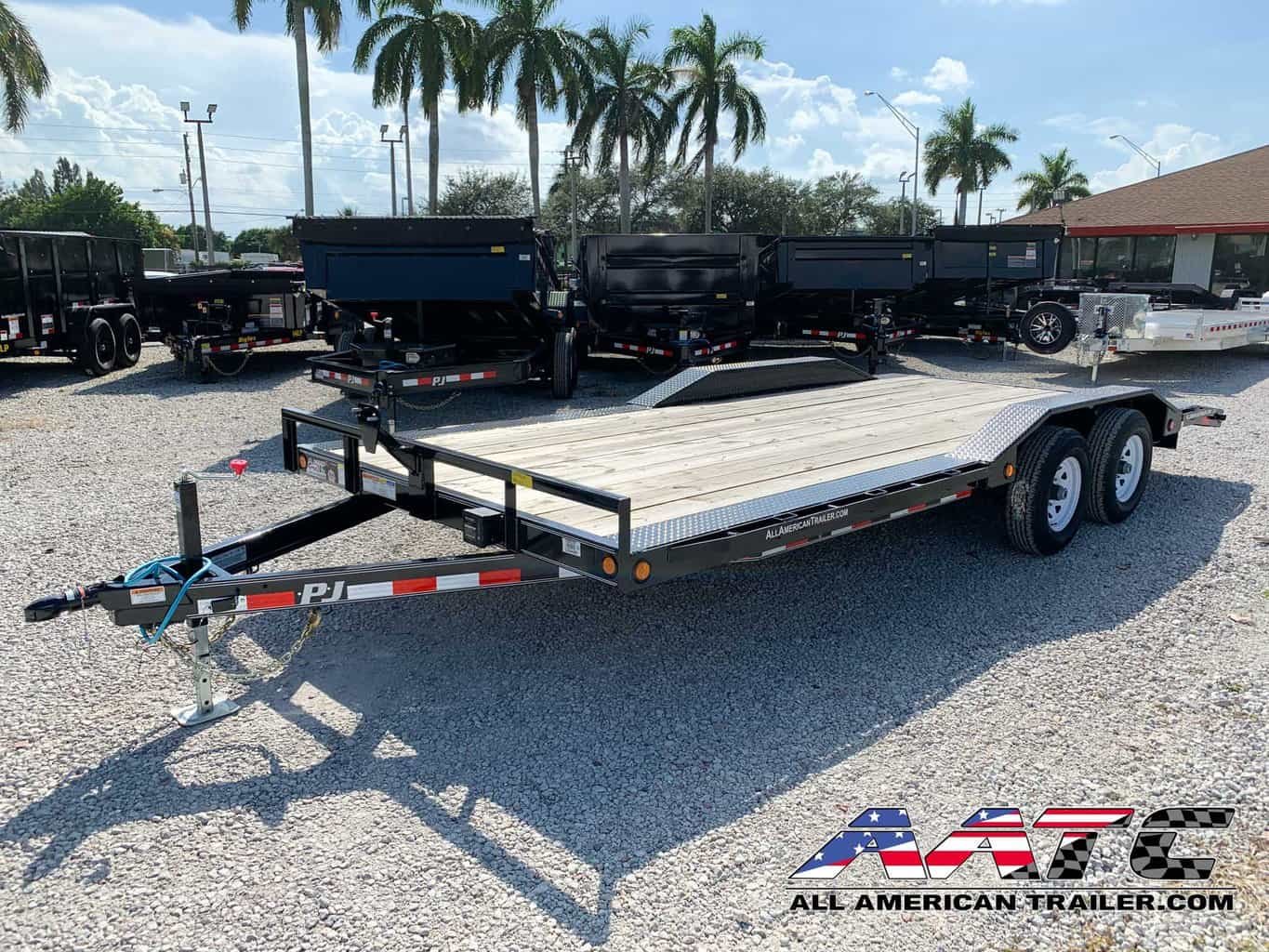

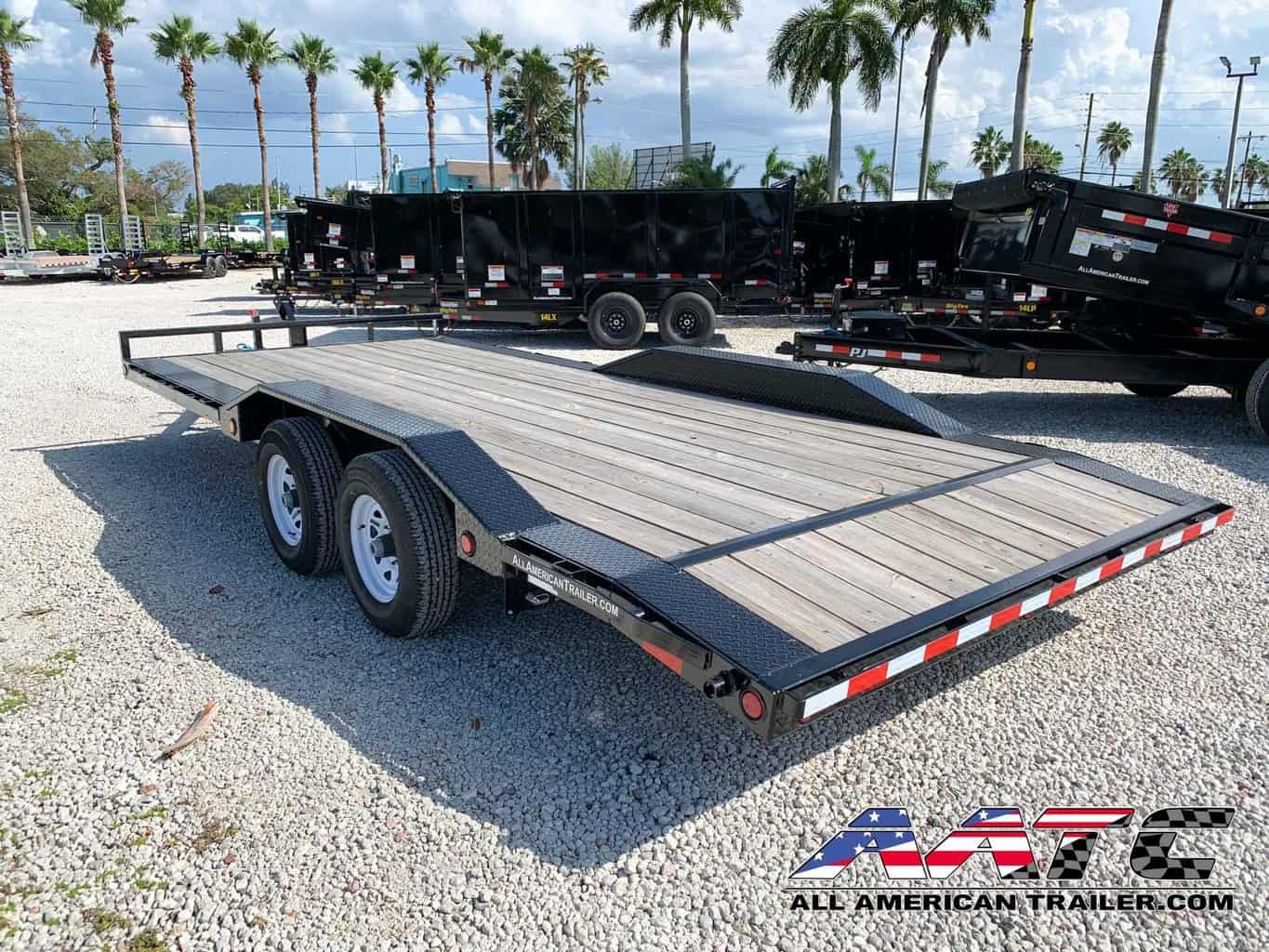

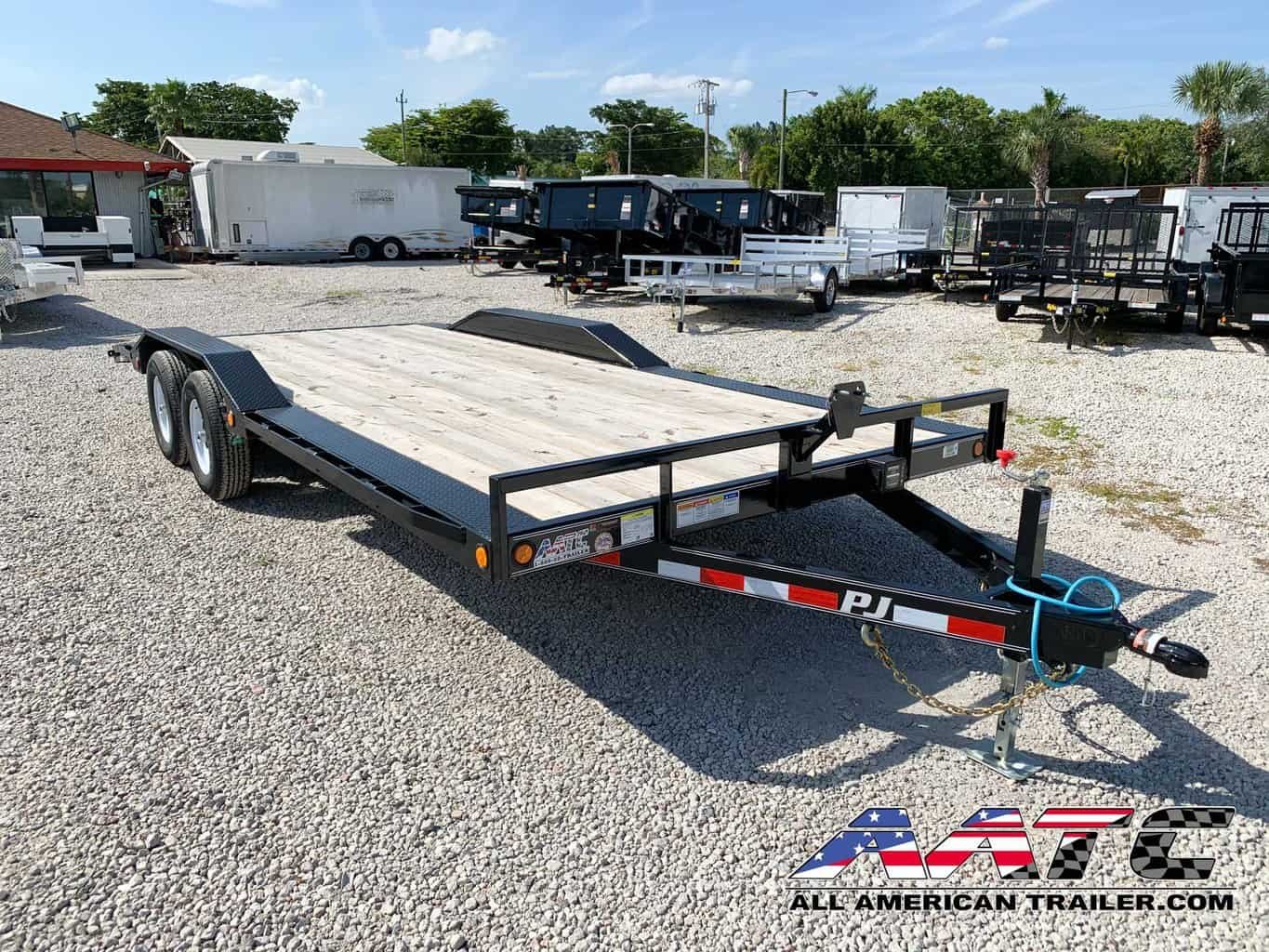

B5-202-SIR PJ 20′ EQUIPMENT TRAILER 5 TON 10,000 GVWR FULL WIDTH DECK 8.5X20 DRIVE OVER FENDERS

Standard Features:
– Rubrail and Tie Down Pockets Along Sides
– Sand Blasted, Acid Washed, Powder Coated
– 5′ Channel Ramps w/ Holder
– Adjustable 2 5/16” Ball Bulldog Coupler
– 5” Channel Frame & Tongue
– Dual Bulldog Rear Support Jacks
– Lippert Brand EZ Lube Axles
– 6 Leaf Slipper Spring Suspension
– 8.5 Width Between Fenders
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– 2” Treated Pine Lumber Deck
– Sealed Modular Wiring Harness
– Complete Break-A-Way System w/Charger
– 15″ Radial Tires

Specifications:
AXLE: (2) 5,200# EZ Lube w/Electric Brakes
JACK: Top Wind Drop Leg Jack
TIRE: ST205/75 R-15 Load Range C
FLOOR: 2″ Treated Pine Lumber Deck
FRAME: 5″ Channel Frame & Tongue
WHEEL: 15″ White Spoke Wheels
FINISH: Sand Blasted, Acid Washed, Powder Coated
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Tool Tray in Tongue
COUPLER: Adjustable 2-5/16″ Bulldog Coupler
FENDERS: 9″ High Drive Over Fenders DP Steel Fenders
G.V.W.R.: 10,000#
UPRIGHTS: NONE
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: 4 Leaf Double Eye Spring Suspension
CROSSMEMBERS: 3″ Channel Crossmembers on 24″ Centers
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
G.A.W.R. (Ea. Axle): 5,200#
