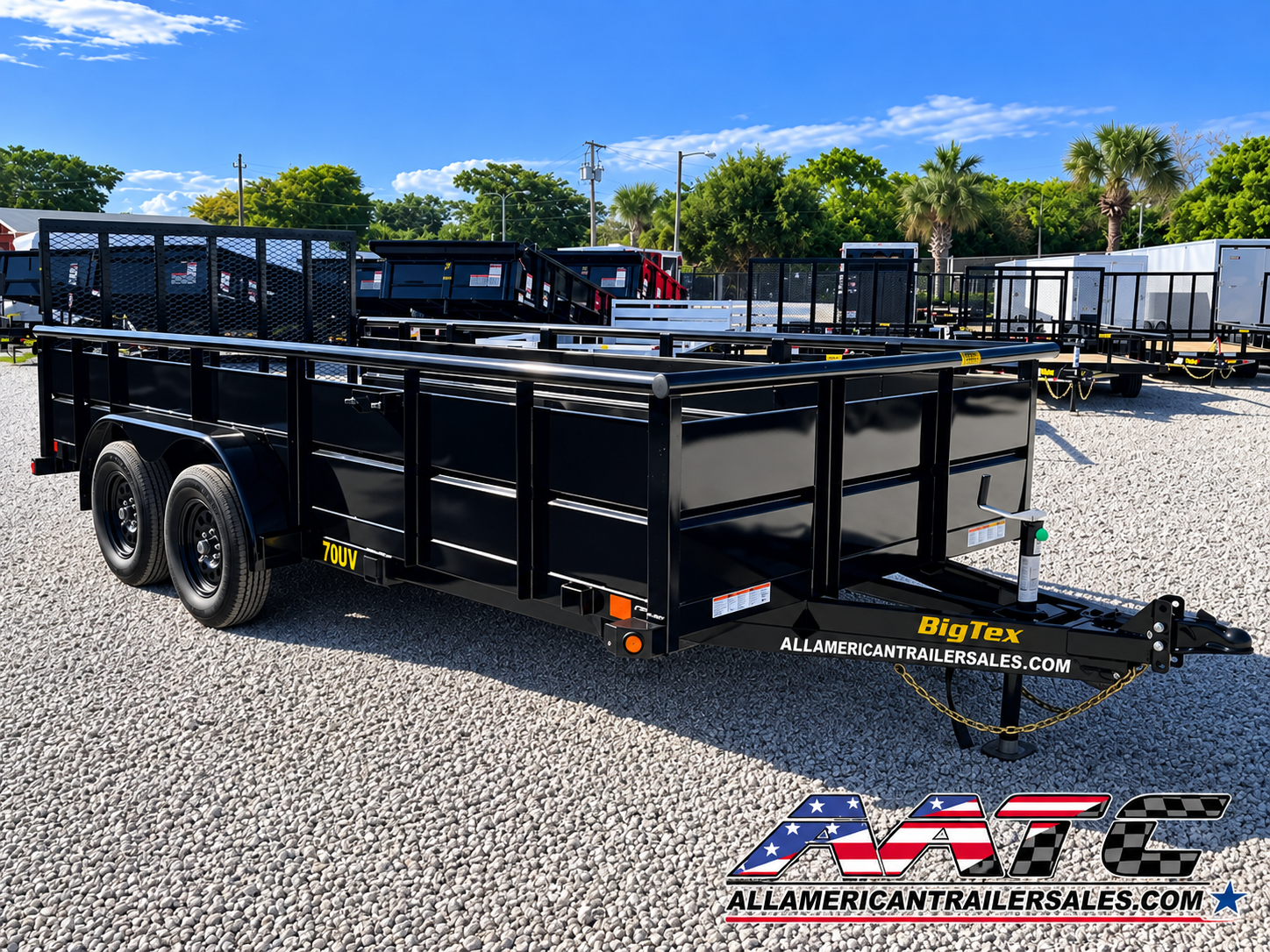

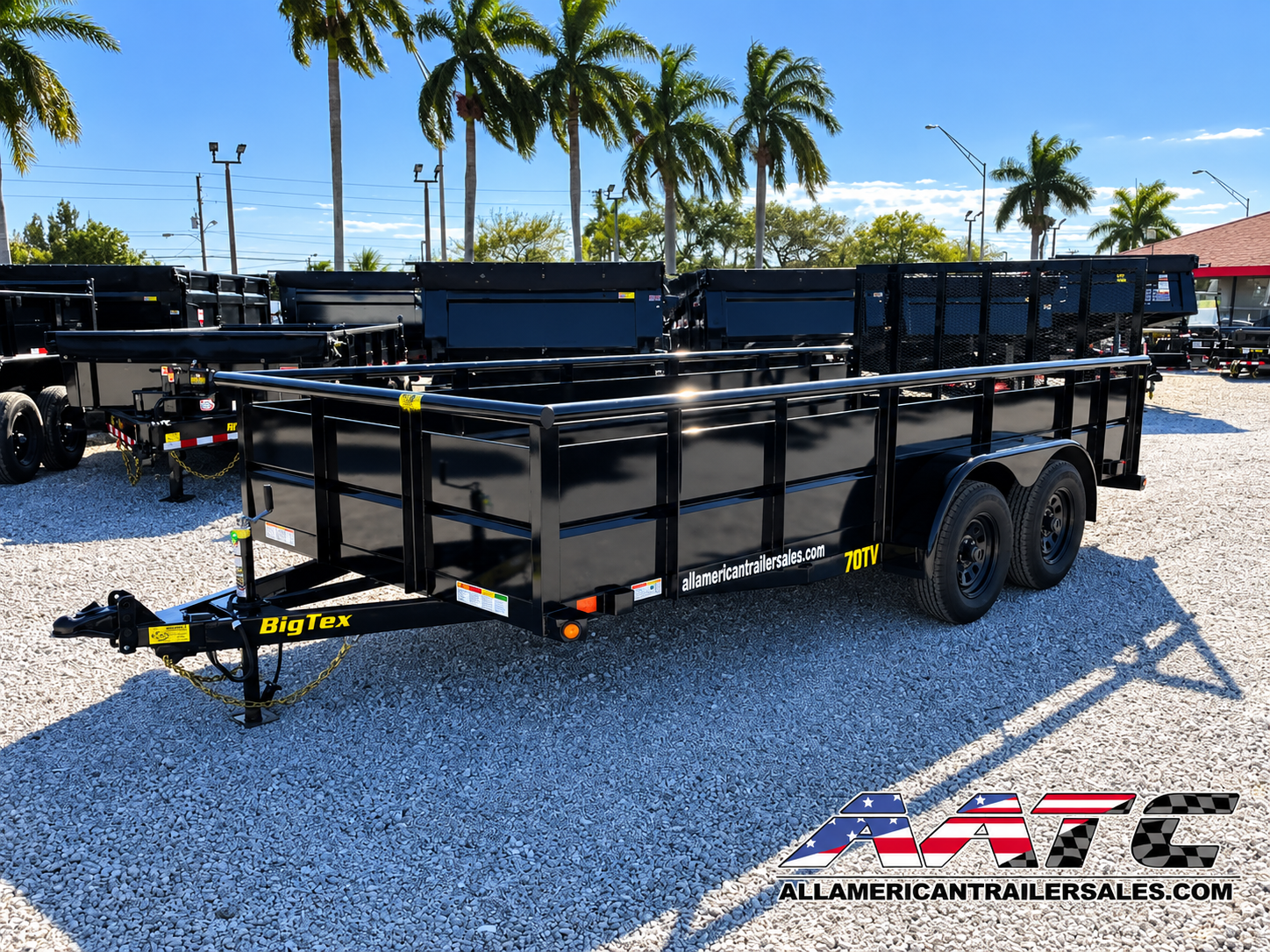

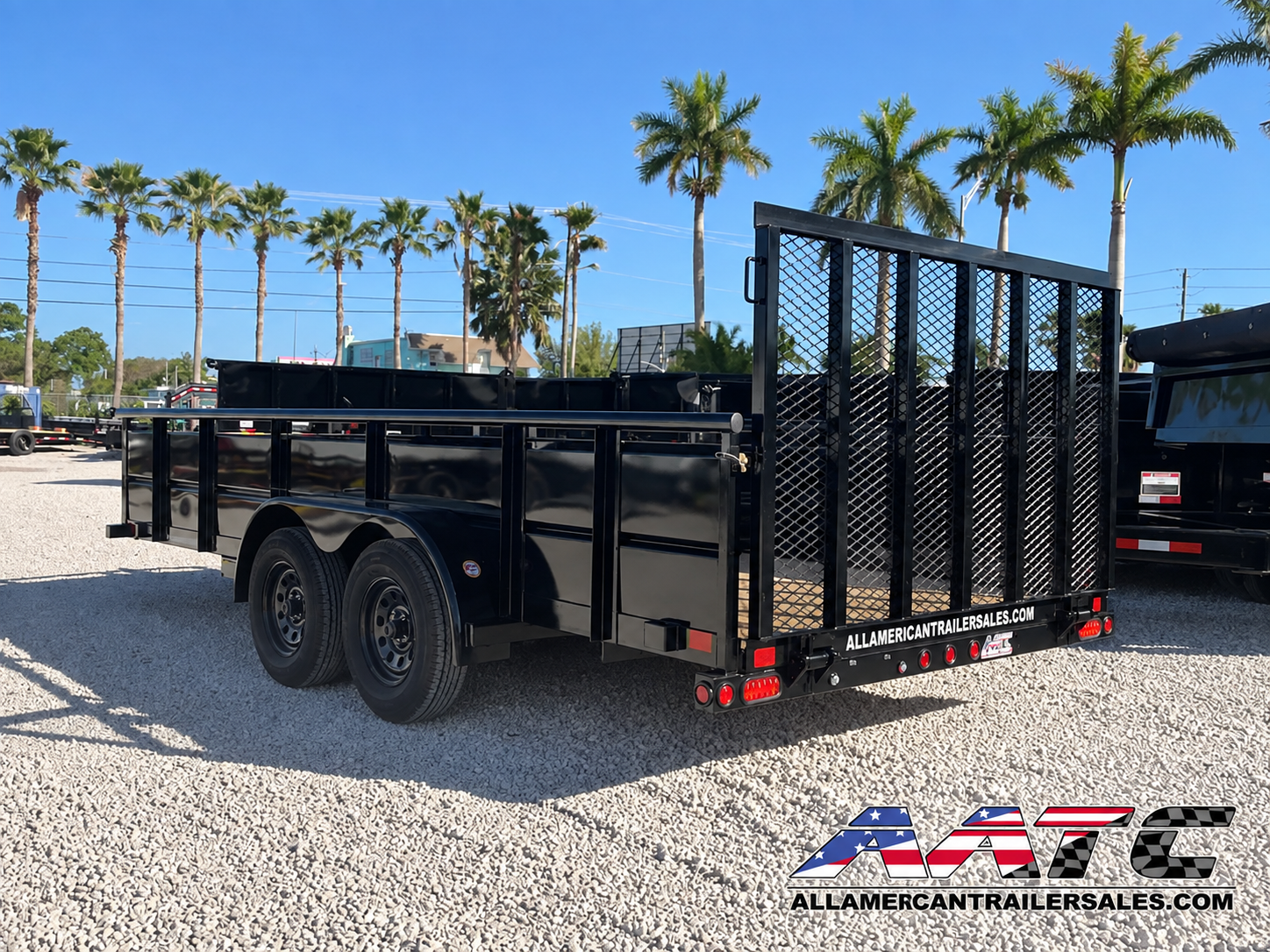

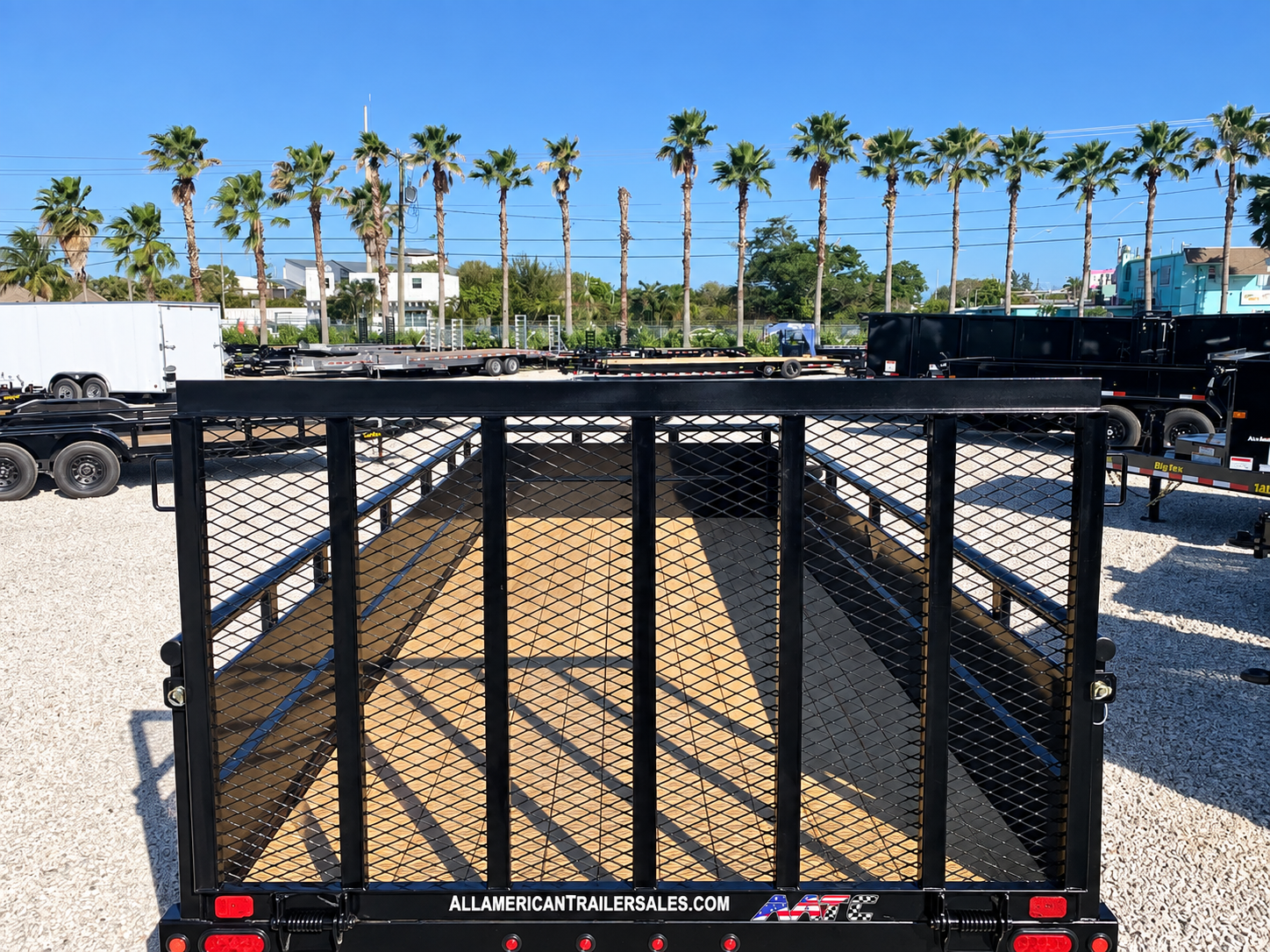

70TV-16 BIG TEX 7X16 TANDEM AXLE VANGUARD UTILITY TRAILER WITH RAMP GATE 2 BRAKE AXLES

70TV-16 BIG TEX 7X16 TANDEM AXLE VANGUARD

Standard Features:
– (4) Tie Down Pockets on Outside Frame
– Forged, 7,000 Coupler
– Fold Back/Wrap Tongue (14 & Longer)
– Set-Back Jack
– EZ Lube Hubs
– Dexter Brand Axles
– Nev-R-Adjust Electric Brakes
– Cambered Axles
– 2-3/8″ Pipe Top Rail
– Tear Drop Style Fenders
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Protected Wiring
– Removable Sand Foot on Jack
– Complete Break-A-Way System w/ Charger
– Radial Tires

Specifications:
AXLE: (2) 3,500 EZ Lube w/ (1) Elec. Brake
JACK: 2,000 Top Wind (Bolted On)
TIRE: ST205/75R-15 Load Range C
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 4″ x 3″ x 1/4″ Angle
WHEEL: 15″ x 5″; Black Spoke 5 on 5 Bolt Pattern
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

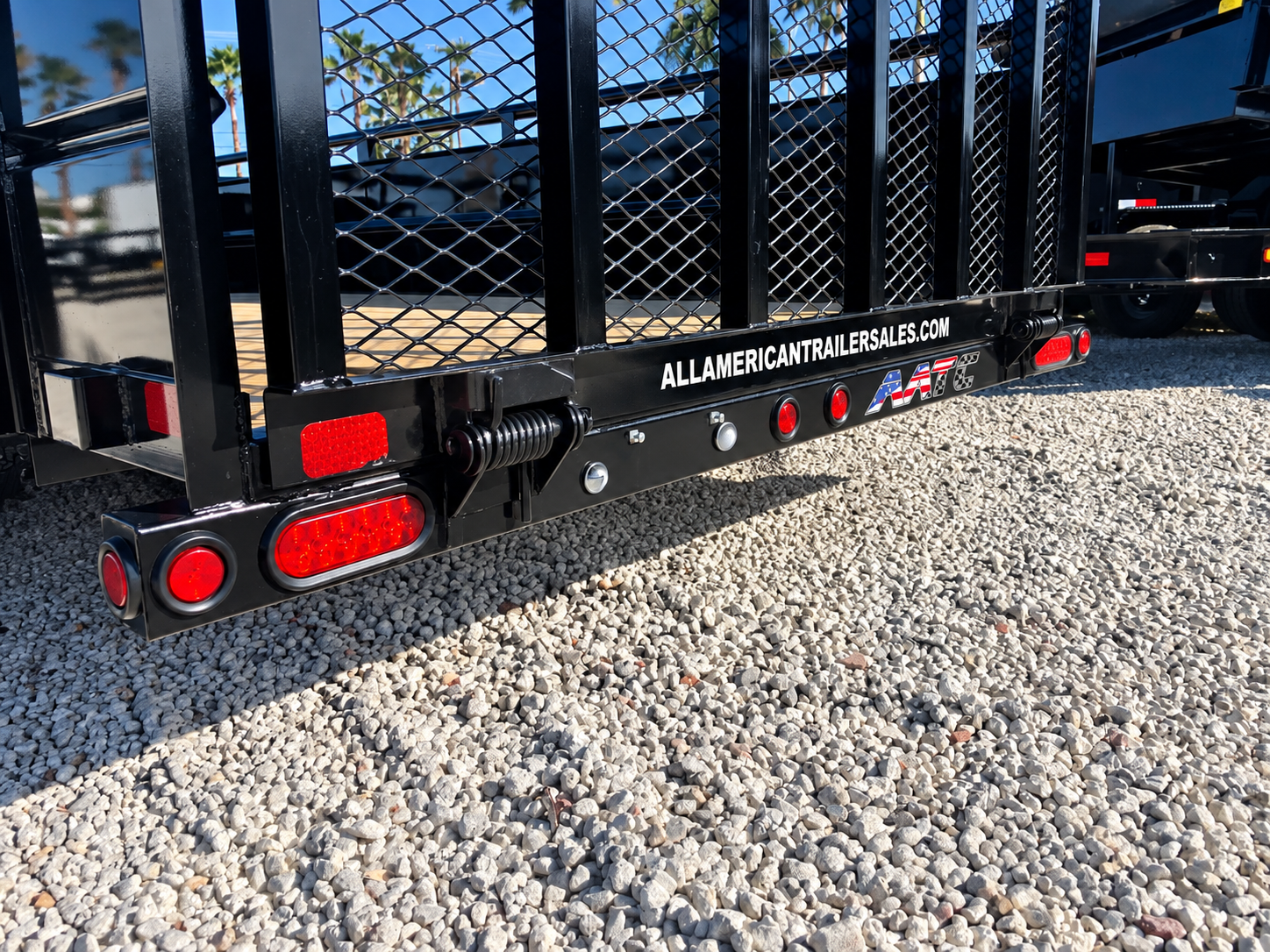

LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 4″ Channel Fold Back/Wrap Tongue
COUPLER: Adjustabel, 7,000#, 2″ Forged Coupler
FENDERS: 9″ x 72″ Tear Drop w/ Back
G.V.W.R.: 7,000
TOP RAIL: 2-3/8″ Pipe Square Back
UPRIGHTS: 16″ Tall 3″ x 2″ x 3/16″ Angle
ELEC. PLUG: 7-Way RV
SUSPENSION: Multi-Leaf Spring w/ Equalizer
CROSSMEMBERS: 3″ x 2″ x 3/16″ Angle
FINISH (Prep): Steel is Cleaned to Ensure a Professional, Smooth Finish
G.A.W.R. (Ea. Axle): 3,500
