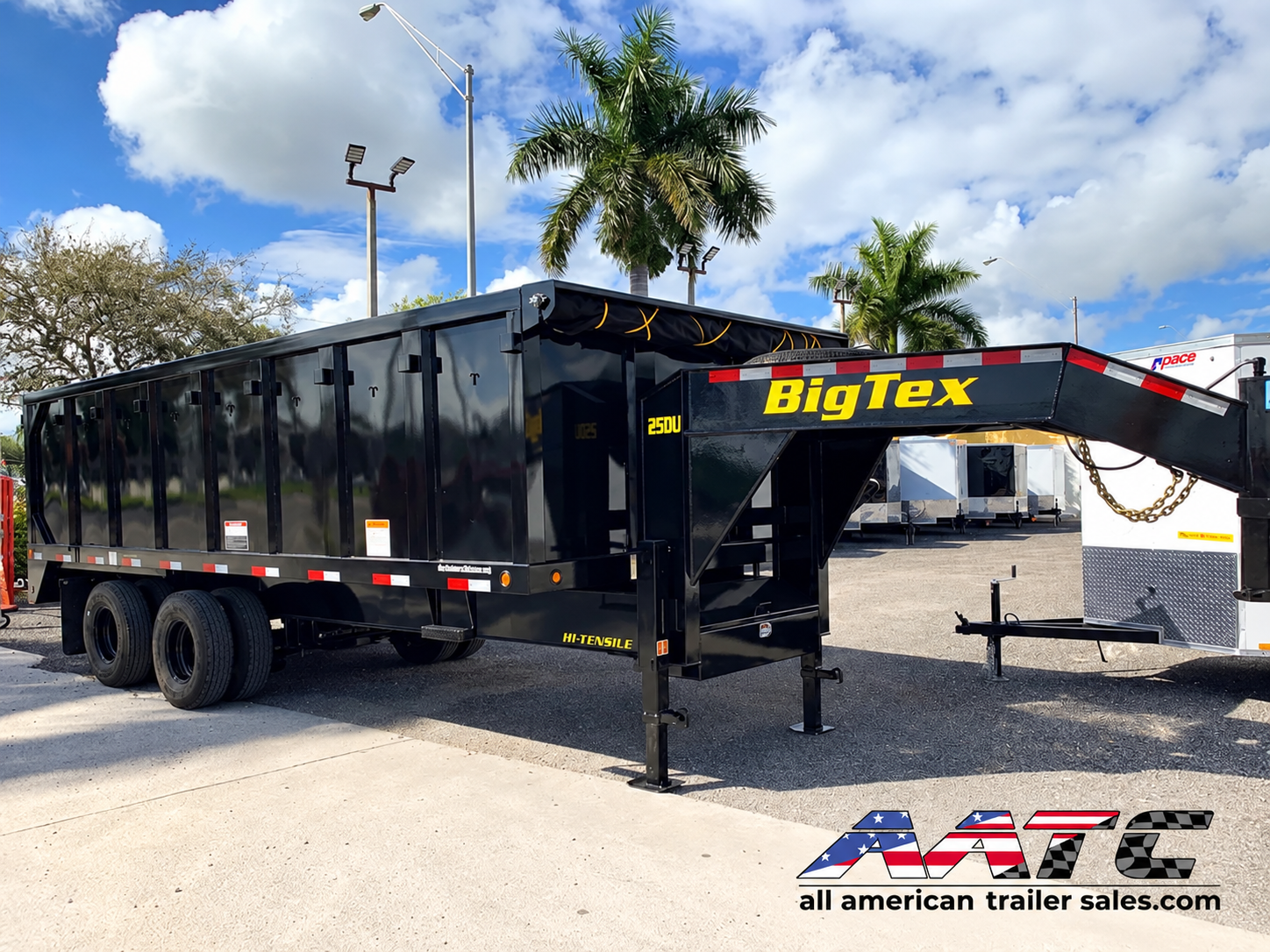

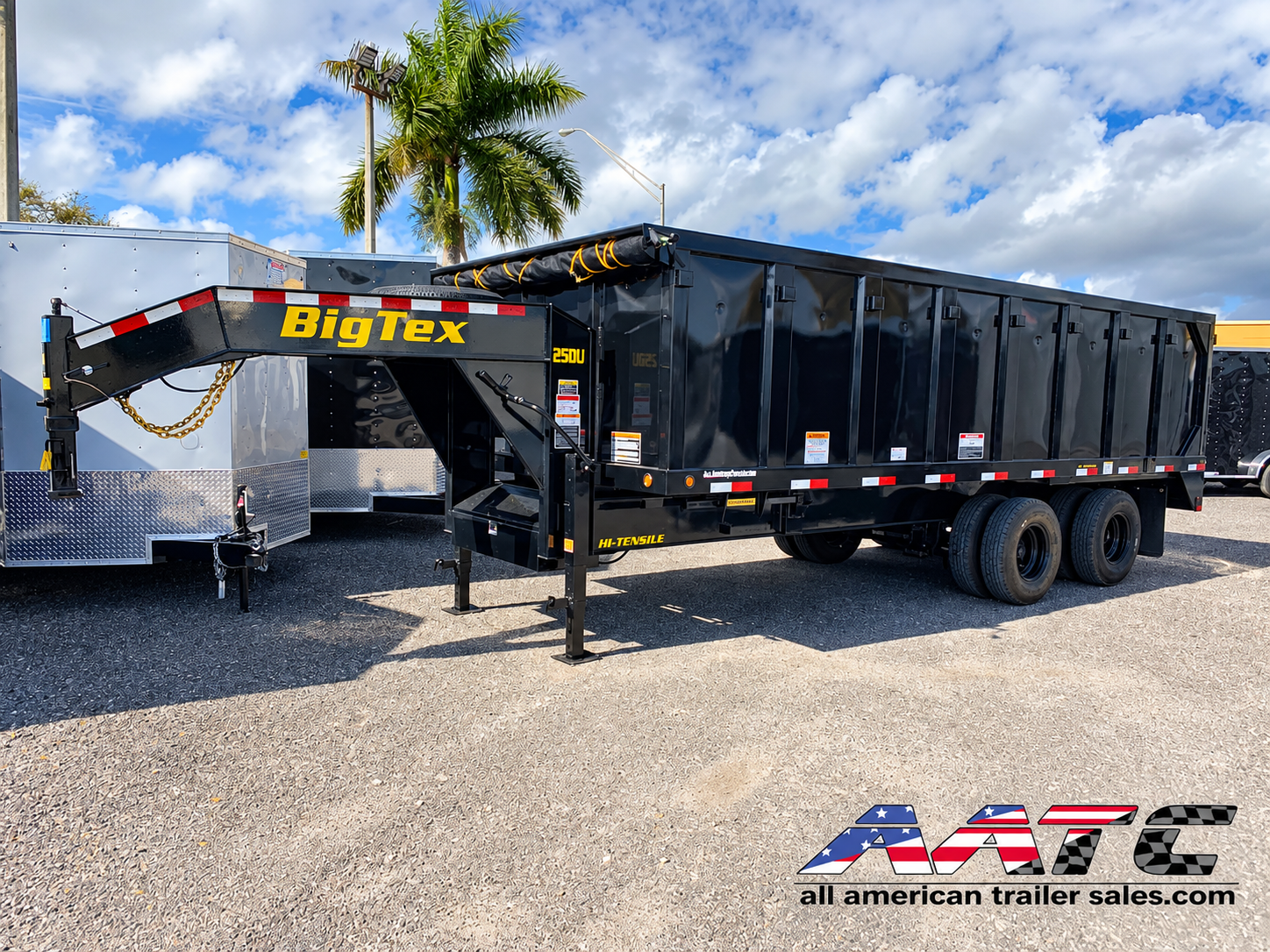

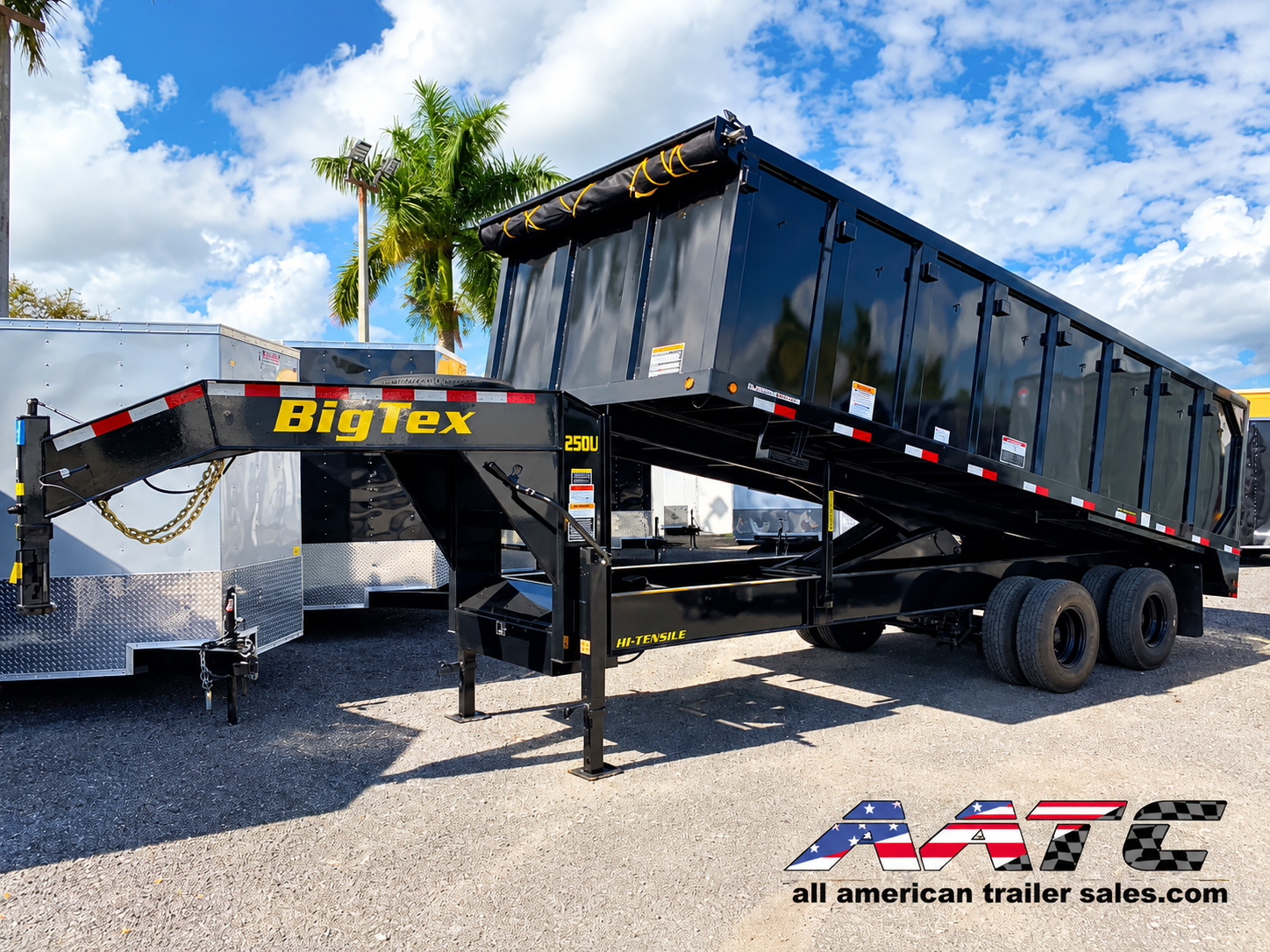

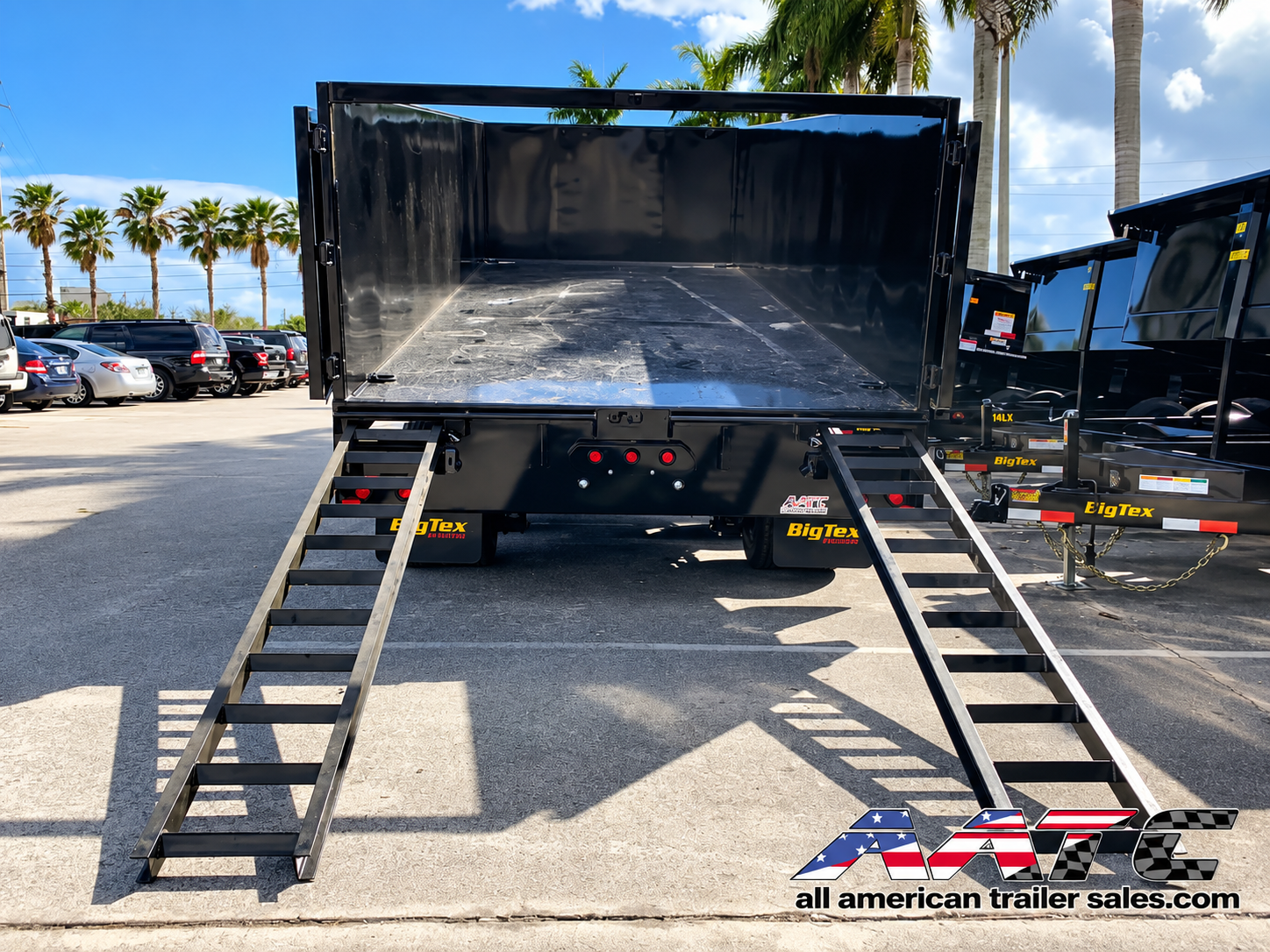

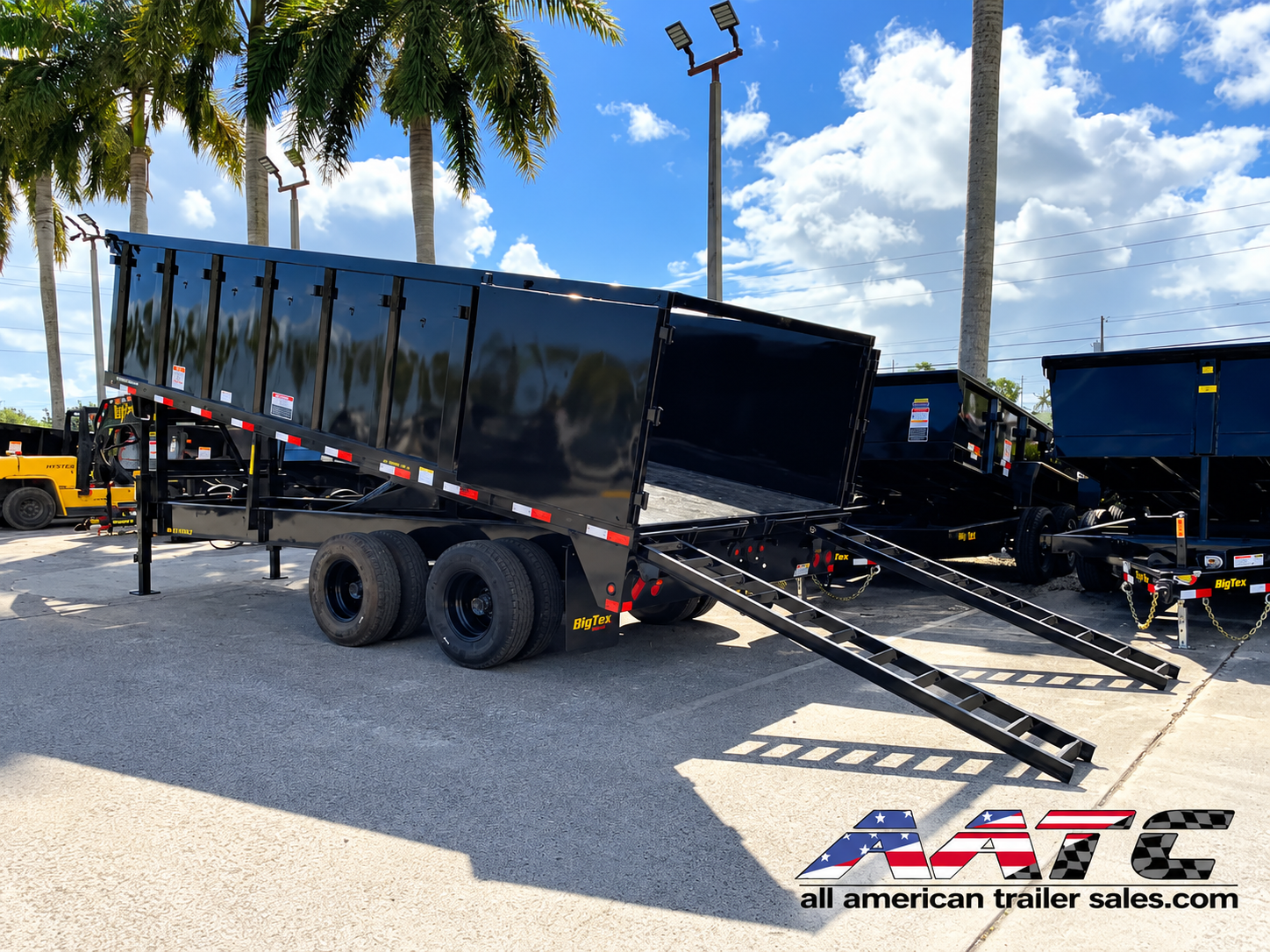

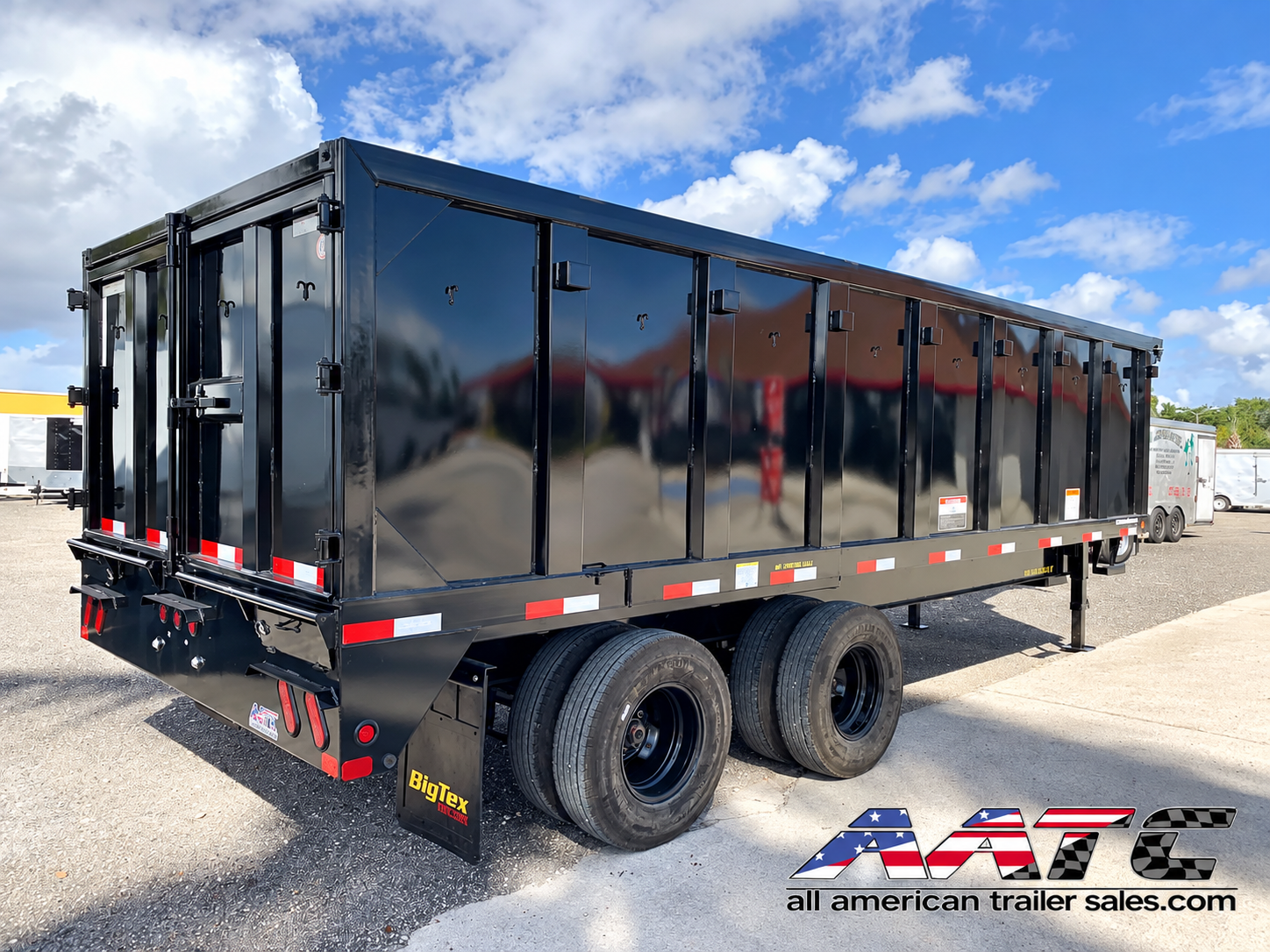

25DU-20 BIG TEX 20′ DUMP TRAILER 13 TON 25,000 GVWR 8×20

25DU-20 BIG TEX 20′ DUMP TRAILER 13 TON 25,000 GVWR 8×20

Standard Features:
– Lockable Pump & Battery Box Mounted in Front of Bed
– J-Hooks for Tie Down
– Fully Formed Shroud for Tarp
– Self Contained Electric/Hydrauic Scissor Lift
– Double Rear Doors
– 48″ Sides w/ Formed channel Supports
– 10 Ga. Floor
– Stake Pockets (Sides)
– EZ Lube Hubs
– Lippert Brand Axles
– 110V Charger
– (4) 5/8″ D-Rings Inside Bed
– Forward Self Adjusting Brakes
– Cambered Axles
– Spare Tire Mount
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Protected Wiring
– Complete Break-A-Way System w/Charger
– Radial Tires
– Mudflaps
– Spare Tire & Wheel- Standard Equipped NEW!

Specifications:
AXLE: (2) 10,000 Dual Wheel Oil Bath w/Elec. Brakes
JACK: Dual 12,000 Side Wind Drop Legs
TIRE: ST235/80 R-16 Load Range E Dual
FLOOR: 10 Gauge Smooth Steel
FRAME: 12″ x 16 I Beam
WHEEL: 16″ x 6″ Dual Wheel 8 Bolt
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 12″ I Beam
COUPLER: 30k 2-5/16″ Adjustable Crank Type
G.A.W.R. (Ea. Axle): 10,000
G.V.W.R.: 25,900
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SUSPENSION: Heavy Duty 30,000 Adjustable
FENDERS: 9″ x 72″ Double Square Broke Diamond Plate
CROSSMEMBERS: 8″ Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
