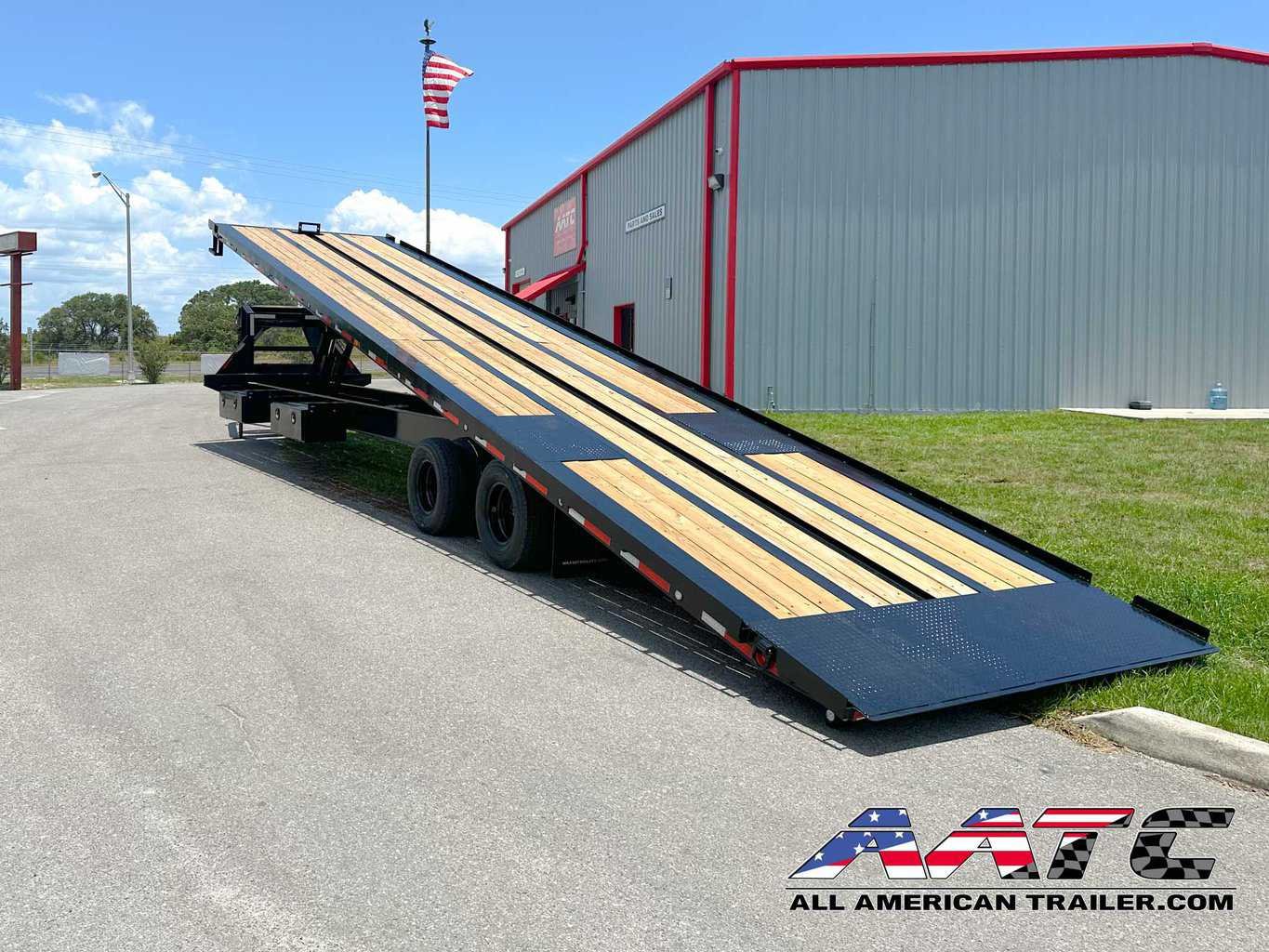

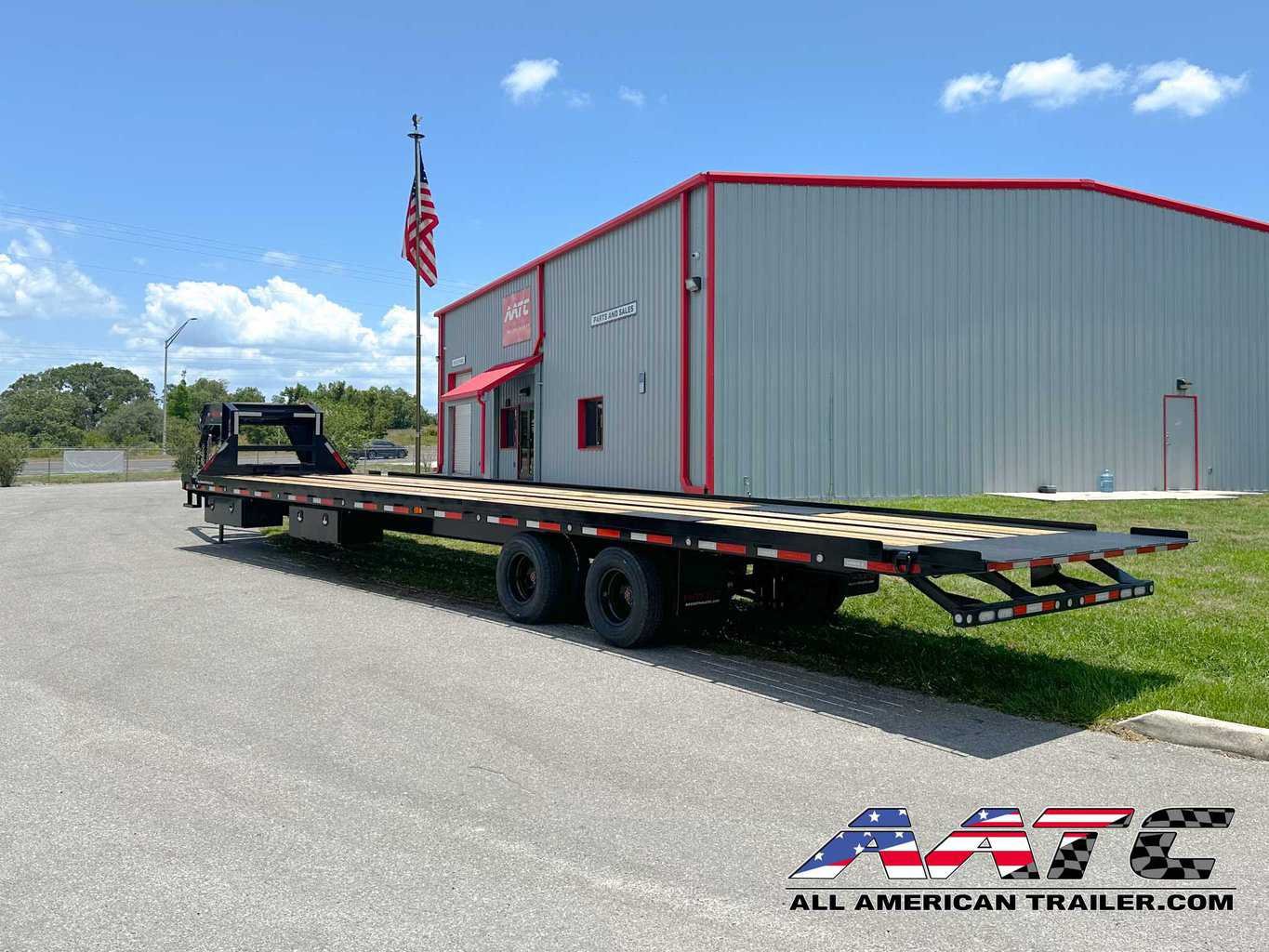

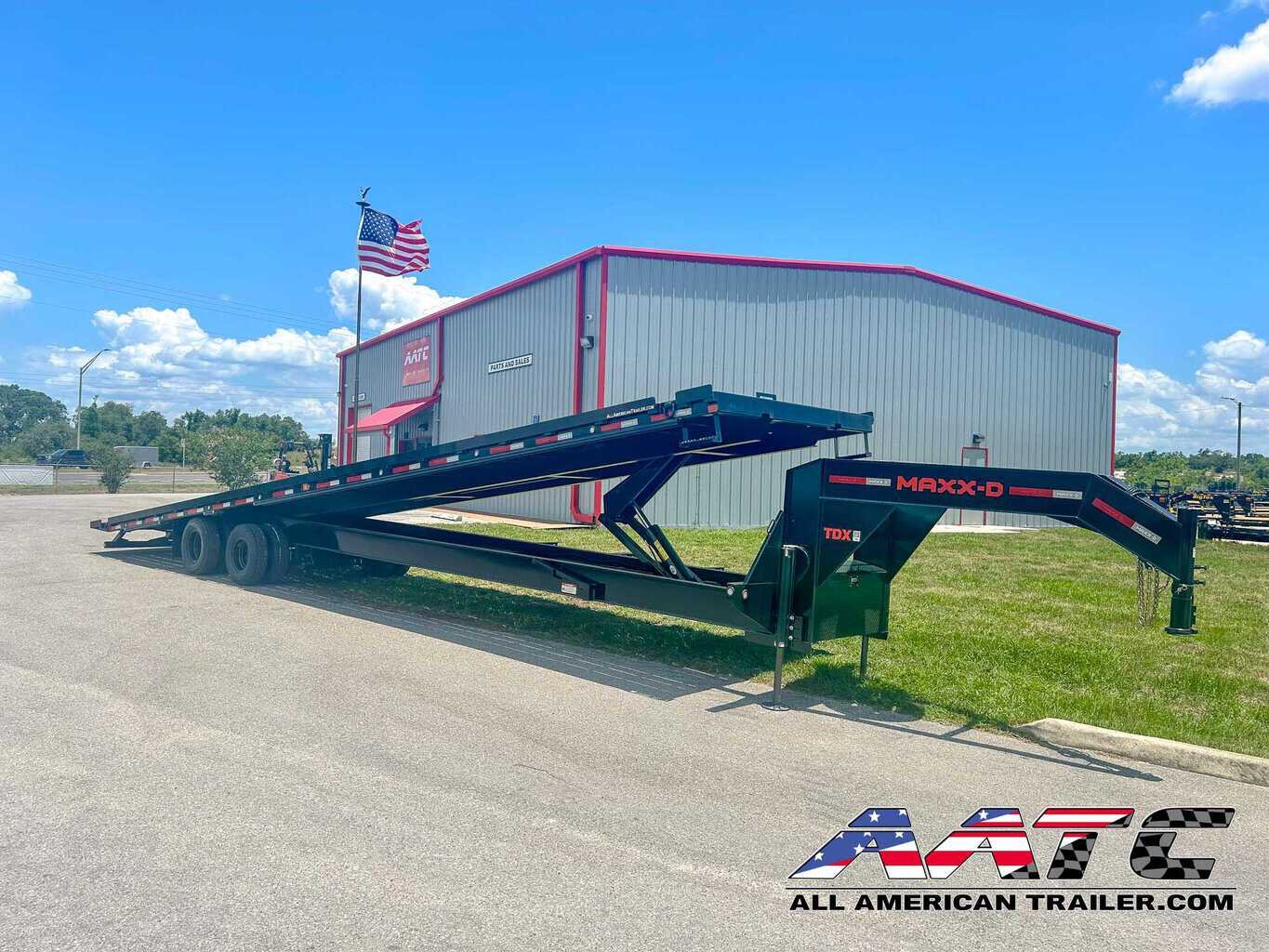

TDX-40-HYJ MAXX-D 40′ GOOSENECK TILT TRAILER – Container Trailer 25,000 GVWR 8.5X40 Hydraulic Jacks

Standard Features:
– Rubrail and Tie Down Pockets Along Sides
– Low Profile Bed

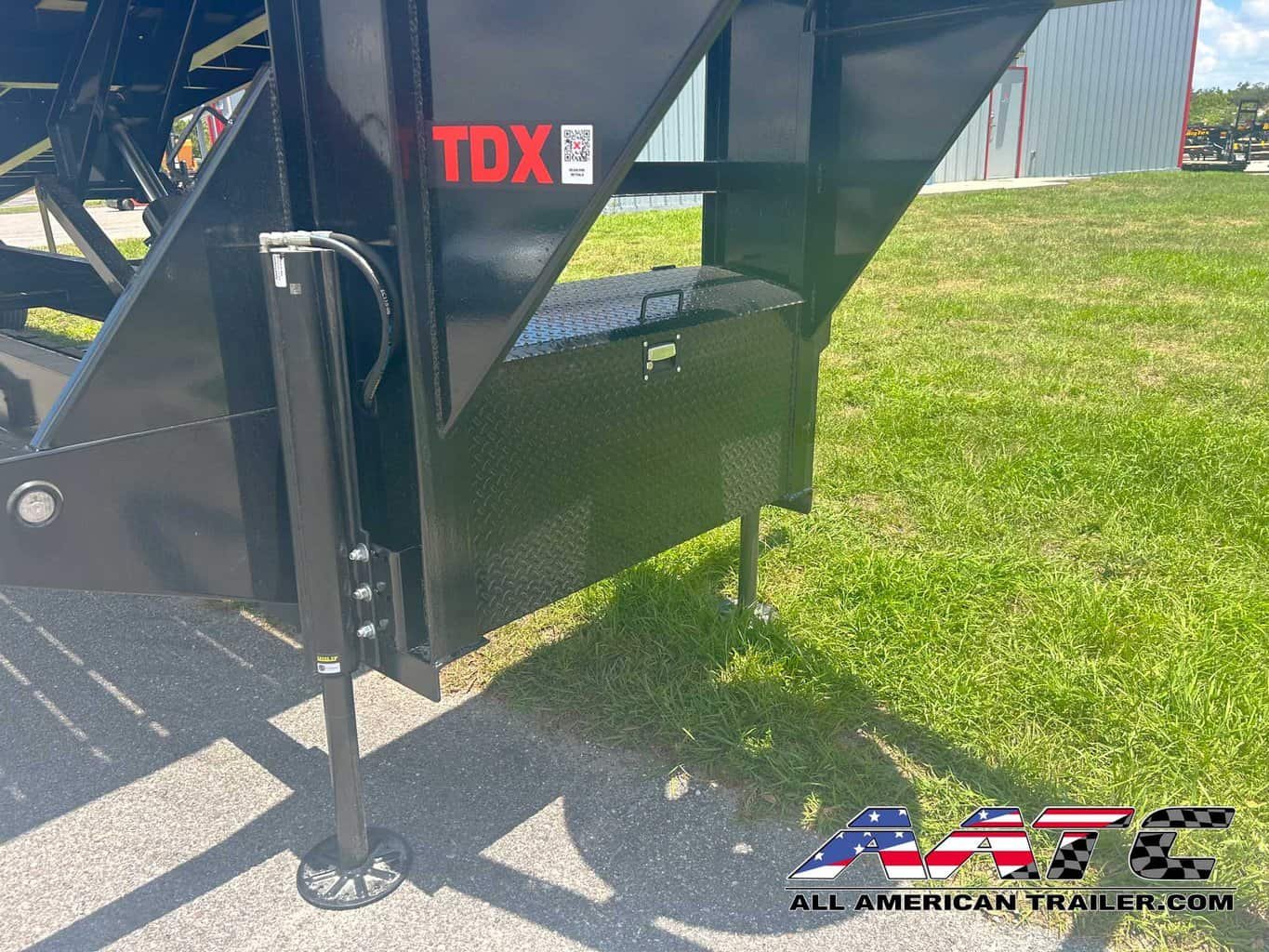

– Tool Box integrated into Neck
– 2-5/16″ Coupler

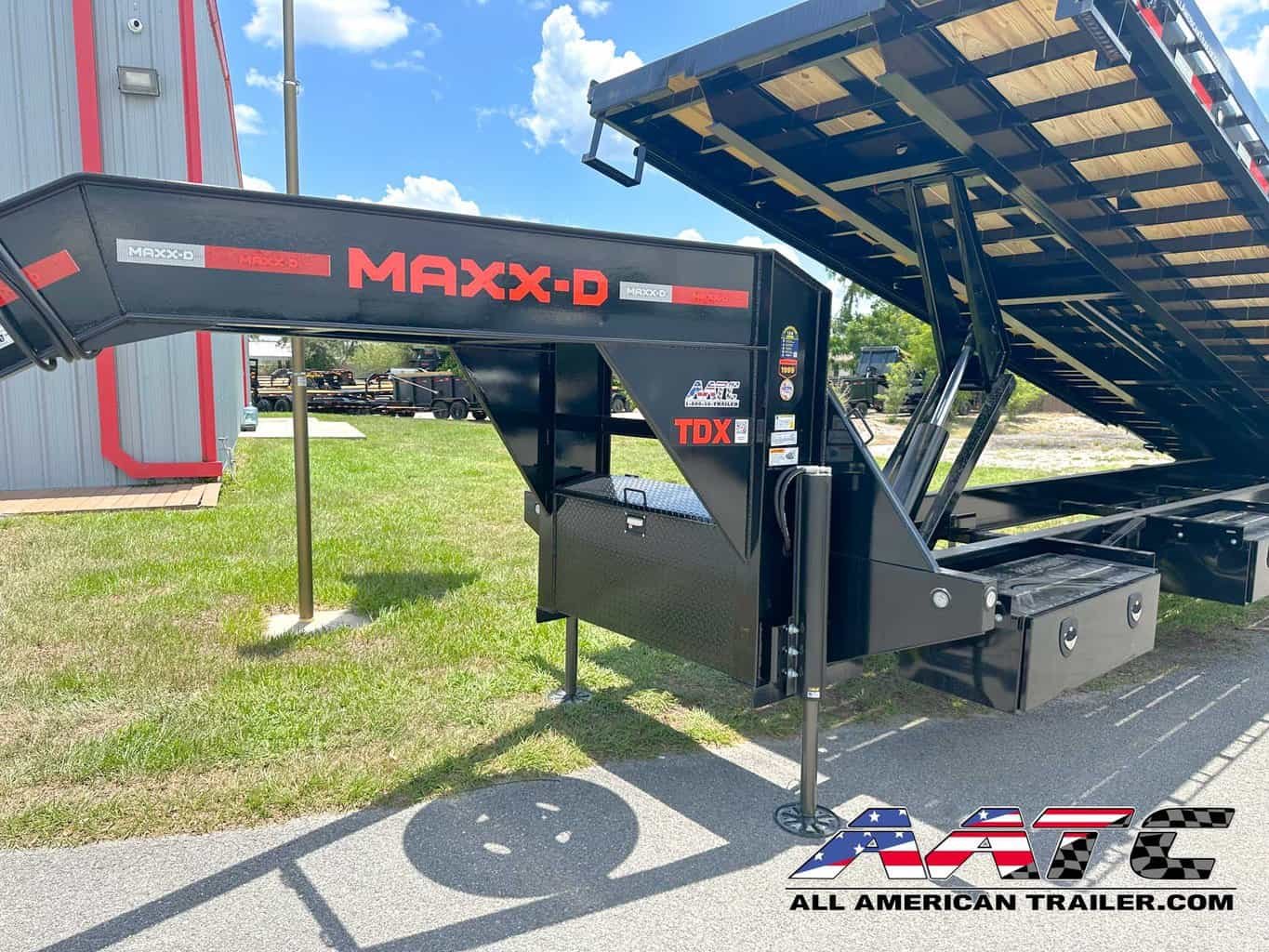

– 12″ I-beam Neck
– Dual Hydraulic Jacks
– EZ Lube Hubs
– Lippert Brand Axles
– Cambered Axles
– Nev R Adjust Brakes on All Hubs
– Grommet Mount Sealed Lighting
– L.E.D Lighting Package
– Sealed Modular Wiring Harness
– Spare Tire Mount
– Complete Break-A-Way System w/ Charger
– Radial Tires

Specifications:

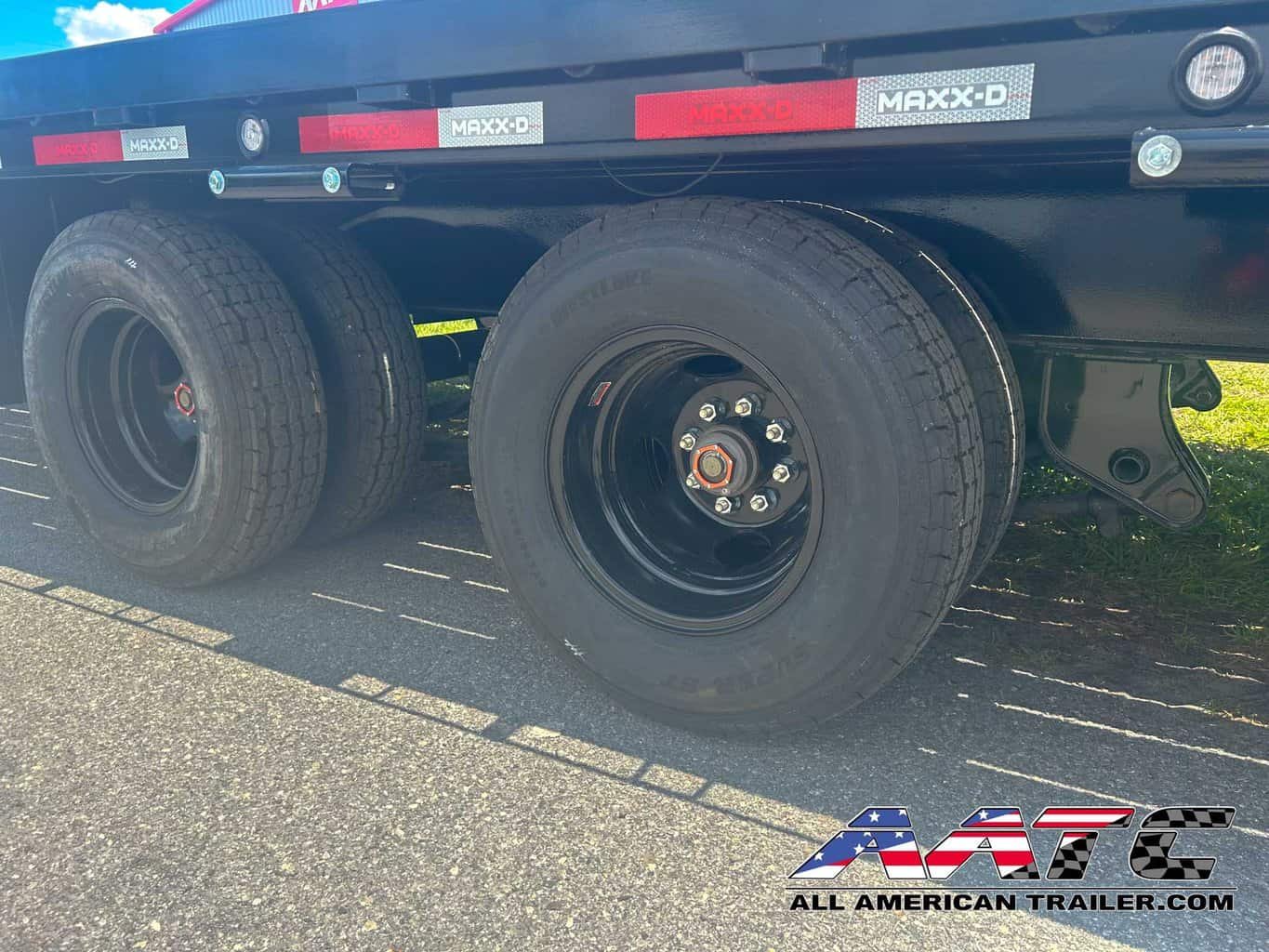

AXLE: (2) 10,000# EZ Lube w/Electric Brakes
JACK: Hydraulic Jacks
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 12″ I Beam
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.

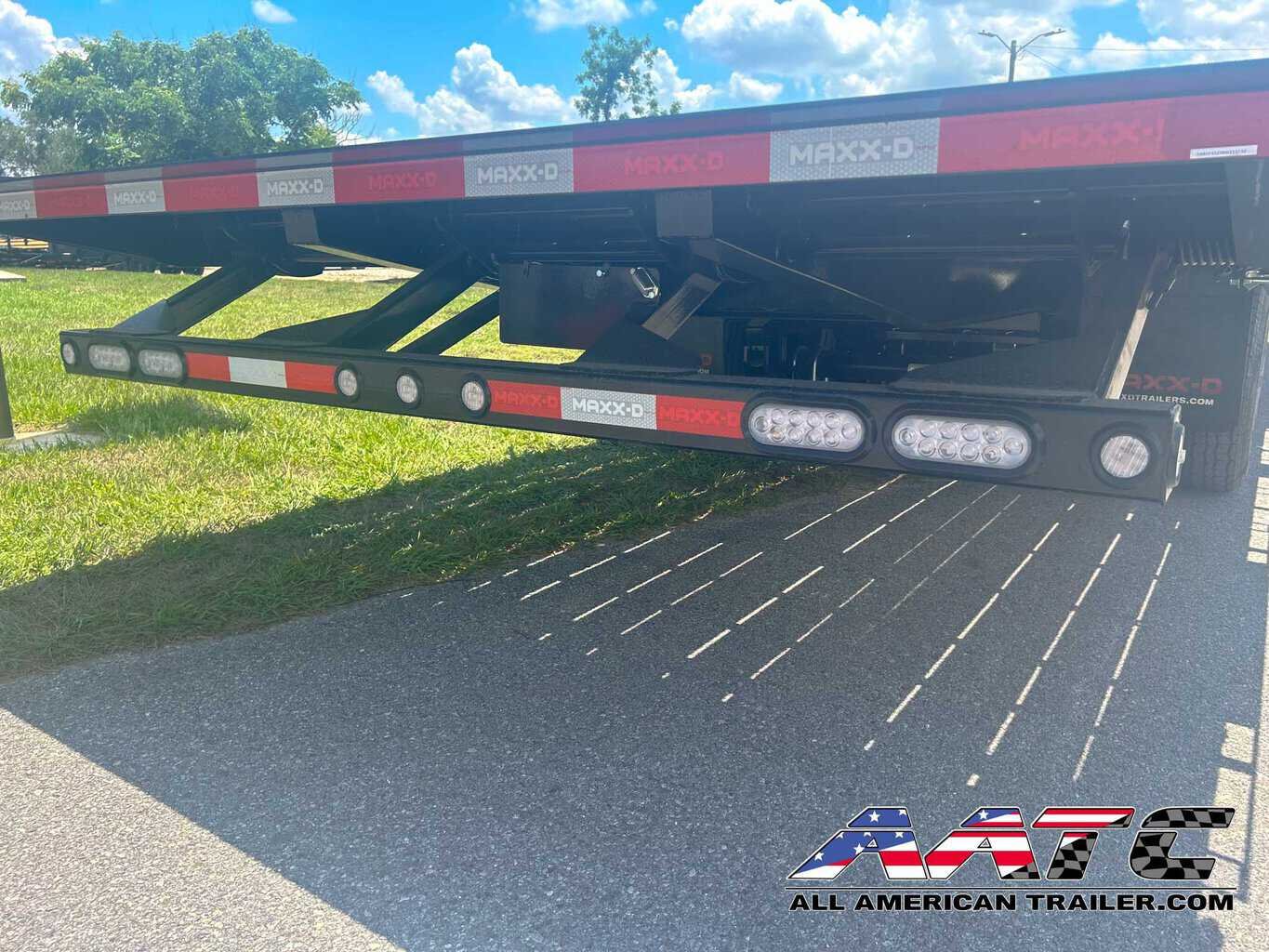

LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Integral w/ Frame
COUPLER: Adjustable Forged 2-5/16″
FENDERS: Deckover
G.V.W.R.: 25,000#
UPRIGHTS: 5″ Channel w/Stake Pockets & Rubrail on Both Sides, Front & Rear
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SUSPENSION: HD Adjustable
CROSSMEMBERS: 3″ Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 1/4″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle): 10,000#
