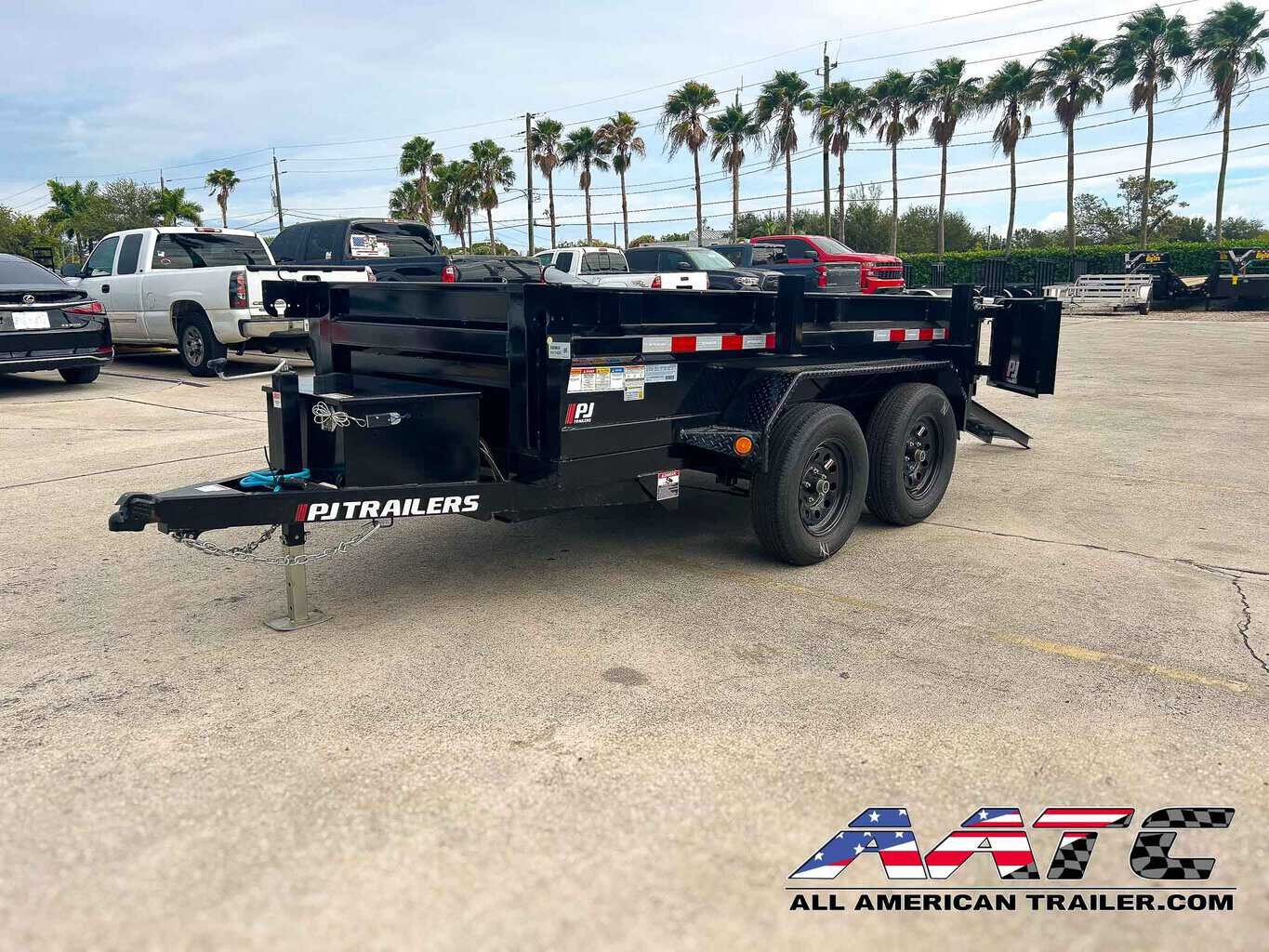

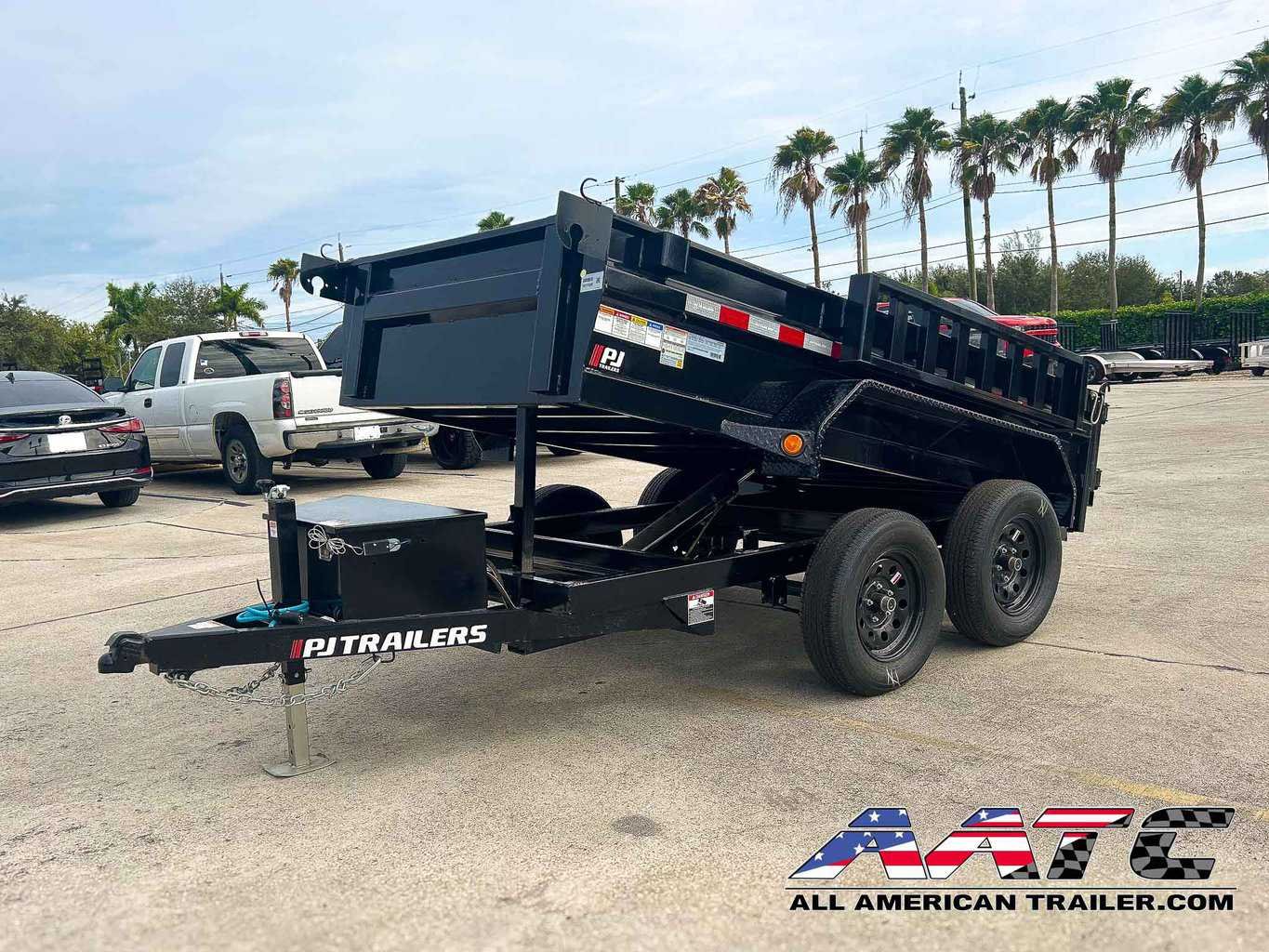

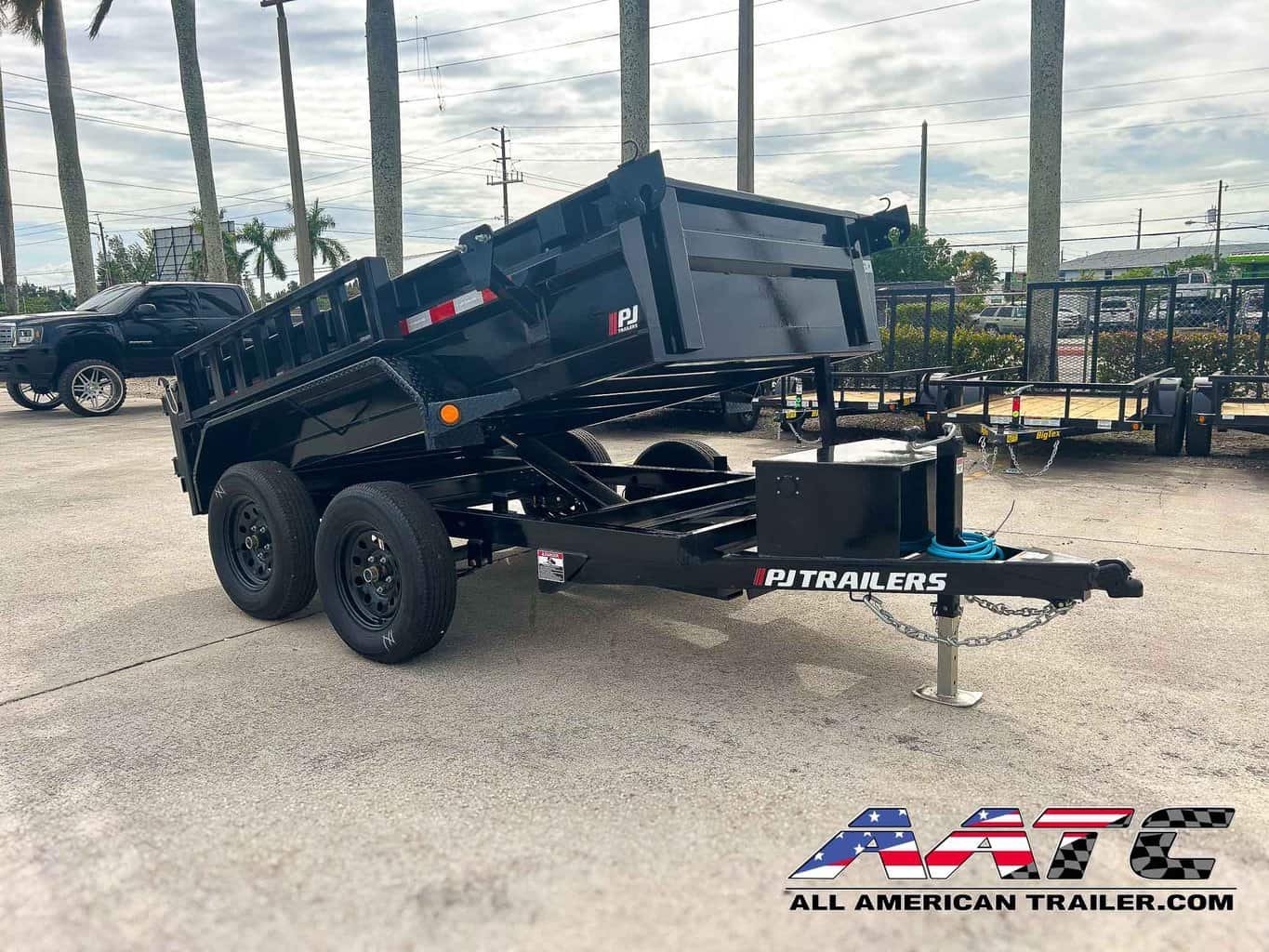

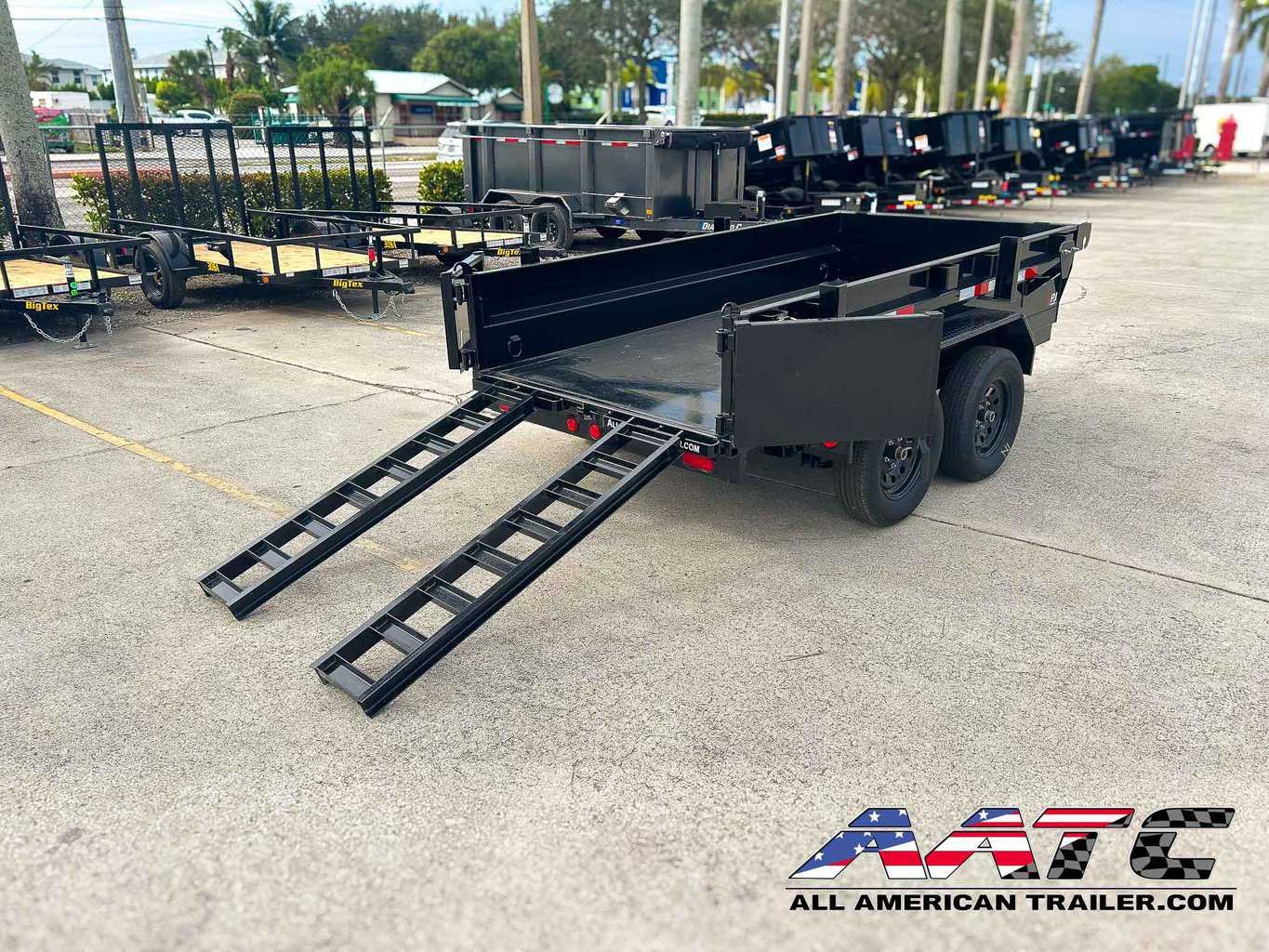

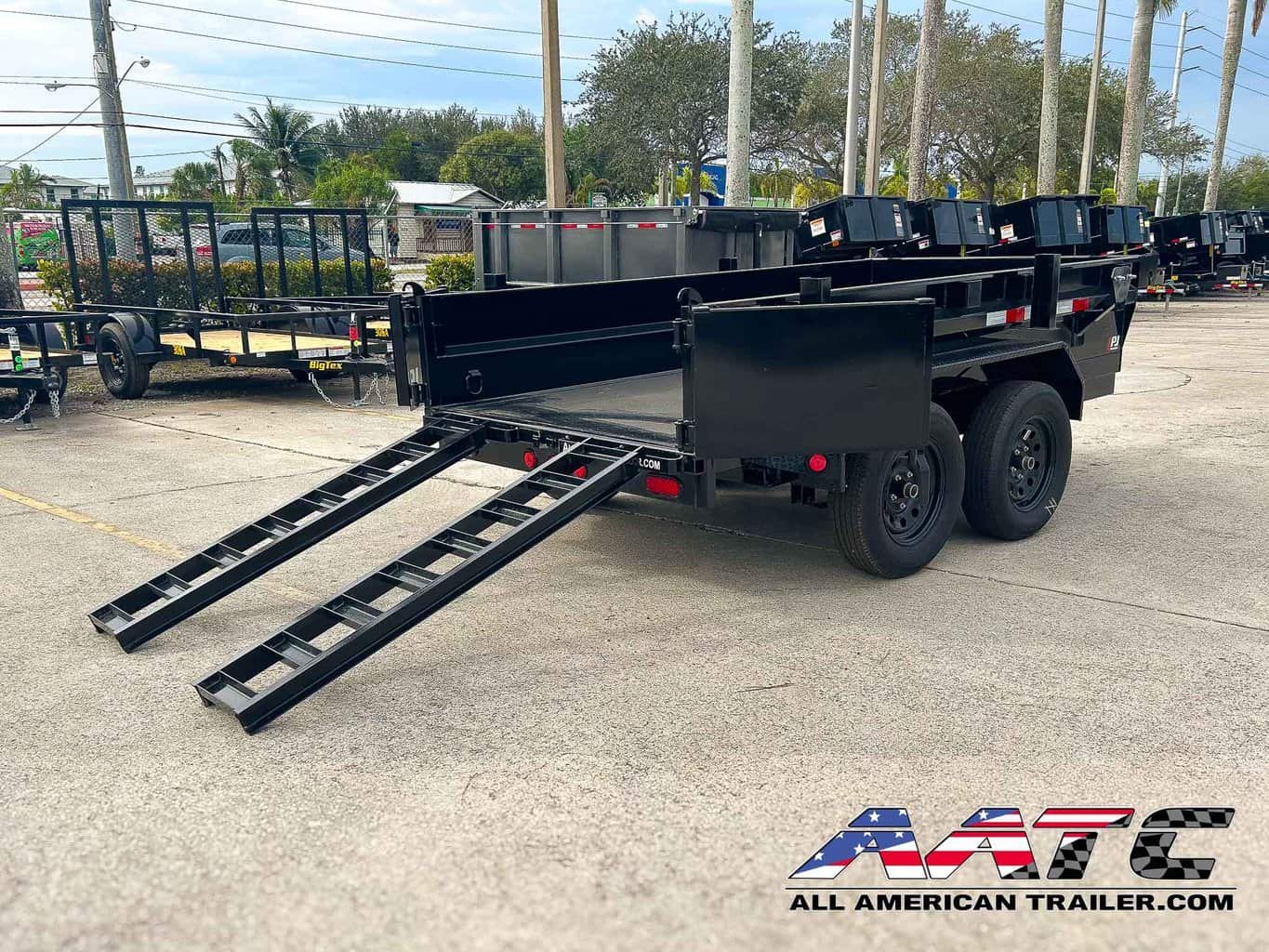

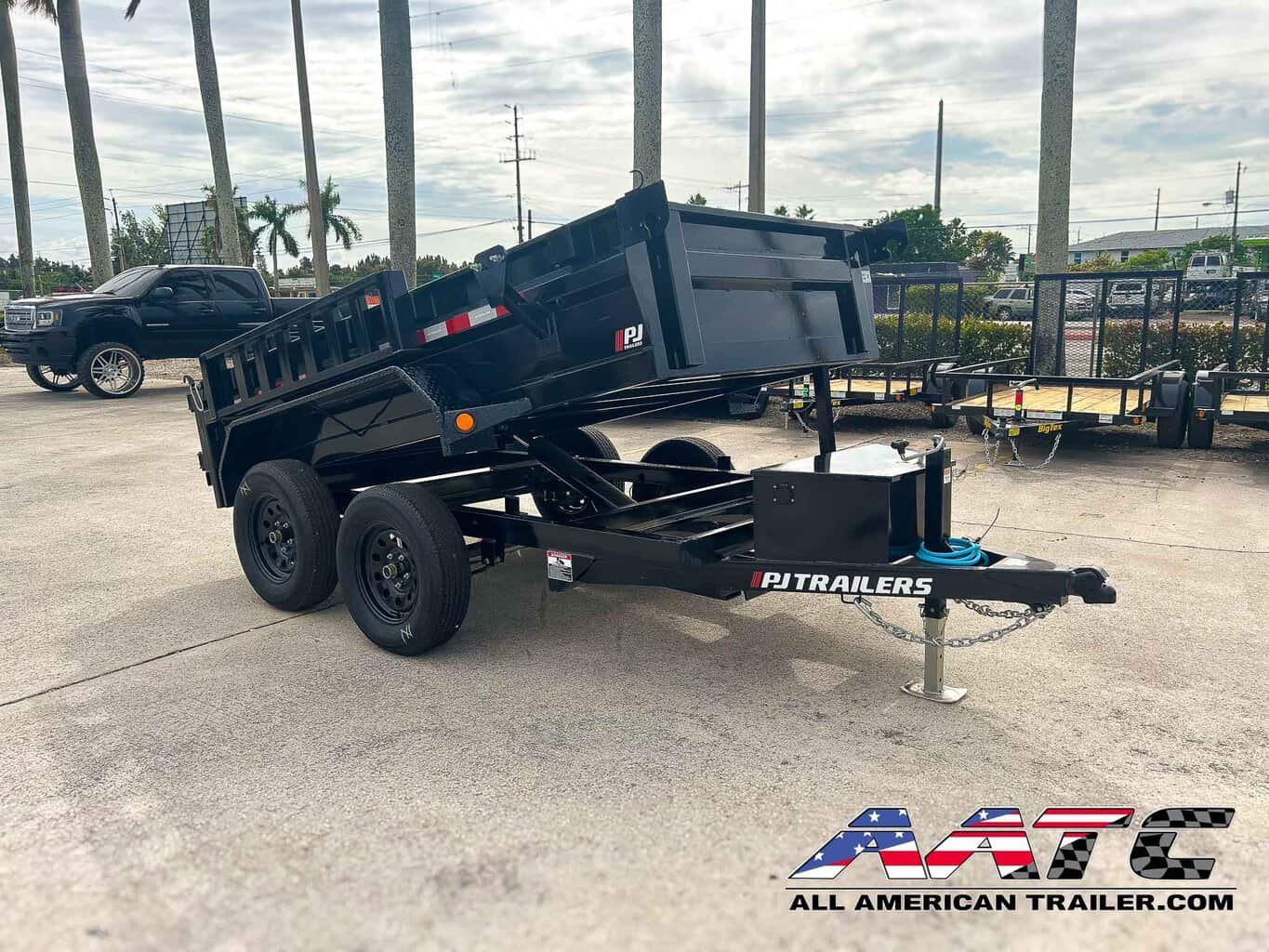

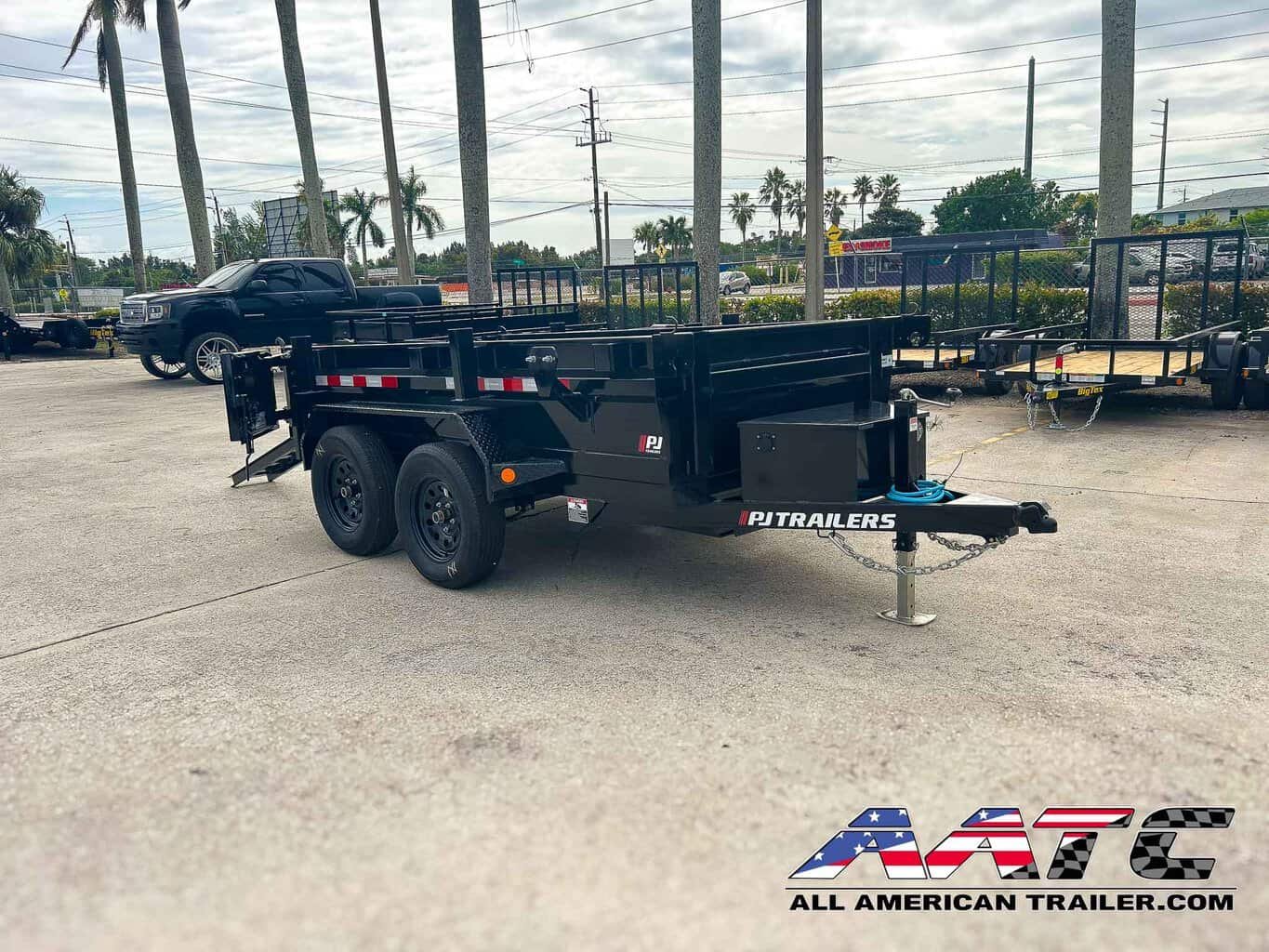

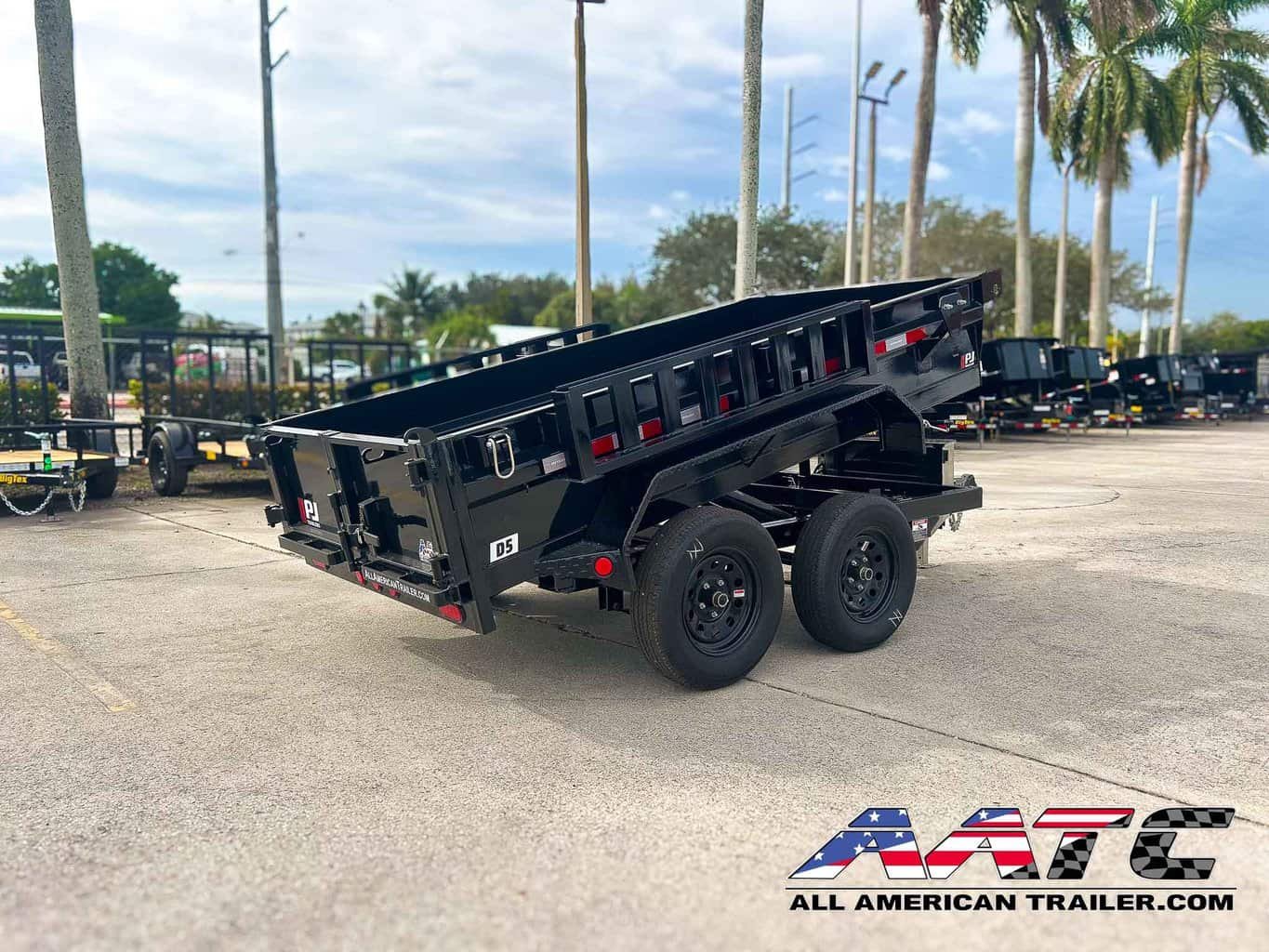

D5-102-R PJ 10′ DUMP TRAILER 3.5 TON 7,000 GVWR 5X10 W/ RAMPS

Standard Features:
– Lockable Pump & Battery Box Mounted in Front of Bed
– 20″, 10 Ga. Sides w/Formed Channel Supports
– J-Hooks for Tie Down
– Tarp Brackets
– Single Cylinder Lift
– EZ Lube Hubs
– Lippert Brand Axles
– Nev-R-Adjust Electric Brakes
– Cambered Axles
– Diamond Plate Fenders
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Protected Wiring
– Removable Sand Foot on Jack
– Complete Break-A-Way System w/Charger
– Radial Tires NEW!

Specifications:
AXLE: (2) 3,500# EZ Lube w/Elec. Brakes
JACK: 2,000# Top Wind Drop Leg
TIRE: ST205/75-15 Load Range C
FLOOR: 16 Gauge Smooth Steel
FRAME: 5″ Channel
WHEEL: 15″ x 5″; Black Spoke 5 on 5 Bolt Pattern
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 5″ Channel
COUPLER: 2″ Stamped A-Frame
G.A.W.R. (Ea. Axle): 3,500#
G.V.W.R.: 7,000#
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Mulit-Leaf Spring w/ Equalizer
FENDERS: 9″ x 60″ DSB Diamond Plate
CROSSMEMBERS: 6″ Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
