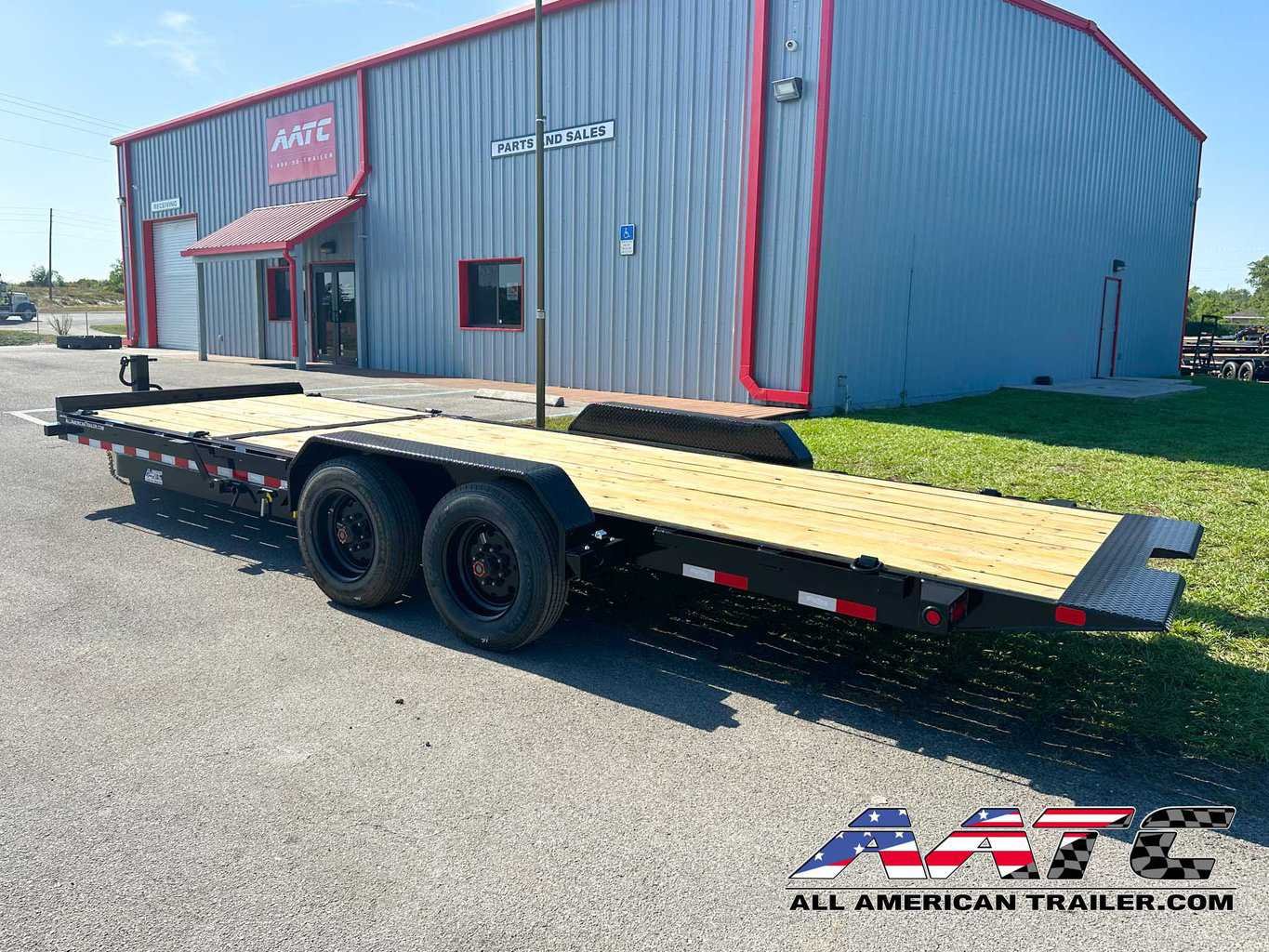

16TL-20 BIG TEX 20′ TANDEM AXLE TILT 17,500 GVWR 16+4

Standard Features:
– Rubrail and Tie Down Pockets Along Sides
– Adjustable 2-5/16″ 14,000# Cast Coupler

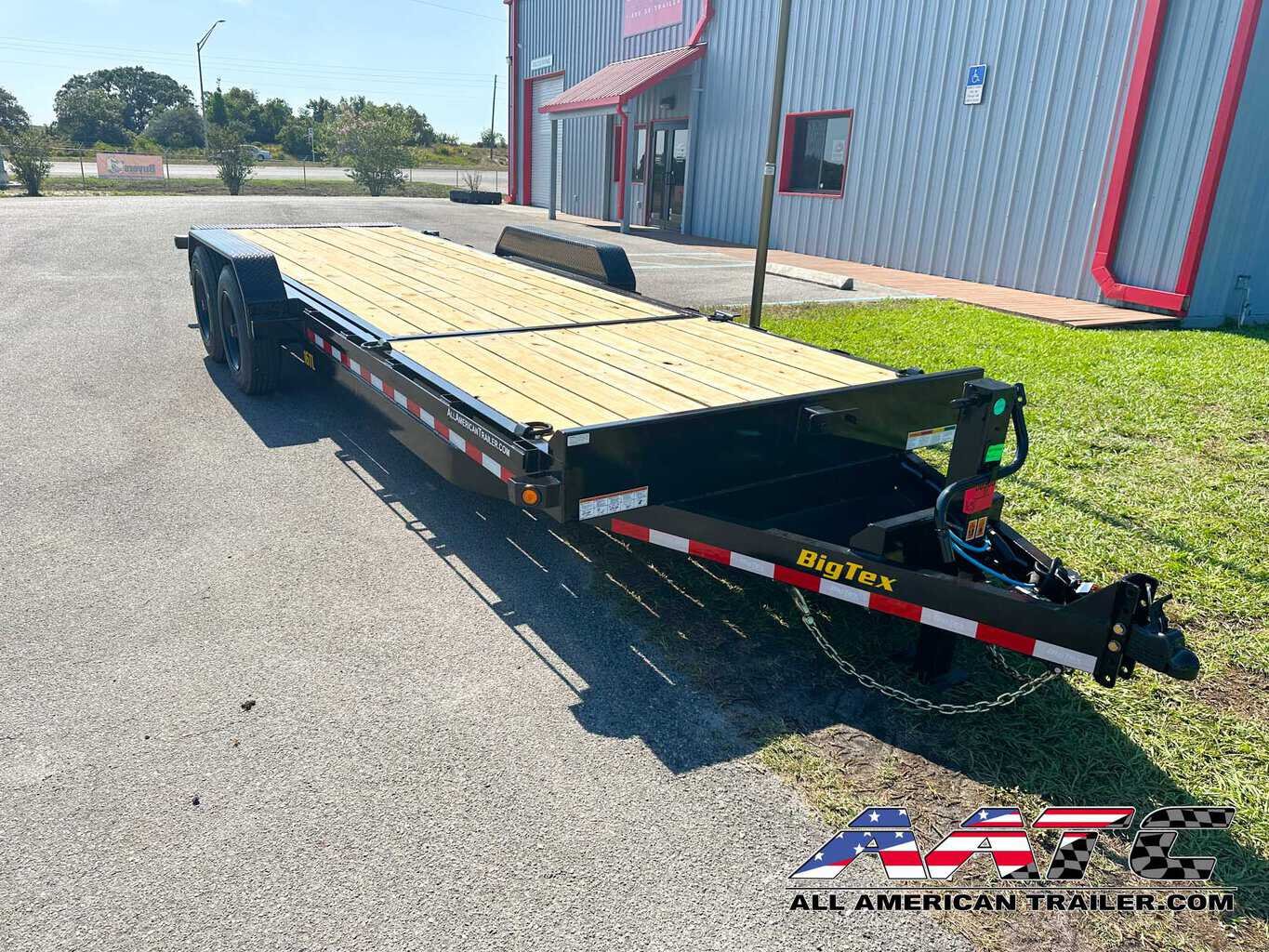

– Fold Back/Wrap Tongue w/ Raised Coupler
– 12,000# Drop Leg Jack- Side Wind Against Bed
– 2″ Tubular Stop Rail
– EZ Lube Hubs
– Lippert Brand Axles
– Nev-R-Adjust Electric Brakes on All Hubs

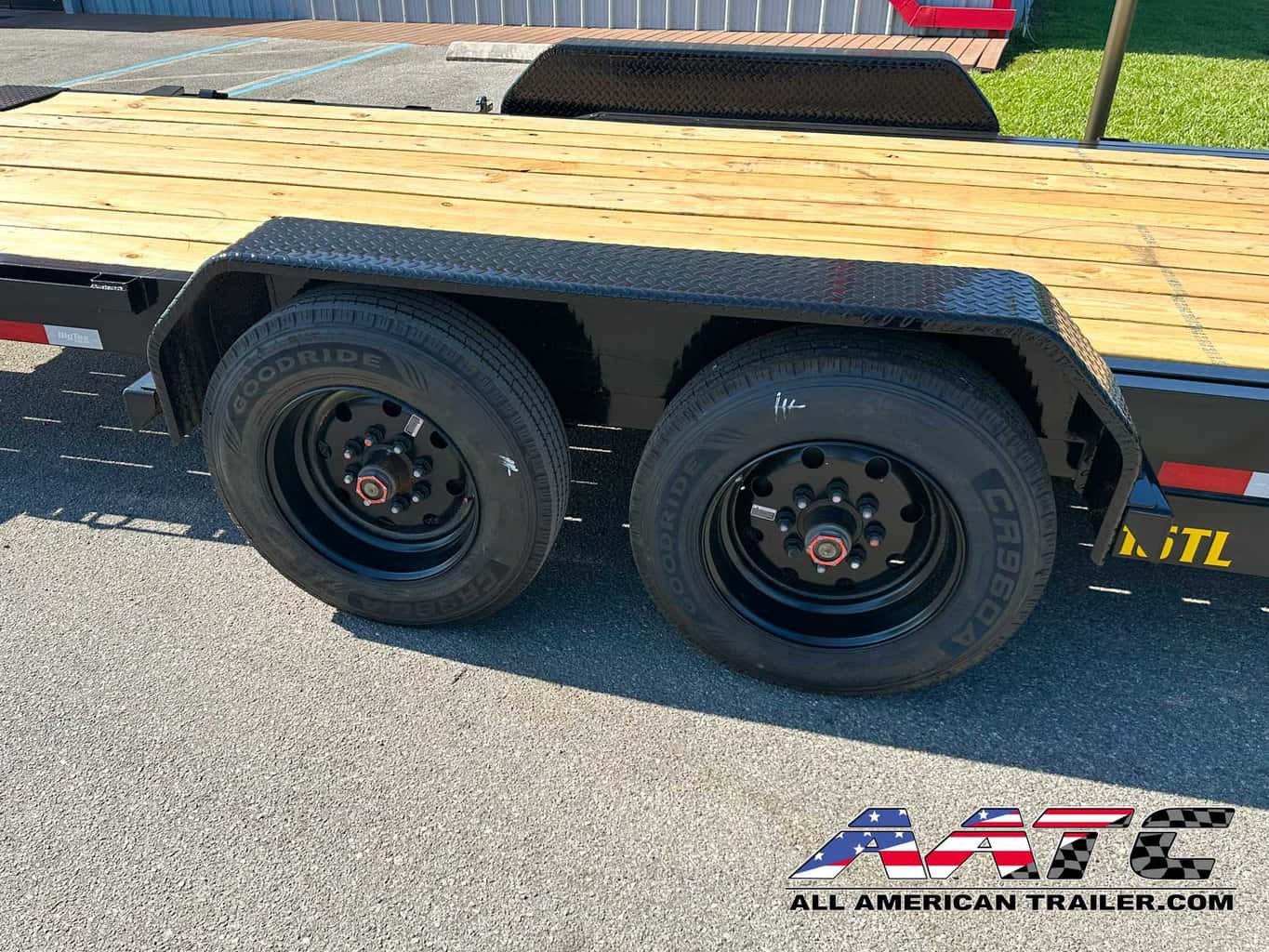

– Cambered 4″ Drop Axles
– Complete Break-A-Way System w/Charger
– Double Broke Diamond Plate Fenders (Removable)
– Stationary Front Deck for Added Versatility
– Unique Two Piece Main Frame
– 102″ Wide Overall, 83″ Width Between Fenders

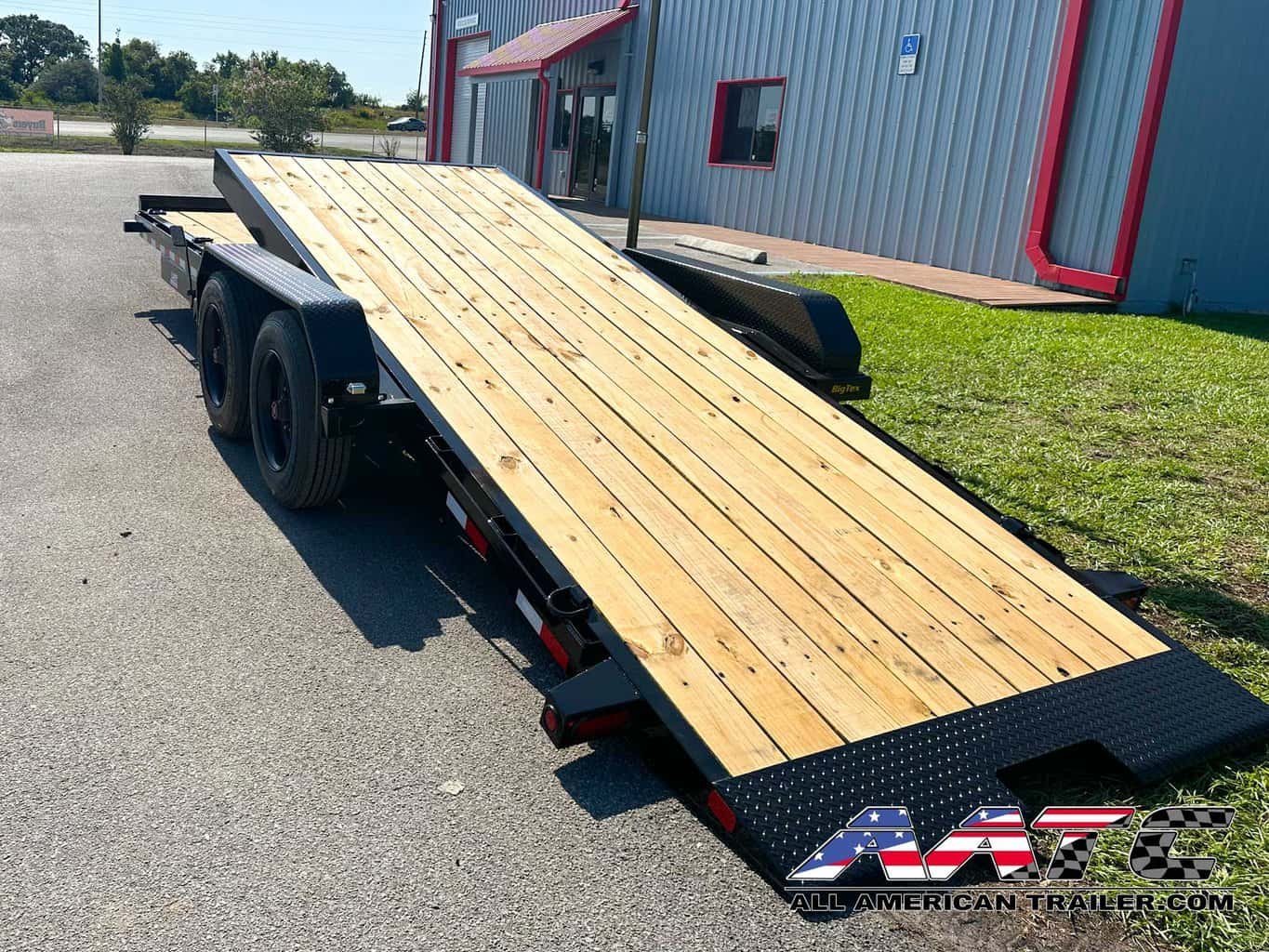

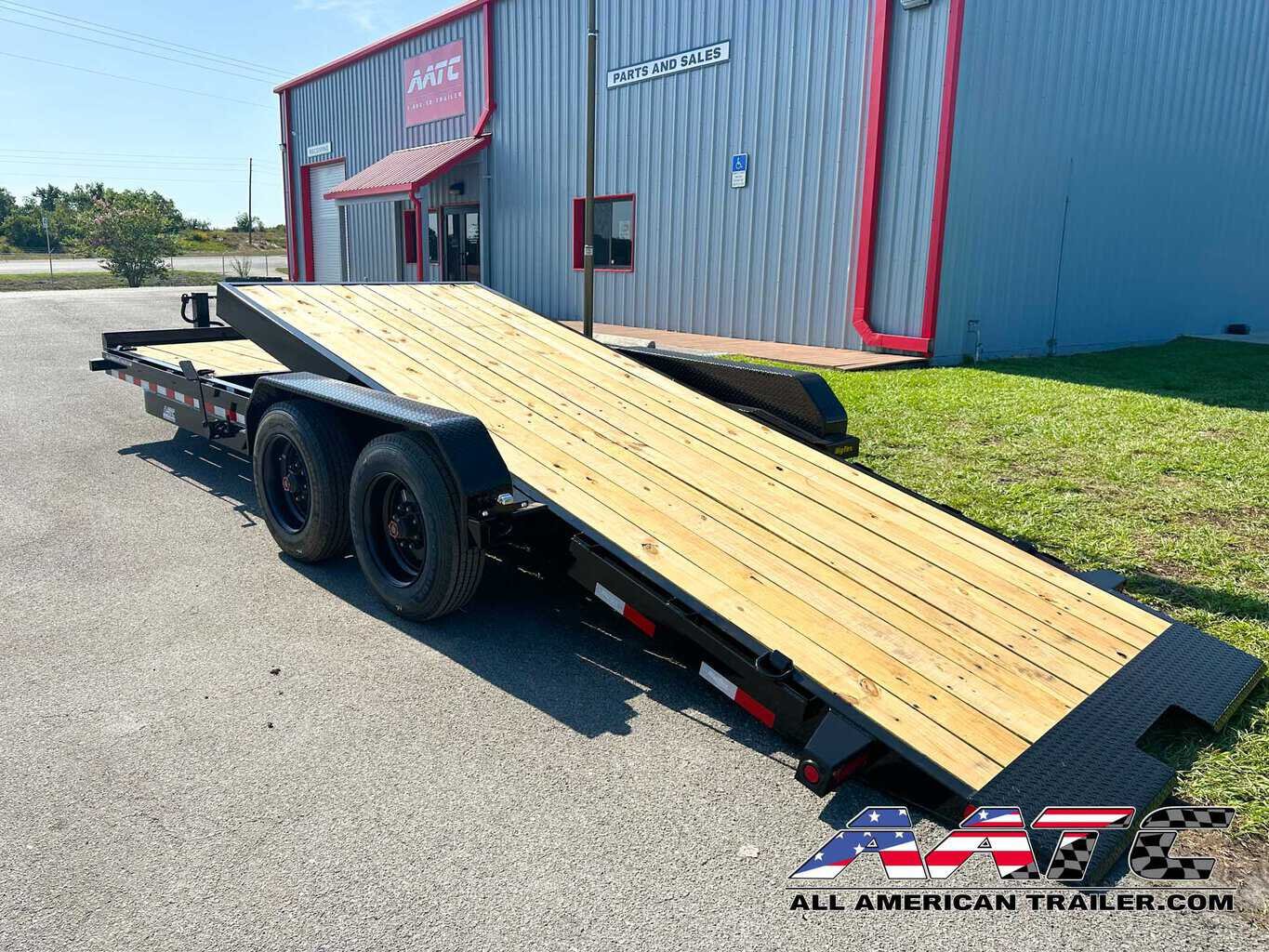

– Tilt Platform is 75″ Wide

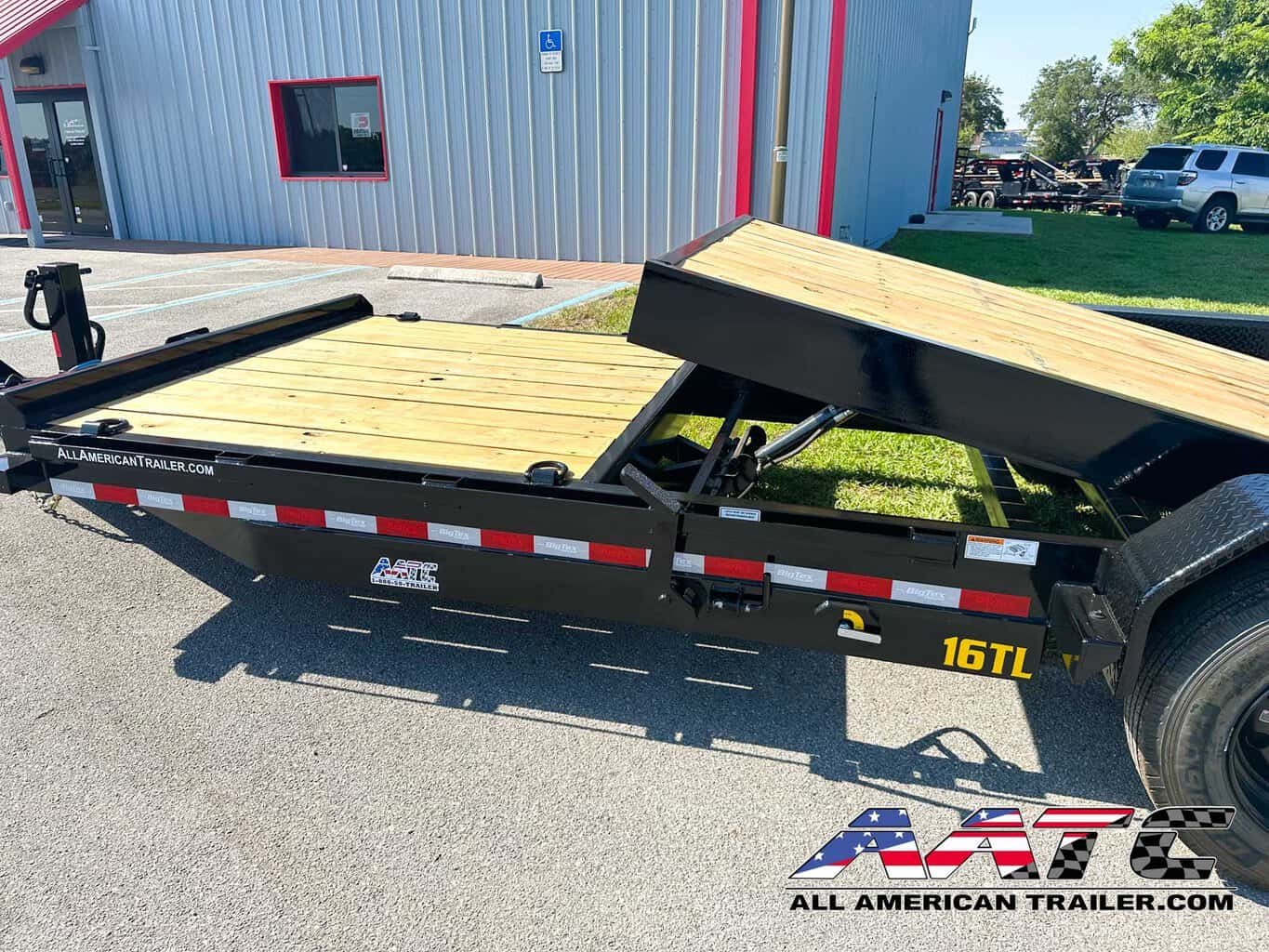

– Hydraulic Dampening System
– 1/4 Diamond Plate Knife Edge on Rear
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Sealed Modular Wiring Harness
– Spare Tire Mount (Front)
– Radial Tires

Specifications:

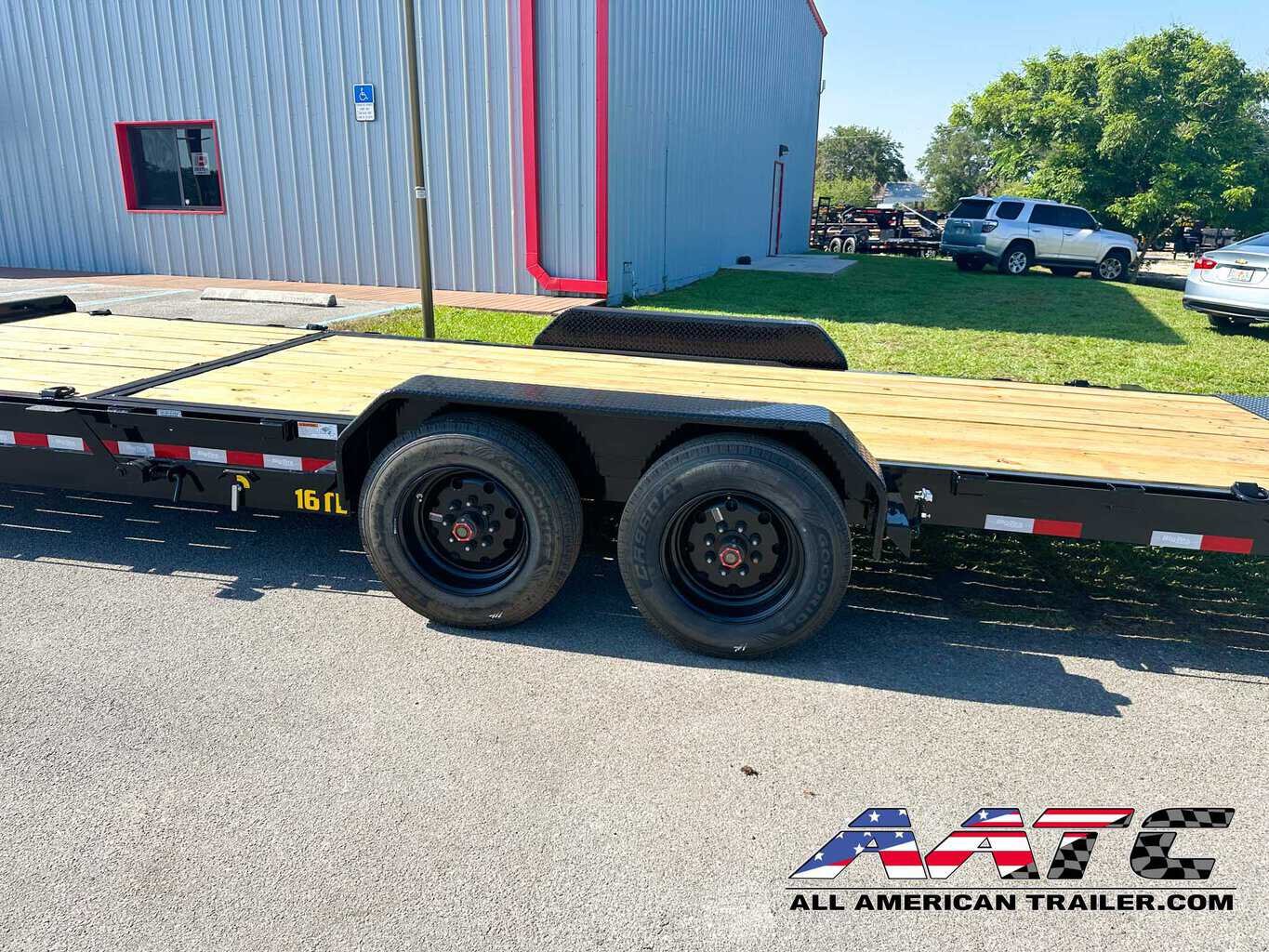

AXLE: (2) 8,000# EZ Lube w/Electric Brakes
JACK: 12,000# Drop Leg Jack-Side Wind
TIRE: ST215/75 R-17.5 Load Range H
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 6″ Channel
WHEEL: 17.5″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 8″ Channel Fold Back
COUPLER: Adjustable 14K Cast 2-5/16″
FENDERS: 9″ x 72″ Double Square Brake Diamond Plate (Removable)
UPRIGHTS: NONE
G.V.W.R.: 17,500#
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: TORSION
CROSSMEMBERS: 3″ Channel, 3″ Sq. Tube
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL: Fabricated Front Stop Rail
G.A.W.R. (Ea. Axle): 8,000#
