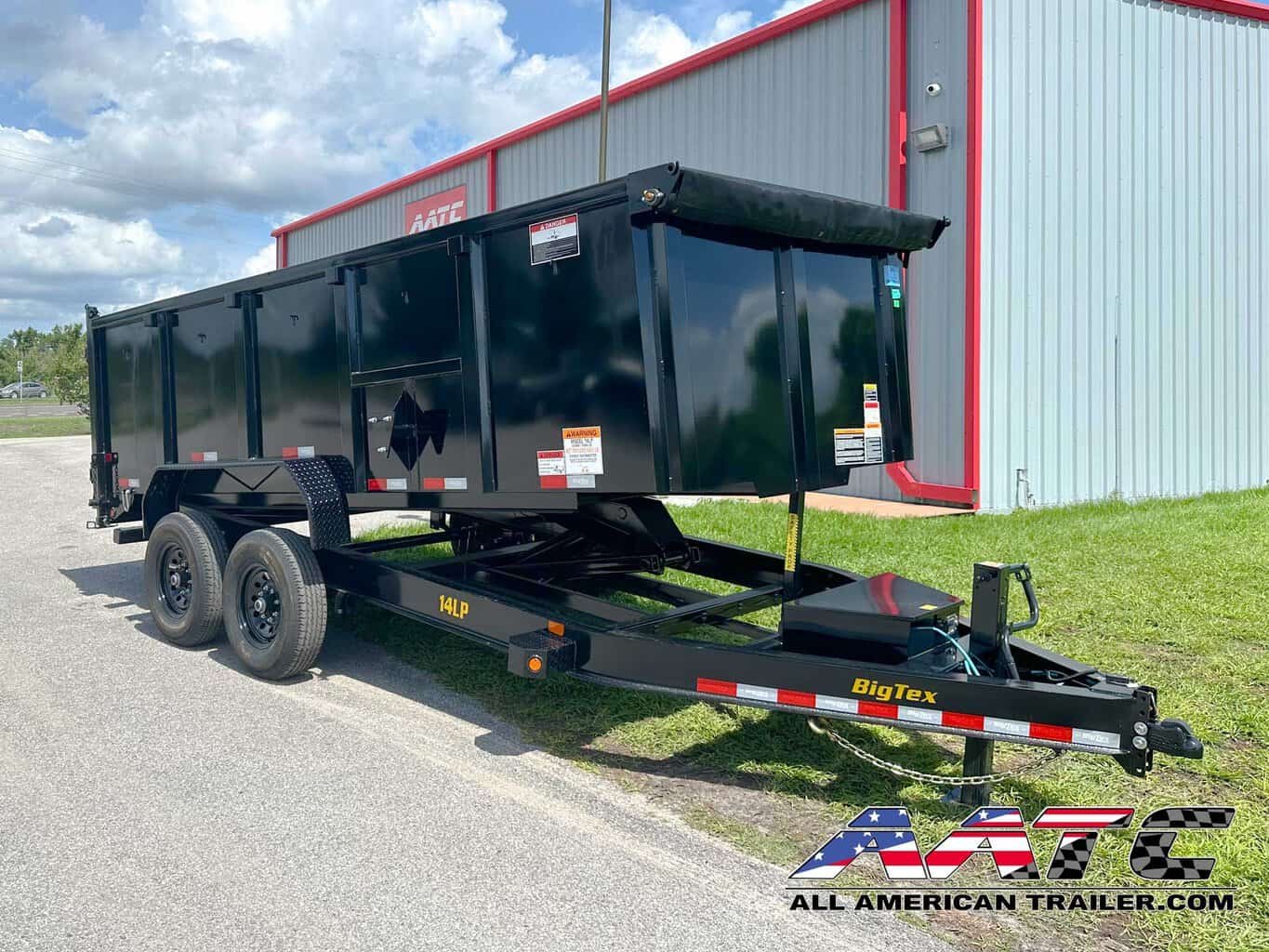

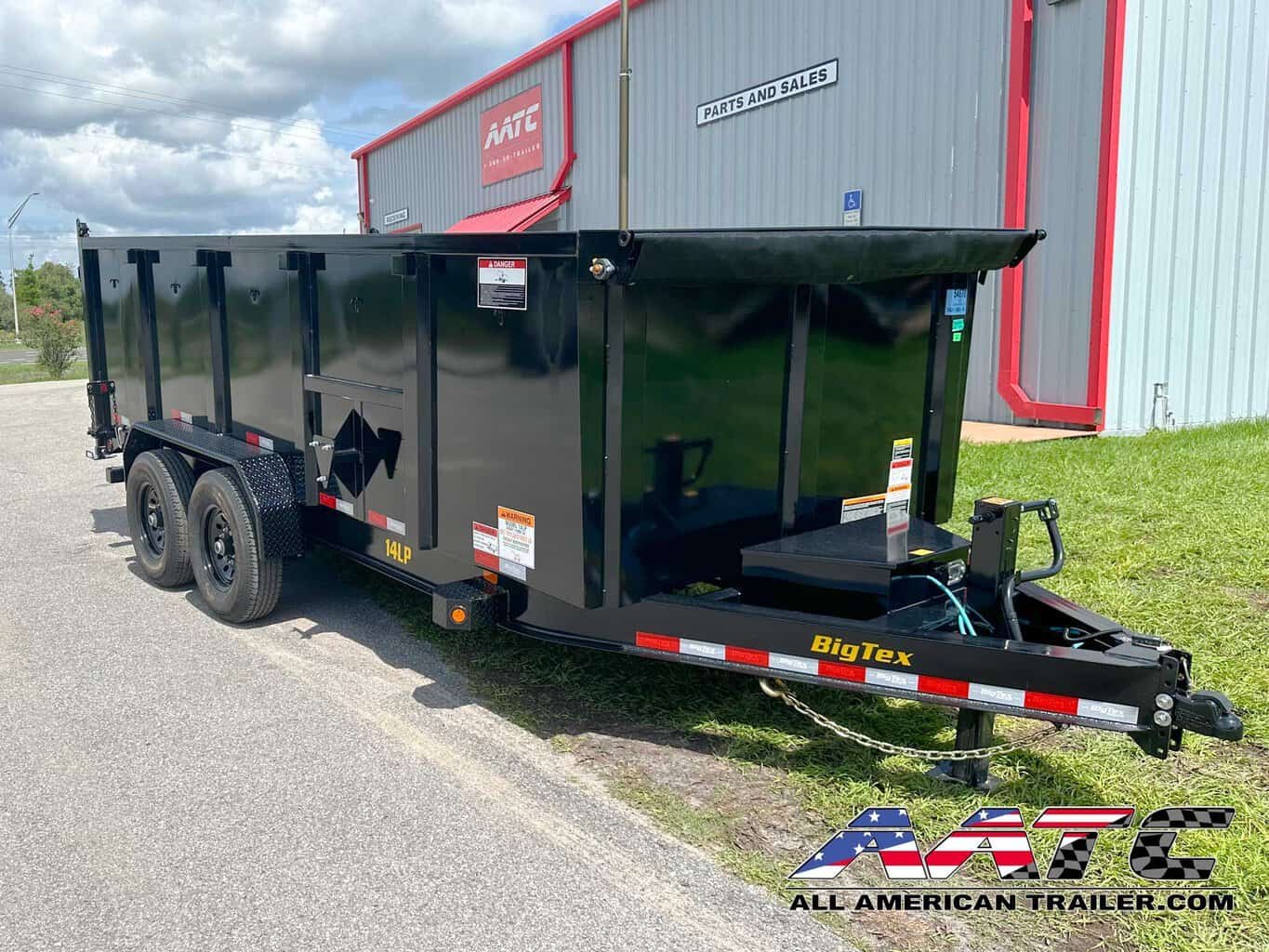

14LP-16-P4 BIG TEX 16′ DUMP TRAILER 4′ SIDE 7 TON 14,000 GVWR 7X16

Standard Features:
– Adjustable 2-5/16″ Cast Coupler in Channel
– 12,000# Spring-Loaded Drop-Leg Jack
– Lockable Pump & Battery Box Mounted in Front of Bed

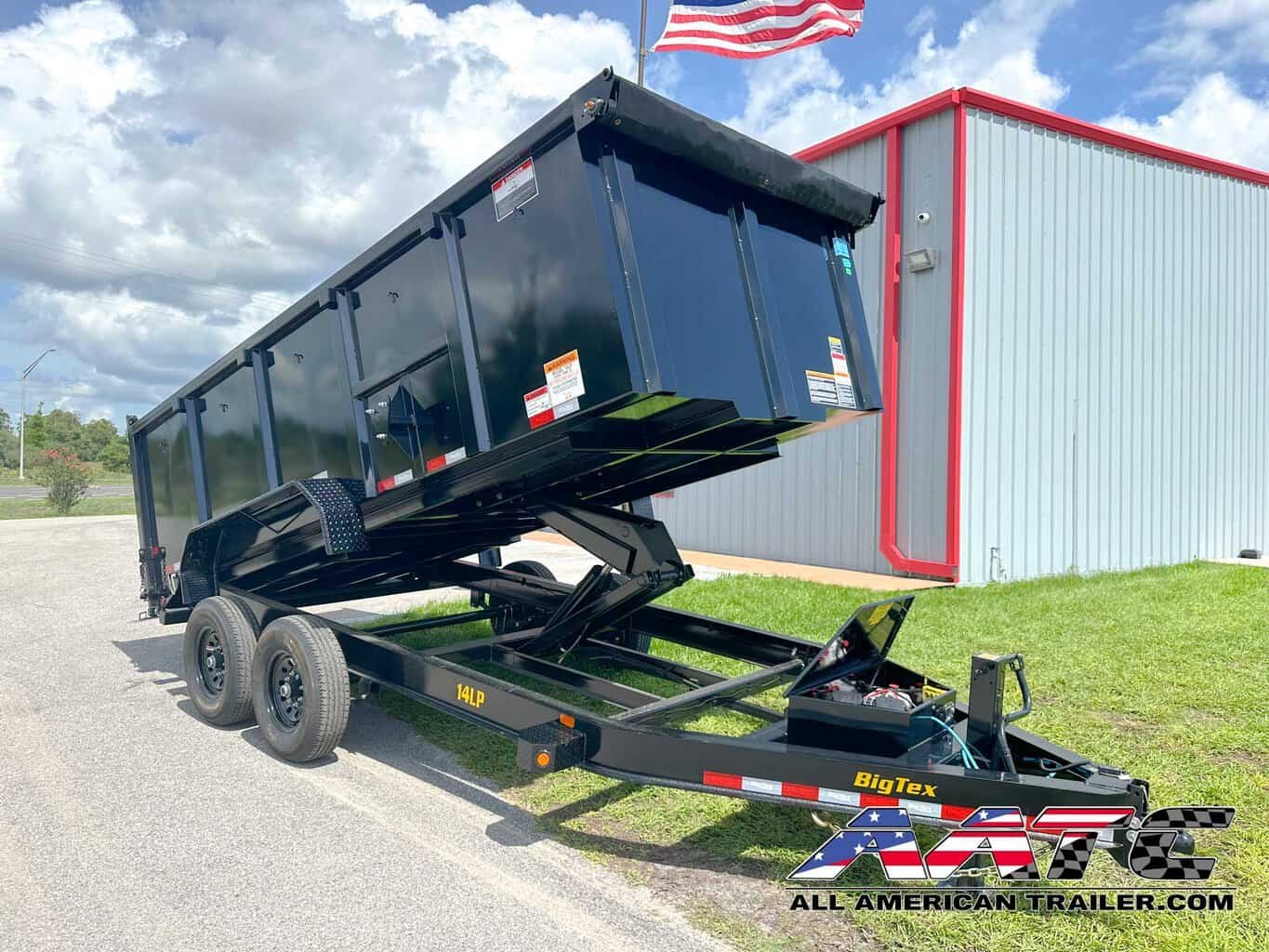

– Self Contained Electric/Hydraulic Scissor Hoist
– 2″ Square Tubing Top Rail
– 24″ Tall, 12-Gauge Steel Sides
– 10-Gauge Steel Floor
– (4) 1/2″ D-Rings Inside Bed to Secure Equipment
– Combo-Style Rear Gate
– Lippert Brand Axles
– Drop Axles for Ultra-Low 24″ Deck Height
– EZ Lube Hubs
– Nev-R-Adjust Electric Brakes on All Hubs
– Diamond Plate Fenders
– 8″ I-Beam Frame w/ Integrated Tongue
– Fully Formed Front Shroud for Tarp
– J-Hooks on Sides & Rear for Tarp Control
– Stake Pockets Along Sides
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Protected Wiring
– Complete Brake Away System
– 110V On-Board Battery Charger (5 Amp)
– 12V Interstate Battery Included
– Radial Tires
– Spring-Loaded Door Hold-Backs
– Spare Tire Mount
– Sealed wire harnesses

Specifications:
AXLE: (2) 7,000# Drop Axles w/ EZ Lube Hubs & Elec. Brakes
JACK: 7,000# Drop Leg- Top Wind
TIRE: ST235/80 R-16 Load Range E
FLOOR: 10 Gauge Smooth Steel
FRAME: 8″ I Beam, 10#
WHEEL: 16″ x 6″; HD Black Mod 8 Bolt
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 8″ I Beam, 10#
COUPLER: 2-5/16″ Adjustable Cast
G.A.W.R. (Ea. Axle): 7,000#
G.V.W.R.: 14,000#
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Mulit-Leaf Spring w/ Equalizer
FENDERS: 9″ x 72″ Double Square Broke Diamond Plate
CROSSMEMBERS: 3″ Channel & 4″ x 2″ Rect. Tubing
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
