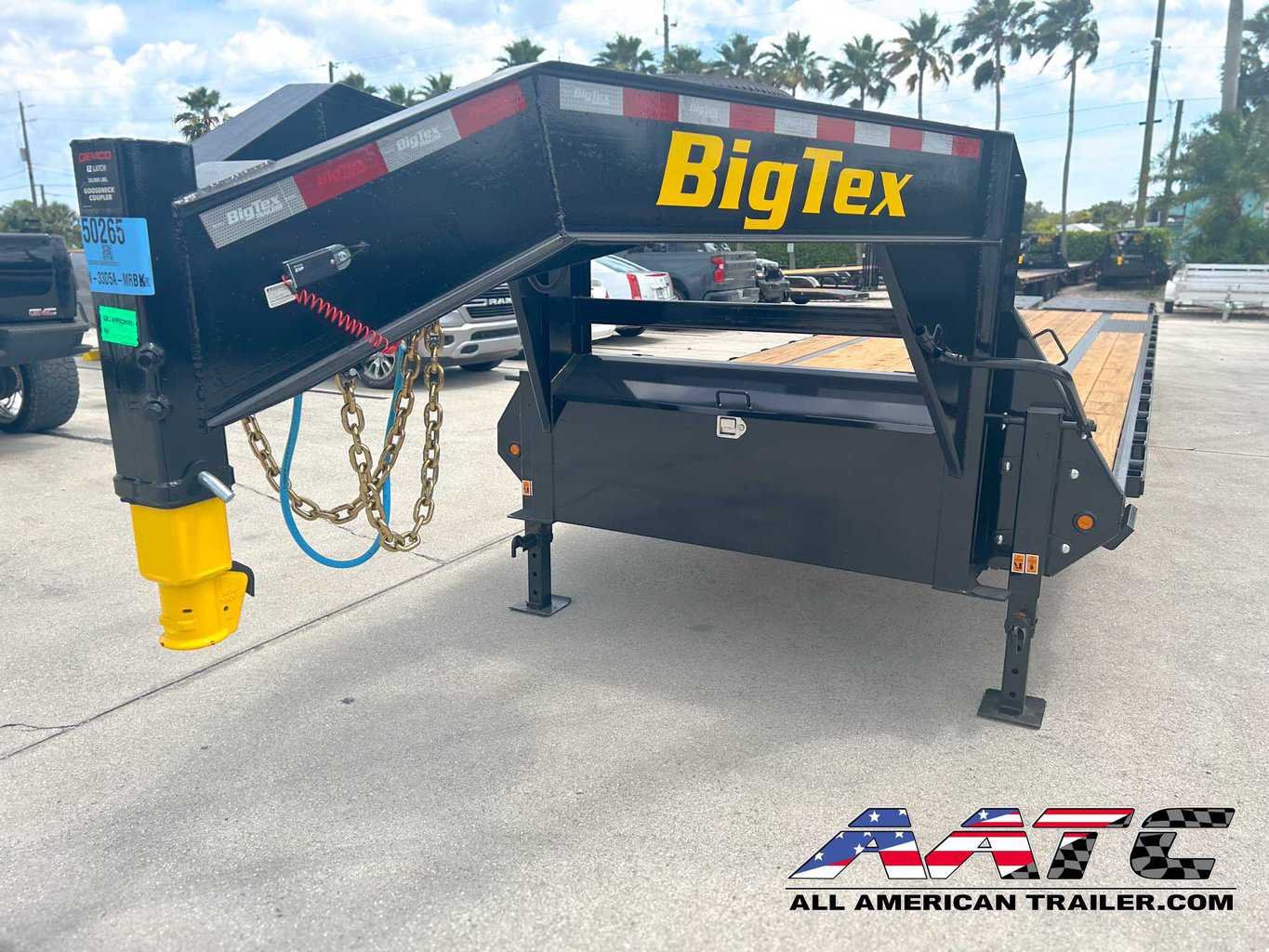

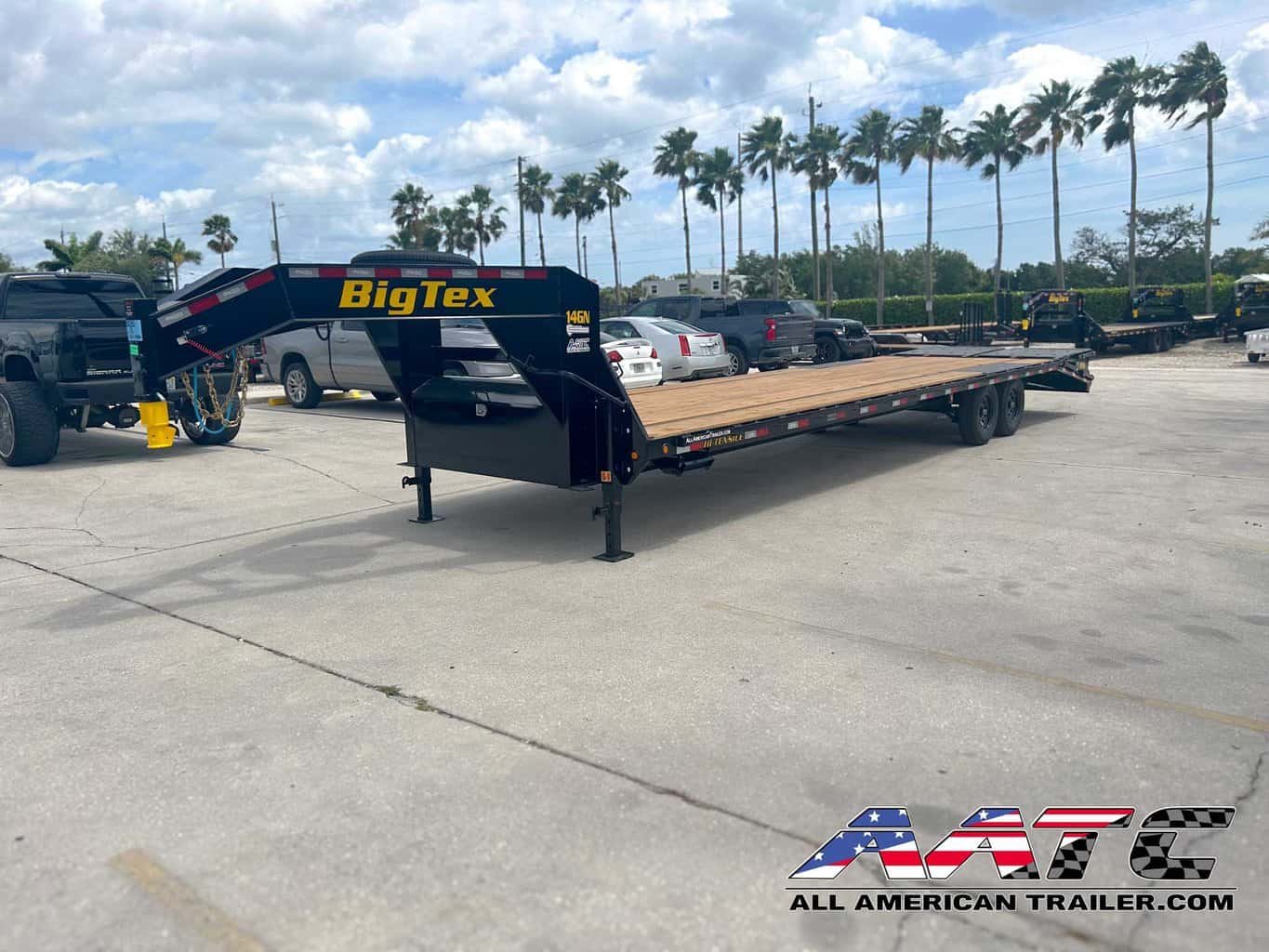

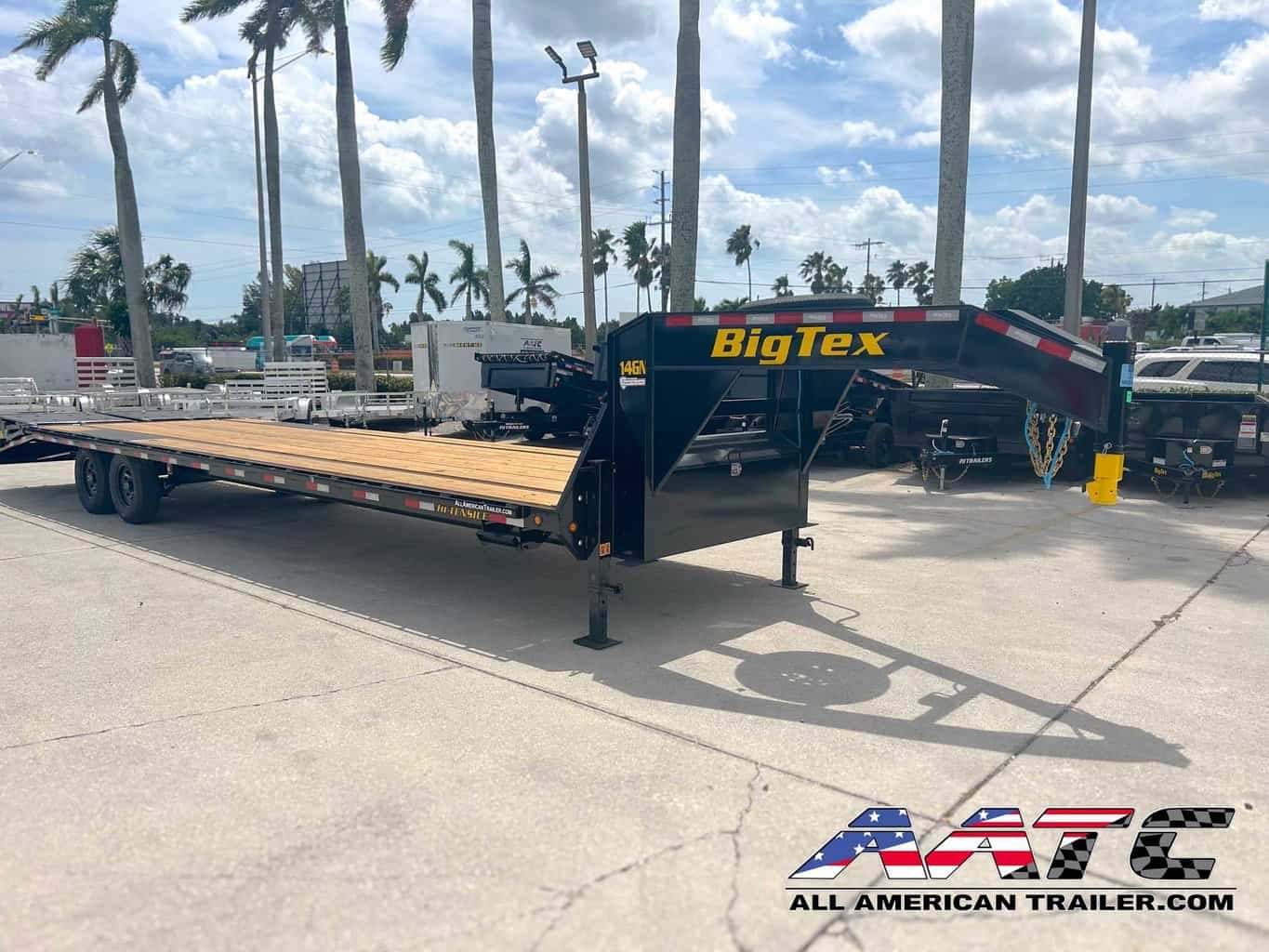

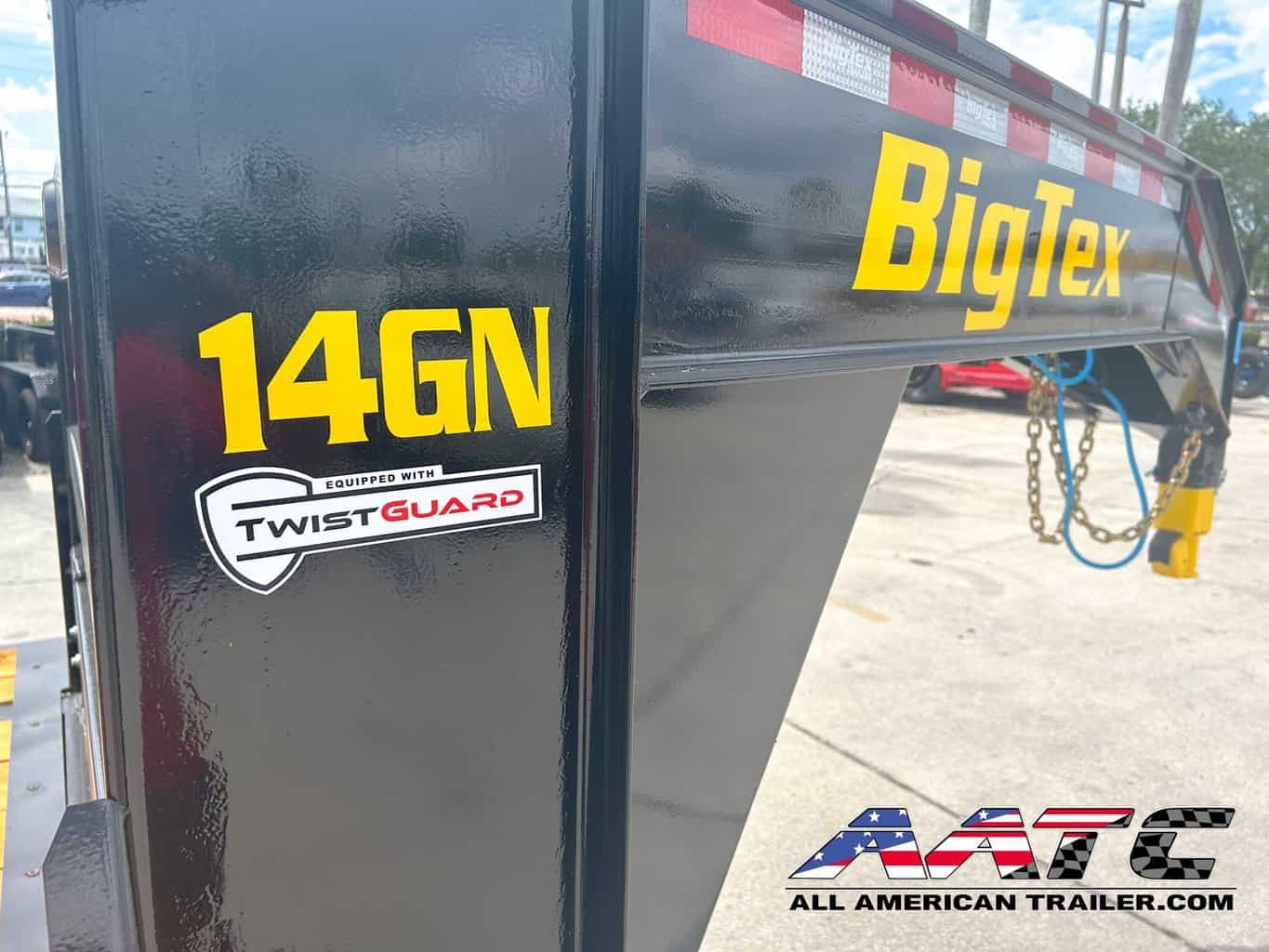

14GN-28+5MR BIG TEX 33′ GOOSENECK TRAILER 15,900 GVWR 8 TON MEGA RAMPS (CAN BE DERATED TO NON CDL)

Standard Features:
– 2-5/16″ Ball Adjustable Pipe Coupler
– Dual 12,000# Drop Leg Jacks- (Bolted On)
– 102″ Overall Width
– Low Profile Bed, Pierced- Beam Frame
– Lockable Toolbox Between GN Uprights
– (2) Side Bed Steps & Handles
– 3/8″ Heavy Duty Rub Rail
– Tie Down Pockets Along Sides, 24″ On Center
– 1-1/4″ Pipe Chain Spools Between Tie Down Pockets
– E-Z Lube Hubs
– Dexter Brand Axles
– Nev-R-Adjust Electric Brakes on All Hubs
– Cambered Axles
– Grommet Mount Sealed Lighting
– L.E.D. Lighting Package
– Modular Sealed Wiring Harness

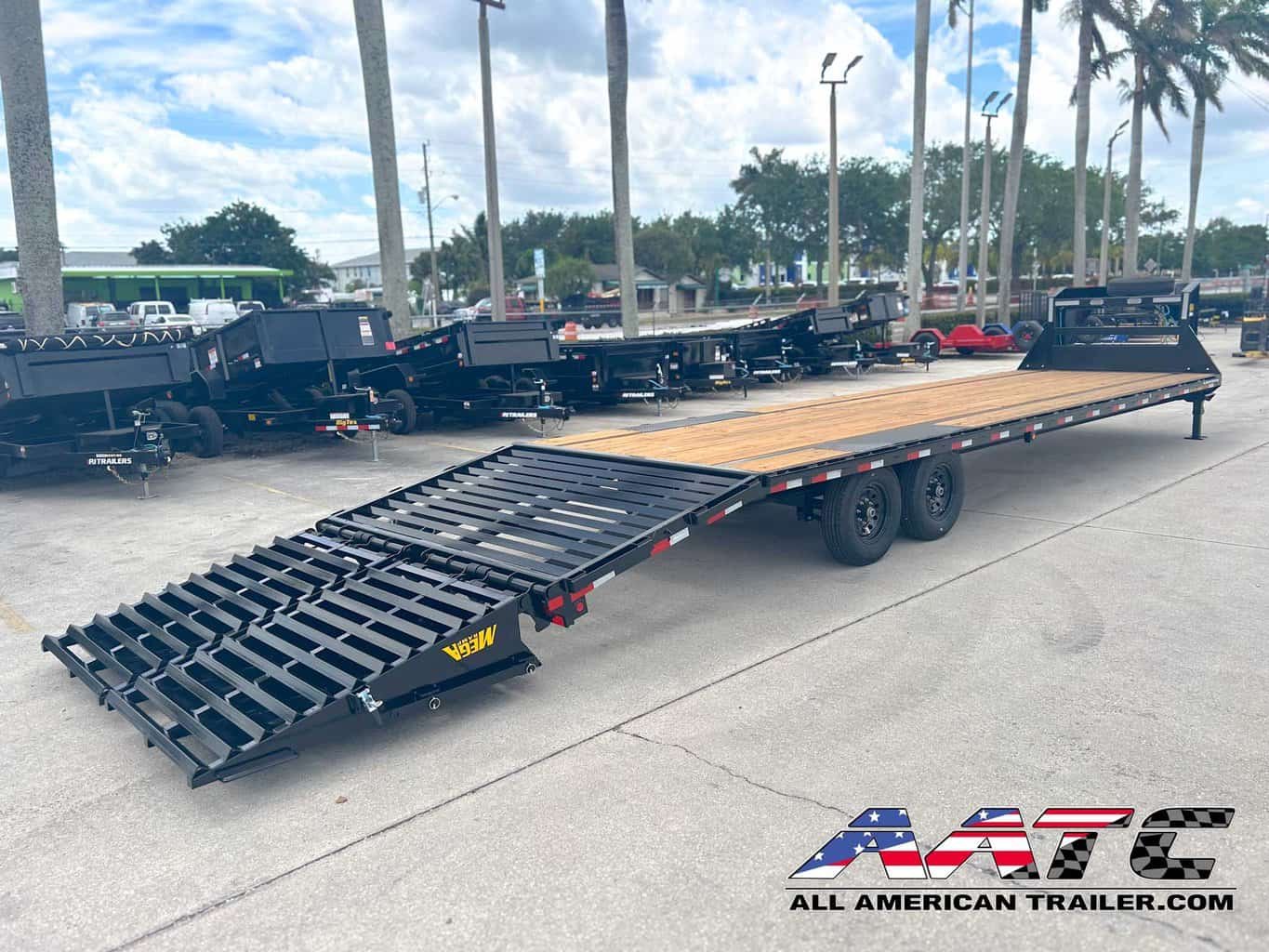

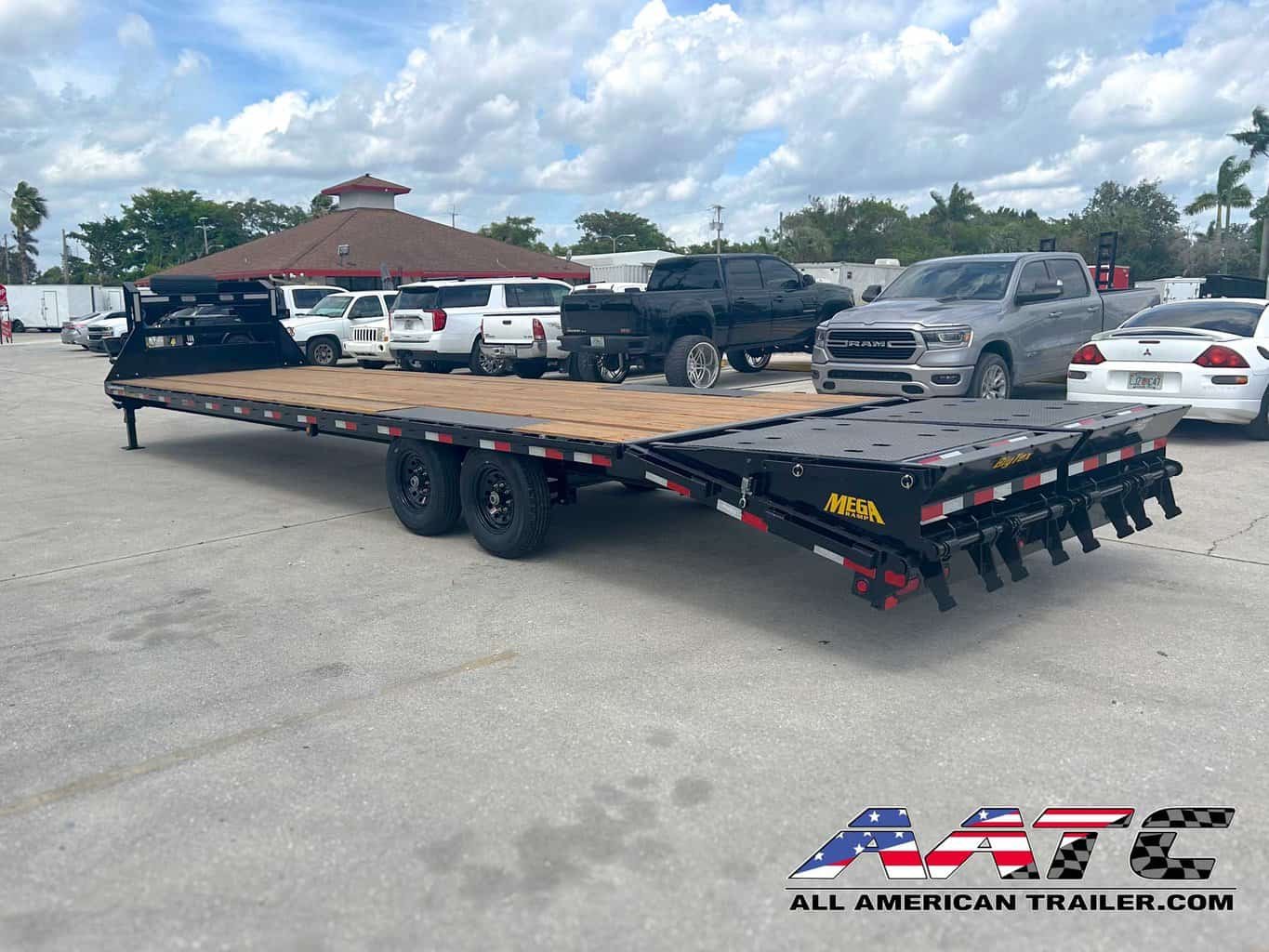

– 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
– Complete Break-A-Way System w/Charger

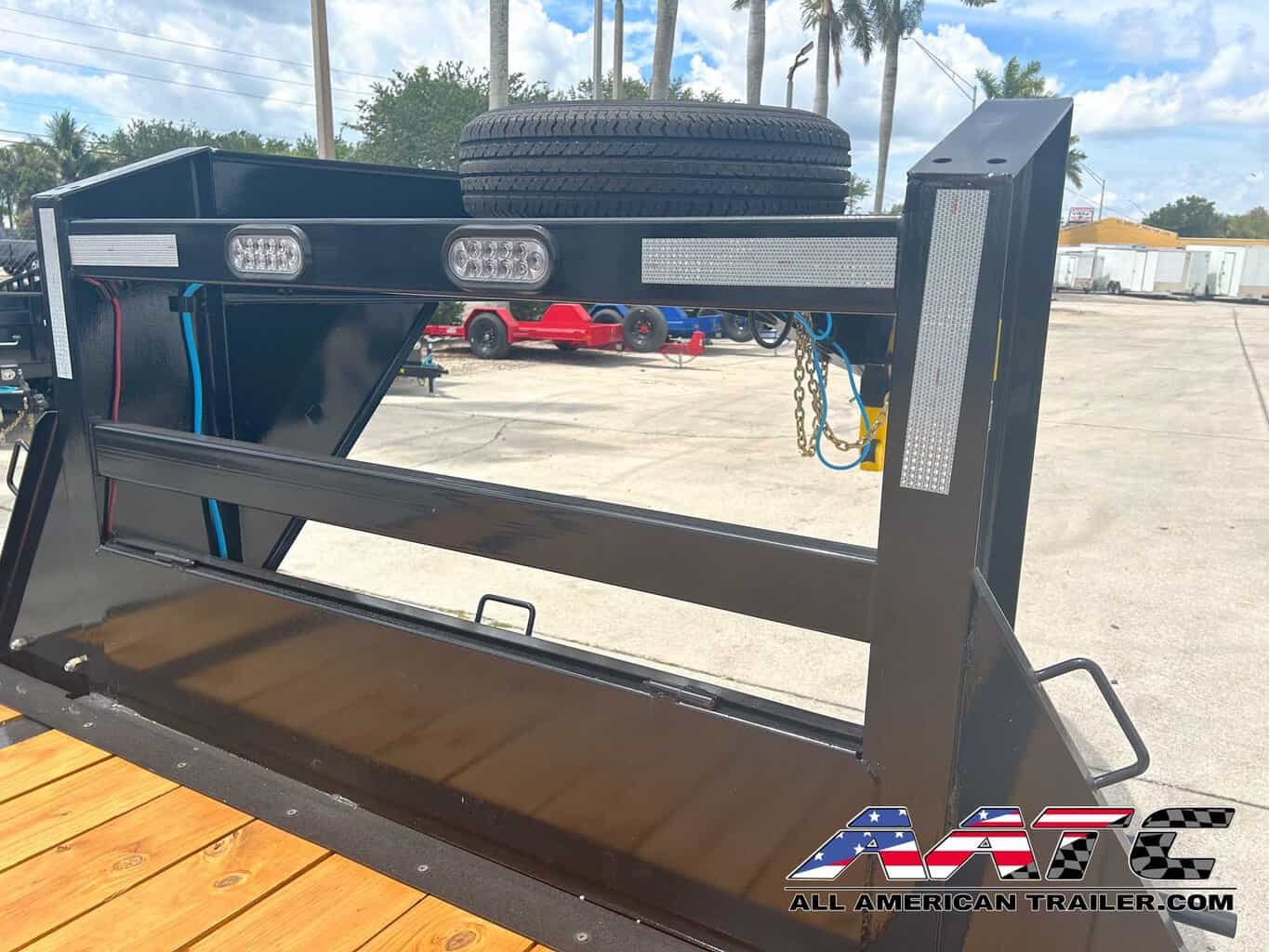

– Spare Tire Mount (Top of Neck)
– Radial Tires
– Spare Tire & Wheel – Standard Equipped

Specifications:
AXLE: (2) 7,000# E-Z Lube w/Electric Brakes
JACK: Dual 12,000# Drop Leg Side Wind (Bolted On)
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2″ Treated Pine or Douglas Fir*
FRAME: 12″ I Beam
WHEEL: 16″ x 6″; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER: 2-5/16″ Ball Adjustable Pipe
NECK: 12″ I Beam
G.V.W.R.: 15,900#
TOP RAIL: None
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SIDE RAILS: 5″ Channel w/Rub Rail, Tie Down Pockets on 24″ Centers, and Chain Spools
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3″ Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8″ Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle): 7,000#
